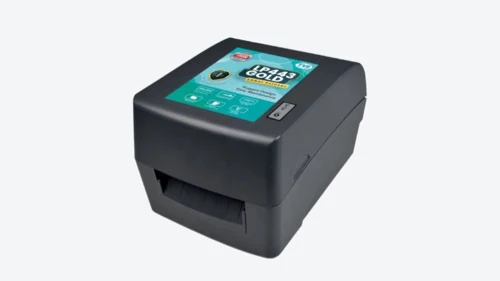

TVS-E LP 443 Gold Thermal Barcode Label Printer with 300 DPI Resolution, 6 IPS Printing Speed, 108mm Print Width, USB 2.0 and Serial Connectivity
₹15,599
The TVS-E LP 443 Gold Thermal Label Printer is a high-resolution desktop barcode printer designed for retail, logistics, warehouses, manufacturing and inventory management. Featuring 300 DPI resolution, printing speeds of up to 6 IPS and a maximum print width of 108mm, it delivers detailed text and barcode labels. Supporting both Direct Thermal and Thermal Transfer printing, the printer offers flexibility for different labeling applications. Equipped with USB 2.0 and Serial connectivity, a 32-bit RISC CPU, 8MB SDRAM and 8MB Flash memory, it supports efficient printing operations. Its adjustable media sensors, support for ribbons up to 300m and compact desktop design make it suitable for commercial label printing.
Product Enquiry
Interested in this product? Fill out the form below.
TVS-E LP 443 Gold Thermal Label Printer
The TVS-E LP 443 Gold Thermal Label Printer is a versatile desktop barcode and label printer designed for retail businesses, warehouses, logistics, manufacturing units and inventory management applications.
Featuring a high 300 DPI print resolution, maximum printing speed of 6 inches per second (IPS) and 108mm print width, the TVS LP 443 Gold is suitable for printing detailed product labels, shipping labels, barcode labels and commercial identification labels.
The printer supports both Direct Thermal and Thermal Transfer printing technologies, providing flexibility for applications requiring compatible thermal paper or thermal transfer ribbons.
Equipped with USB 2.0 and Serial connectivity, a 32-bit RISC processor, adjustable media sensors and support for various barcode formats, it is designed for efficient commercial labeling operations.
Key Features
1. High-Resolution 300 DPI Printing
The TVS-E LP 443 Gold delivers 300 DPI (12 dots/mm) resolution for clear text, fine graphics and detailed barcode printing.
Its high-resolution output makes it suitable for labels containing smaller text and detailed product information.
2. Fast Printing Speed – Up to 6 IPS
The printer supports a maximum printing speed of 6 inches per second, helping businesses print labels efficiently for shipping, inventory and product identification tasks.
3. Dual Printing Technology
The TVS LP 443 Gold supports:
- Direct Thermal Printing: Prints on compatible heat-sensitive paper without ink, toner or ribbons.
- Thermal Transfer Printing: Uses a compatible ribbon to print on suitable label media.
This provides flexibility for different barcode labeling requirements.
4. Wide 108mm Print Width
With a maximum printing width of 108mm, the printer supports 4-inch-class barcode labels.
It accommodates media widths ranging from 19mm to 120mm, making it suitable for various compatible label formats.
5. USB 2.0 and Serial Connectivity
The TVS LP 443 Gold offers:
- USB 2.0
- Serial Interface
These connections allow integration with compatible computers and business labeling systems.
6. Advanced Processor and Memory
The printer features:
- 32-bit RISC CPU
- 8MB SDRAM
- 8MB Flash Memory
These specifications support internal label processing and printing operations.
7. Multiple Barcode Formats
The printer supports popular 1D and 2D barcode formats.
1D barcode support includes:
- Code 39
- Code 93
- Code 128
- UPC-A and UPC-E
- EAN-8 and EAN-13
- Interleaved 2 of 5
- Codabar
- Matrix 25
- MSI
- Plessey
- POSTNET
2D barcode support includes:
- PDF417
- MaxiCode
- QR Code
- Aztec
8. Adjustable Media Sensors
The printer includes:
- Movable Transmission Sensor
- Movable Reflection Sensor
These sensors support accurate media detection and positioning for compatible labels.
9. Multiple Paper Types
The TVS LP 443 Gold supports:
- Marked Paper
- Black-Marked Paper
- Folding Paper
- Punched Paper
It accommodates paper thicknesses of 0.06–0.20mm.
10. Thermal Transfer Ribbon Support
The printer supports thermal transfer ribbons with:
- Maximum Ribbon Width: 110mm
- Maximum Ribbon Length: 300m
- Ribbon Core Inner Diameter: 25.4mm
11. Compact Desktop Design
The TVS LP 443 Gold measures 210 × 280 × 185mm (W × D × H) and weighs approximately 2.1kg, making it suitable for desktop barcode printing workstations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TVS Electronics (TVS-E) |
| Model | LP 443 Gold |
| Ordering Part Number | 3006300003 |
| Product Type | Thermal Barcode Label Printer |
| Printing Method | Direct Thermal / Thermal Transfer |
| Print Resolution | 300 DPI (12 dots/mm) |
| Maximum Print Speed | 6 IPS |
| Maximum Print Width | 108mm |
| Processor | 32-bit RISC CPU |
| SDRAM | 8MB |
| Flash Memory | 8MB |
| Connectivity | USB 2.0 + Serial |
| Additional Listed Interface | DC 5V Connectivity, as shown in source |
| Media Sensors | Movable Transmission and Reflection Sensors |
| Media Types | Marked, Black-Marked, Folding, Punched |
| Media Width | 19–120mm |
| Media Thickness | 0.06–0.20mm |
| Maximum Paper Roll Outer Diameter | 127mm |
| Paper Roll Core Inner Diameter | 25/38mm |
| Maximum Ribbon Width | 110mm |
| Maximum Ribbon Length | 300m |
| Ribbon Core Inner Diameter | 25.4mm |
| Control Button | 1 |
| Indicator Lights | 2 LEDs |
| Input Power | AC 110–240V, 50/60Hz |
| Output Power | DC 24V, 2.5A |
| Operating Temperature | 5–45°C |
| Operating Humidity | 20–90% RH, Non-Condensing |
| Storage Temperature | -40–60°C |
| Storage Humidity | 20–93% RH, Non-Condensing |
| Dimensions (W × D × H) | 210 × 280 × 185mm |
| Weight | Approximately 2.1kg |
| Warranty | Not Specified |
