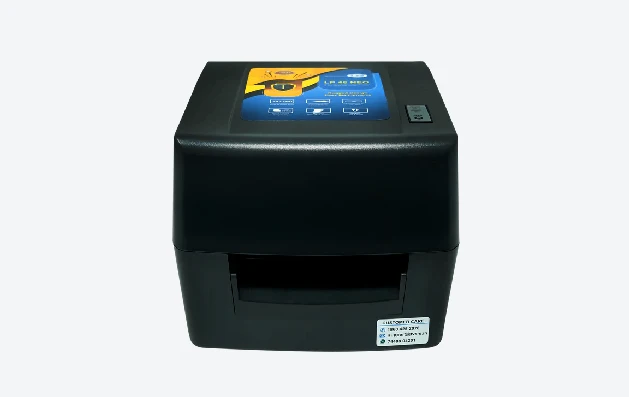

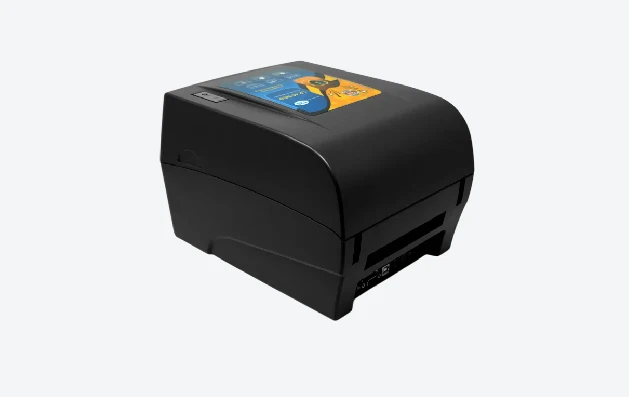

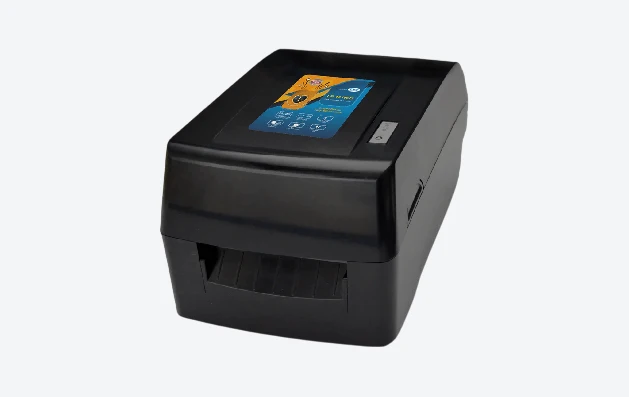

TVS-E LP 46 Neo Thermal Label Printer (USB / Serial)

The TVS-E LP 46 Neo Thermal Label Printer is a versatile desktop barcode and label printing solution designed for retail businesses, warehouses, logistics companies, manufacturing units and inventory management applications.

Featuring 203 DPI resolution, a maximum printing speed of 150mm per second and a 108mm maximum print width, the TVS LP 46 Neo produces clear barcode labels, shipping labels, product identification labels and business labeling materials.

The printer supports both Direct Thermal and Thermal Transfer printing technologies, providing flexibility for different labeling requirements.

With USB and Serial connectivity, a 32-bit RISC processor and adjustable media sensors, the TVS-E LP 46 Neo supports integration into compatible billing, barcode printing and inventory systems.

Key Features

1. Dual Printing Technology

The TVS LP 46 Neo supports two thermal printing methods:

• Direct Thermal Printing: Uses compatible heat-sensitive media without requiring an ink cartridge, toner or ribbon.
• Thermal Transfer Printing: Uses a compatible thermal transfer ribbon to produce printed labels on suitable media.

This dual printing capability makes the printer useful for different barcode and product labeling applications.

2. High-Quality 203 DPI Resolution

Featuring 203 DPI print resolution, the TVS LP 46 Neo delivers clear text, graphics and barcodes for routine commercial labeling requirements.

3. Fast Printing Speed – 150mm/s

The printer supports a maximum printing speed of 150mm per second, helping businesses print labels efficiently for retail, inventory, shipping and warehouse operations.

4. Maximum Print Width of 108mm

With a maximum printing width of 108mm, the printer supports standard 4-inch-class labels.

It accommodates paper widths ranging from 19mm to 120mm, providing flexibility for compatible labels of different sizes.

5. USB and Serial Connectivity

The TVS-E LP 46 Neo features:

• USB Interface
• Serial Interface

These connections allow integration with compatible desktop computers and barcode printing applications.

6. Advanced 32-bit RISC Processor

The printer features a 32-bit RISC CPU designed to handle internal printing operations and supported barcode commands.

7. Barcode Printing Support

The TVS LP 46 Neo supports various 1D and 2D barcode formats.

Supported 1D barcodes include:

• Code 39
• Code 93
• Code 128
• UPC-A and UPC-E
• EAN-8 and EAN-13
• Interleaved 2 of 5
• Codabar
• Matrix 25
• POSTNET
• UCC/EAN

Supported 2D barcodes include:

• PDF417
• MaxiCode
• QR Code (listed as OR Code in the supplied specifications; verify the exact supported format)

8. Adjustable Media Sensors

The printer includes:

• Removable Transmission Sensor
• Removable Reflection Sensor

These sensors assist with media detection and label positioning.

9. Multiple Media Types

The TVS LP 46 Neo supports:

• Marked Paper
• Black Marked Paper
• Folding Paper
• Notched Paper

The supported media width ranges from 19mm to 120mm, with a stated thickness of 0.06–0.20mm.

10. Thermal Transfer Ribbon Support

For thermal transfer printing, the supplied specifications list:

• Maximum Ribbon Width: 100mm
• Maximum Ribbon Length: 300mm, as provided
• Ribbon Core Inner Diameter: 25.4mm

Verify ribbon compatibility and the stated length unit before purchasing supplies.

11. Compact Desktop Design

The TVS-E LP 46 Neo measures 210 × 280 × 185mm (W × D × H) and weighs approximately 2.1kg.

Its compact desktop design is suitable for warehouse workstations, retail counters and commercial labeling environments.

Technical Specifications
