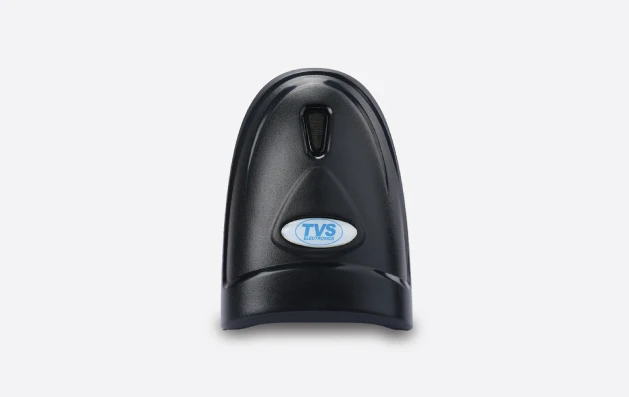

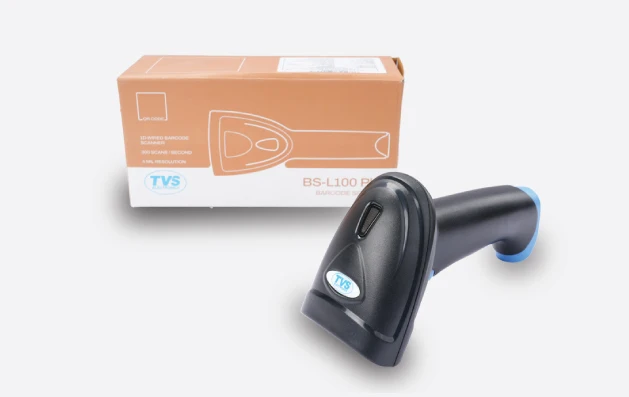

TVS-E BS-L100 Plus Handheld 1D Barcode Scanner

The TVS-E BS-L100 Plus Handheld 1D Barcode Scanner is a high-speed laser barcode scanning device designed for retail stores, supermarkets, warehouses, pharmacies, logistics operations and commercial POS billing environments.

Featuring a 650nm visible laser diode, a fast scanning speed of 300 scans per second and USB connectivity, the TVS BS-L100 Plus provides an efficient solution for reading supported 1D barcodes.

Its lightweight construction, compact design and durable ABS+PC housing make it suitable for regular handheld scanning applications.

Key Features

1. High-Speed 1D Barcode Scanning

The TVS BS-L100 Plus delivers a scanning speed of 300 scans per second, helping businesses process barcode information quickly during billing, inventory checks and stock management.

2. 650nm Laser Scanning Technology

Equipped with a 650nm visible laser diode, the scanner uses single-line laser technology to read compatible 1D barcodes.

3. USB Connectivity

The scanner includes a USB interface, enabling connection to compatible computers and POS systems.

Its wired connection makes it suitable for fixed billing counters and workstation-based barcode scanning.

4. Multiple 1D Barcode Support

The TVS BS-L100 Plus supports common 1D barcode formats, including:

• EAN-8 and EAN-13
• UPC-A and UPC-E
• Code 39
• Code 93
• Code 128
• Codabar
• Industrial 2 of 5
• Interleaved 2 of 5
• Matrix 2 of 5
• MSI
• China Post Code

This makes the scanner suitable for different retail and inventory barcode applications.

5. Fast and Accurate Scanning

The scanner offers:

• Scanning Speed: 300 scans/second
• Scanning Depth: 0–280mm
• Minimum Print Contrast: Greater than 20%
• Precision: Greater than 4 mil, as specified
• Error Rate: Less than 1 in 5 million

Actual scanning performance depends on barcode size, printing quality and environmental conditions.

6. Multiple Scanning Angles

The TVS-E BS-L100 Plus supports the following scanning angles:

• Yaw: 55°
• Rotation: 30°
• Pitch: 65°

These specifications provide flexibility when scanning barcodes from different orientations.

7. Durable Design

The scanner features an ABS+PC housing and is specified to withstand multiple drops from 1.5 metres.

Its IP51 rating provides a stated level of dust and water protection for suitable indoor environments.

8. Compact and Lightweight Construction

The TVS BS-L100 Plus measures 90 × 66 × 173mm and weighs approximately 129.5g.

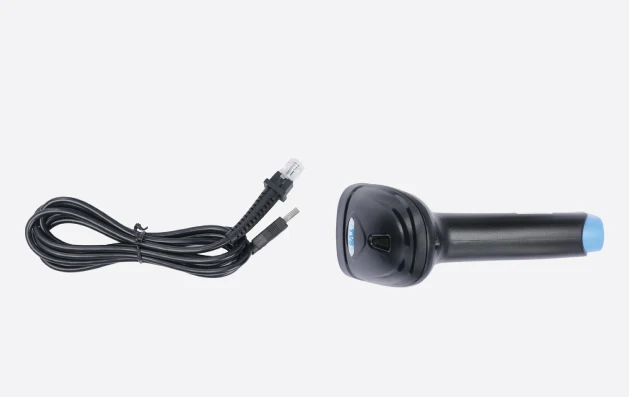

The included cable length is listed as 2 metres, providing convenient reach for desktop and POS counter applications.

9. Low Power Consumption

The scanner operates on DC 5V ±1%, with a specified operating current of 85mA.

10. Suitable for Commercial Applications

Its high scanning speed, USB connection and supported 1D barcode formats make the TVS BS-L100 Plus suitable for everyday commercial scanning workflows.
