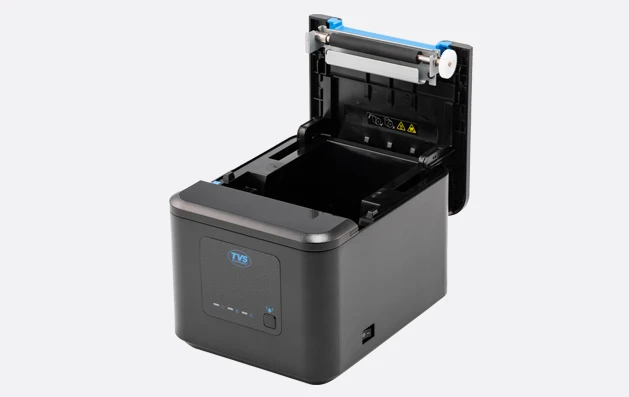

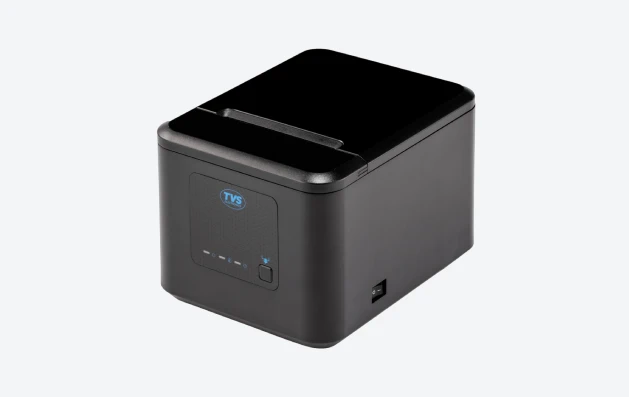

TVS-E RP 3230 3 Inch Thermal Receipt Printer (USB Type-B / Ethernet / Serial)

The TVS-E RP 3230 3 Inch Thermal Receipt Printer is a high-performance Direct Thermal POS Billing Printer designed for retail stores, supermarkets, restaurants, hotels, pharmacies and commercial billing counters. Featuring a fast printing speed of up to 230mm per second, 203 DPI resolution and automatic paper cutting, this printer offers efficient and professional receipt printing for everyday business operations.

Equipped with USB Type-B, Ethernet and Serial connectivity, the TVS-E RP 3230 provides flexible integration with compatible Point-of-Sale (POS) systems. Its compact design, durable thermal print head and support for 58mm and 80mm thermal paper make it a practical solution for commercial receipt printing.

Key Features

1. High-Speed Printing – Up to 230mm/s

The TVS-E RP 3230 delivers a maximum printing speed of 230mm per second, allowing businesses to print receipts quickly and reduce customer waiting times at busy billing counters.

2. High-Quality 203 DPI Printing

Featuring 203 DPI (8 dots/mm) resolution, the printer produces clear text, numbers, barcodes and graphics for professional billing applications.

It supports print widths of 72mm and 48mm, depending on the selected paper configuration.

3. Direct Thermal Printing Technology

The TVS-E RP 3230 uses Direct Thermal Printing Technology, eliminating the need for ink cartridges, toner and ribbons.

This technology helps reduce consumable requirements and simplifies daily printer maintenance.

4. Automatic Paper Cutter

Equipped with an automatic cutter, the printer provides convenient receipt separation after printing.

The cutter has a stated lifespan of 1.5 million cuts, making it suitable for regular commercial billing operations.

5. Multiple Connectivity Options

The TVS-E RP 3230 supports multiple interfaces for easy integration with compatible POS hardware and billing software.

Standard connectivity:

• USB Type-B
• Ethernet
• Serial
• Cash Drawer Interface

Optional connectivity:

• USB + Wi-Fi + Bluetooth

This flexibility makes the printer suitable for various billing counter and business networking environments.

6. Supports 58mm and 80mm Thermal Paper

The printer supports thermal paper widths of 79.5 ± 0.5mm and 57.5 ± 0.5mm.

Its maximum paper roll diameter is 83mm, allowing convenient paper loading for routine receipt printing.

7. Barcode and QR Code Printing

The TVS-E RP 3230 supports popular barcode formats, making it useful for retail billing and transaction receipts.

Supported 1D barcodes: UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN8, EAN13, Interleaved 2 of 5 and Codabar.

Supported 2D barcodes: QR Code and PDF417.

8. Durable Print Head and Cutter

The printer is designed for commercial use with the following stated durability ratings:

• Thermal Print Head Life: 100km
• Automatic Cutter Life: 1,500,000 Cuts
• RAM: 4MB
• Flash Memory: 4MB

These features support regular billing and receipt printing requirements.

9. Intelligent Sensors and Buzzer

The printer includes an internal buzzer and multiple sensors to assist with operation and maintenance.

Standard sensors:

• Paper End Detection
• Cover Open Detection
• Cutter Jam Detection
• Print Head Over-Temperature Detection

An optional black mark sensor and kitchen bell are also listed.

10. Compact Design

With dimensions of 140 × 179 × 117mm and a weight of approximately 0.916kg, the TVS-E RP 3230 is suitable for billing counters where space is limited.

Technical Specifications
