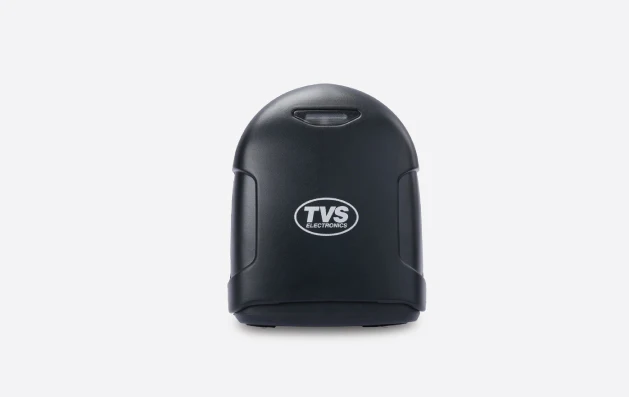

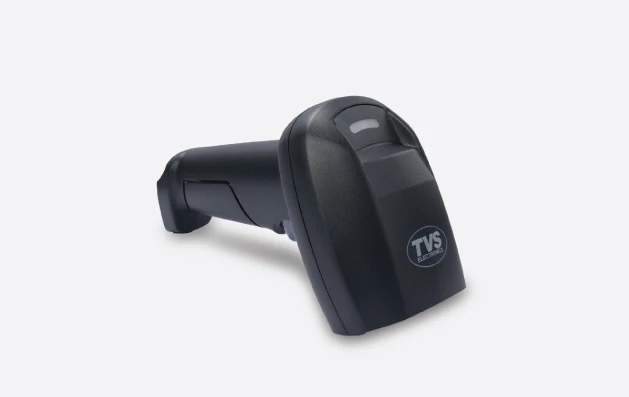

TVS-E BS-i201G Lite 2D Wired USB Barcode Scanner with 640×480 Image Sensor, QR Code Support and IP54 Protection
₹2,799
The TVS-E BS-i201G Lite 2D Wired Barcode Scanner is a handheld USB barcode reader designed for retail shops, supermarkets, warehouses, pharmacies and POS billing systems. Equipped with a 640 × 480 pixel image sensor, it reads supported 1D and 2D barcodes, including QR Code, PDF417, Data Matrix and Code 128. Featuring red LED illumination, a wide scanning field and motion tolerance above 0.4m/s, it supports efficient everyday barcode scanning. Its USB connectivity, IP54-rated housing and stated 1.2-metre drop resistance make it practical for commercial applications. The scanner offers a compact design for regular inventory management and retail billing operations.
Product Enquiry
Interested in this product? Fill out the form below.
TVS-E BS-i201G Lite 2D Wired Barcode Scanner
The TVS-E BS-i201G Lite 2D Wired Barcode Scanner is a handheld barcode reader designed for retail stores, supermarkets, pharmacies, warehouses, inventory management and Point-of-Sale billing applications.
Featuring a 640 × 480 pixel imaging sensor, support for standard 1D and 2D barcode formats and USB connectivity, the TVS BS-i201G Lite offers efficient barcode reading for compatible commercial applications.
Its red LED aiming and white or red LED illumination help with barcode capture, while its compact design and IP54-rated construction make it suitable for regular handheld use.
Key Features
1. Advanced 1D and 2D Barcode Scanning
The TVS-E BS-i201G Lite supports a variety of barcode formats commonly used in commercial operations.
Supported 1D barcodes include Code 39, Code 93, Code 128, UPC, EAN, Codabar, Interleaved 2 of 5, MSI and GS1 DataBar formats.
Supported 2D barcodes include QR Code, PDF417, Micro PDF417, Data Matrix, MaxiCode, Aztec and Han Xin.
2. 640 × 480 Pixel Imaging Sensor
The scanner features a 640 × 480 pixel image sensor that captures compatible barcode images for decoding.
This makes it suitable for different retail, inventory and transaction scanning applications.
3. USB Wired Connectivity
The scanner uses a USB interface, providing a wired connection to compatible POS terminals and computer systems.
This makes it suitable for fixed checkout counters and workstations.
4. Red LED Aiming and Illumination
The scanner is equipped with:
- Red LED aiming light
- White or red LED illumination
These features assist barcode positioning and image capture during scanning.
5. Motion Tolerance
With a stated motion tolerance of greater than 0.4m/s, the TVS BS-i201G Lite supports barcode reading while the scanner or target is moving within supported conditions.
6. Wide Scanning Angles
The scanner offers:
- Roll: 360°
- Pitch: ±65°
- Yaw: ±65°
These angles provide flexibility when positioning the scanner against barcodes.
7. QR Code and PDF417 Support
The scanner supports QR Code, PDF417, Data Matrix and other 2D formats, making it suitable for compatible payment codes, product labels and inventory applications.
Successful scanning depends on the barcode format, print quality, size and scanning conditions.
8. IP54 Protection Rating
The scanner has a stated IP54 rating, indicating protection against dust ingress and splashing water under the applicable test conditions.
9. Durable Handheld Construction
Designed for everyday commercial use, the scanner is specified to withstand 1.2-metre drops.
Its housing measures 160 × 64 × 97mm, making it suitable for handheld scanning applications.
10. Ambient Light Tolerance
The TVS BS-i201G Lite is rated for ambient lighting from 0 to 100,000 lux, supporting barcode reading under a range of lighting conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TVS Electronics (TVS-E) |
| Model | BS-i201G Lite |
| Product Type | 2D Wired Barcode Scanner |
| Scanner Technology | Area Imaging |
| Image Sensor | 640 × 480 Pixels |
| Aiming Light | Red LED |
| Illumination | White or Red LED |
| Connectivity | USB |
| Roll | 360° |
| Pitch | ±65° |
| Yaw | ±65° |
| Minimum Print Contrast | 20% Reflective Difference |
| Motion Tolerance | Greater Than 0.4m/s |
| 1D Barcode Support | Codabar, Code 39, Code 93, Code 128, UPC, EAN, Interleaved 2 of 5, MSI, GS1 DataBar and others |
| 2D Barcode Support | Codeblock A/F, PDF417, Micro PDF417, GS1 Composite, QR Code, Data Matrix, MaxiCode, Aztec, Han Xin |
| Decode Range – Code 39 (5mil) | 20–110mm |
| Decode Range – Code 39 (13mil) | 30–250mm |
| Input Voltage | DC 5V |
| Standby Current | 145mA |
| Starting Current | 190mA |
| Working Current | 380mA |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 5–95% RH, Non-Condensing |
| Ambient Light Immunity | 0–100,000 Lux |
| Shock Resistance | Designed for 1.2m Drops |
| IP Rating | IP54 |
| Dimensions | 160 × 64 × 97mm |
| Warranty | Not Specified |
