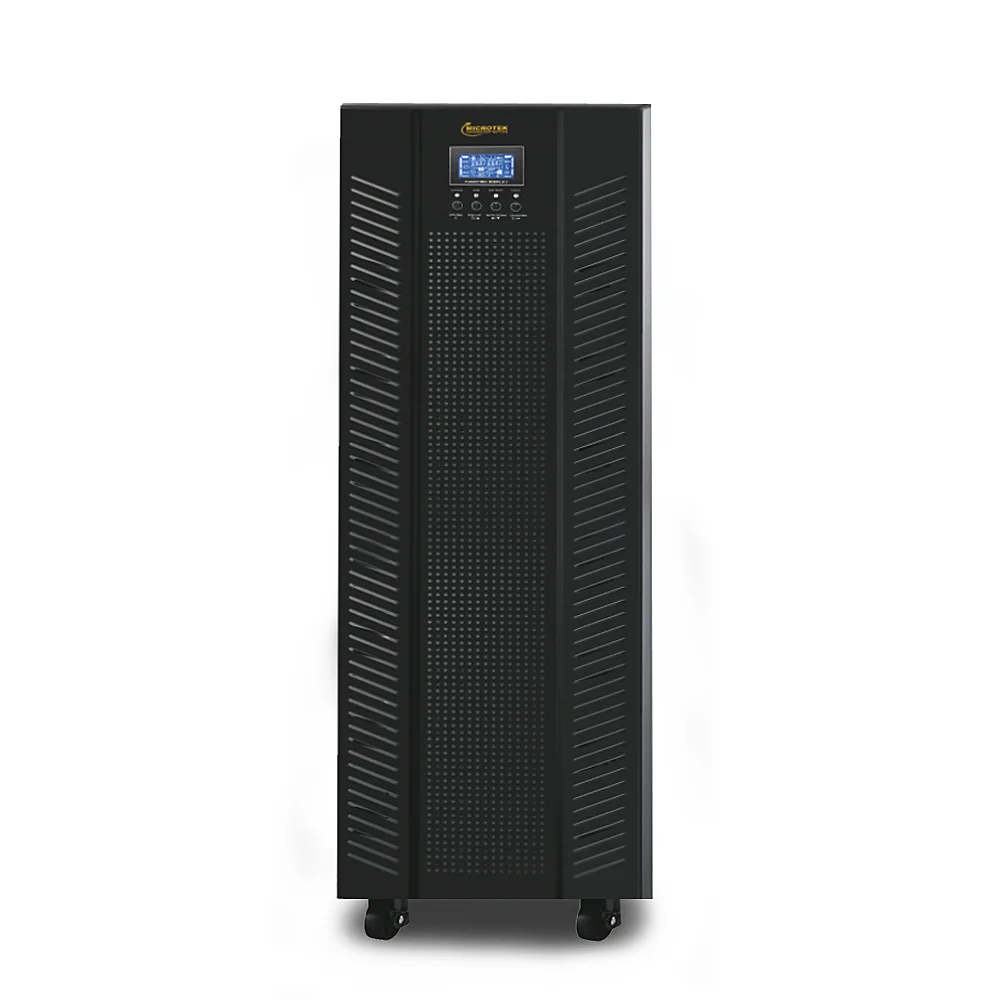

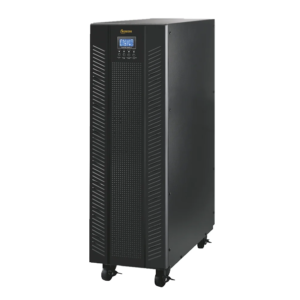

Microtek 6KVA/192V MAX+ Online UPS
₹63,800
The Microtek 6KVA/192V MAX+ Online UPS is a high-frequency, true double-conversion power backup system designed for professional workstations, servers, networking equipment and small data centers. Featuring 6000VA/4800W default capacity, configurable 192V–240V DC battery voltage, 16/18/20-battery support and a 4A standard charger, it delivers pure sine wave output with zero AC-to-battery transfer time. The UPS also supports unity output power factor with the 20-battery configuration, LCD monitoring, ECO mode, optional SNMP communication and parallel redundancy capabilities.
Product Enquiry
Interested in this product? Fill out the form below.
Microtek 6KVA/192V MAX+ Online UPS – High-Performance Power Backup
The Microtek 6KVA/192V MAX+ Online UPS is a professional-grade power backup solution designed to deliver stable and uninterrupted electricity for business-critical IT equipment. Built with high-frequency, true double-conversion technology, this UPS helps protect sensitive electronic systems against voltage fluctuations, unexpected power failures and common electrical disturbances.
Featuring 6000VA/4800W default rated capacity, an adjustable 192V–240V DC battery configuration and advanced digital signal processing (DSP), the Microtek MAX+ Series offers reliable power management for professional workstations, network infrastructure, small data centers and commercial applications.
Its flexible battery support, intelligent LCD monitoring, energy-saving ECO mode and optional parallel redundancy make it a versatile solution for professional installations.
Advanced True Double-Conversion Online Technology
The Microtek 6KVA/192V MAX+ Online UPS uses high-frequency double-conversion technology to deliver continuously conditioned electrical power.
Incoming AC electricity is converted into DC power and then converted back into a regulated AC output. This architecture provides improved protection from common electrical disturbances while maintaining consistent power delivery.
The system provides zero transfer time between AC mode and battery mode, helping connected equipment continue functioning when the main electrical supply is interrupted.
This capability is particularly useful for server rooms, network operations and professional environments where unexpected shutdowns can result in productivity losses.
Flexible Output Power Factor and High Efficiency
The Microtek MAX+ 6KVA Online UPS features flexible output power factor configurations to accommodate different battery arrangements and installation requirements.
The standard configuration provides a 0.8 output power factor. When configured with 18 compatible batteries, the system supports a 0.9 output power factor, while the 20-battery configuration enables unity power factor operation.
The manufacturer specifies up to 94% efficiency in AC mode and 91% efficiency in battery mode.
Its pure sine wave output provides clean electrical power for compatible sensitive electronic equipment.
These features make the UPS suitable for businesses that require stable, conditioned power and flexible power backup configurations.
Adjustable 192V–240V DC Battery System
One of the key advantages of the Microtek 6KVA/192V MAX+ Online UPS is its adjustable battery configuration.
The system supports 16, 18 or 20 compatible 12V batteries connected in series, corresponding to 192V, 216V and 240V DC battery configurations.
This flexibility helps installers select an appropriate system arrangement based on the manufacturer’s supported operating requirements.
The UPS uses external VRLA/SMF batteries and includes a 4A standard charging system. Optional charger expansion is also supported, subject to configuration and hardware availability.
Battery backup duration depends on the connected load, battery ampere-hour capacity, battery condition and operating environment.
DSP Technology and Intelligent LCD Monitoring
The Microtek MAX+ Online UPS incorporates advanced DSP technology to support reliable system performance and operational control.
Its integrated LCD display provides important information, including UPS operating status, load level, battery level, input and output voltages, frequency readings and fault indications.
Communication capabilities include RS232 and USB interfaces, with optional SNMP support for compatible remote monitoring installations.
These functions help IT administrators and facility managers monitor UPS operation and identify potential electrical or system issues.
Parallel Redundancy and Reliable Power Infrastructure
For installations requiring additional availability, the Microtek MAX+ Series supports optional N+X parallel redundancy.
Parallel operation can help appropriately designed power systems provide redundancy or increased power availability, subject to manufacturer-approved configuration, accessories and operating limits.
The UPS also incorporates static bypass and maintenance bypass capabilities, allowing appropriate system management during specified operational or servicing conditions.
These features make the system a practical choice for professional power backup infrastructure.
Advanced Safety and Electrical Protection
The Microtek 6KVA MAX+ Online UPS includes multiple technologies that help protect connected equipment and support operational reliability.
Its features include:
- High-frequency true double-conversion architecture
- Active input power factor correction
- Inbuilt surge protection and overvoltage cut-off
- Emergency Power Off (EPO) functionality
- Pure sine wave output
- ECO mode for improved energy efficiency
- Static and maintenance bypass capabilities
- Advanced battery management
- Configurable battery numbers
- Generator compatibility
Together, these capabilities support reliable operation in demanding commercial and IT environments.
Applications for Microtek 6KVA MAX+ Online UPS
The UPS is designed for professional environments that require dependable electrical power.
Small Data Centers: Suitable for compatible network equipment, servers and critical IT infrastructure.
Professional Workstations: Provides power conditioning and backup for demanding workstation installations.
Corporate Offices: Helps protect office computing systems and business networking infrastructure.
Educational Institutions: Suitable for computer laboratories, administration networks and supported electronic equipment.
Industrial Automation: Can support compatible process automation and control equipment requiring conditioned electrical power.
Actual suitability depends on equipment load, installation requirements and the electrical characteristics of connected devices.
Buy Microtek 6KVA/192V MAX+ Online UPS at Aadinath
At Aadinath Peripherals & Consumables, customers can explore reliable Online UPS systems, servers, workstations, networking solutions and professional IT products for commercial requirements.
The Microtek 6KVA/192V MAX+ Online UPS combines flexible battery configurations, high-efficiency power conversion, intelligent monitoring and advanced electrical protection.
For detailed manufacturer information, explore the official Microtek 6KVA MAX+ Online UPS specifications.
For pricing, battery selection, bulk orders and technical enquiries, contact Aadinath Peripherals & Consumables.
| Battery Configuration | DC Voltage | Output Power Factor |
|---|---|---|
| 16 × 12V batteries | 192V | 0.8 (Default) |
| 18 × 12V batteries | 216V | 0.9 (Optional configuration) |
| 20 × 12V batteries | 240V | 1.0 (Unity Power Factor) |
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Microtek |
| Series | MAX+ |
| Manufacturer SKU | 899-601-6001 |
| Manufacturer Model | ONLINEUPS6KVA1PH:1PH192V(HF) |
| UPS Technology | High-Frequency True Double Conversion |
| Default Capacity | 6000VA / 4800W |
| Default Output Power Factor | 0.8 |
| Optional Output Power Factor | 0.9 / 1.0 |
| Phase | Single Phase Input / Single Phase Output |
| Nominal Input Voltage | 208 / 220 / 230 / 240V AC |
| Input Voltage Range (50% load) | 110–300V AC ±3% |
| Input Voltage Range (100% load) | 176–300V AC ±3% |
| Input Frequency | 46–54Hz |
| Input Power Factor | ≥0.99 at full load |
| Output Voltage | 208 / 220 / 230 / 240V AC |
| Output Voltage Regulation | ±1% (Battery Mode) |
| Output Waveform | Pure Sine Wave |
| Output THD | ≤1% linear load; ≤4% non-linear load |
| AC-to-Battery Transfer Time | Zero |
| Inverter-to-Bypass Transfer Time | Zero |
| Efficiency (AC Mode) | 94% |
| Efficiency (Battery Mode) | 91% |
| Battery Type | VRLA / SMF External Battery |
| Default Battery Voltage | 192V DC |
| Adjustable Battery Voltage | 216V / 240V DC |
| Battery Count | 16 / 18 / 20 |
| Standard Charging Current | 4A |
| Charger Expansion | Optional, configuration dependent |
| LCD Display | Yes |
| Communications | RS232 / USB |
| SNMP | Optional |
| ECO Mode | Supported |
| Parallel Redundancy | Optional |
| Emergency Power Off | Supported |
| Generator Compatible | Yes |
| Noise Level | Less than 55dB at 1 metre |
| Dimensions (L × W × H) | 555 × 250 × 830mm |
| Brochure Net Weight | 32.5kg |
| Warranty | 2 Years |
