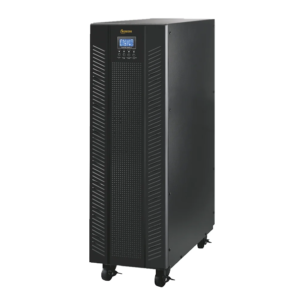

Microtek 10KVA/192V MAX+ Online UPS

Microtek 10KVA/192V MAX+ Online UPS – Advanced Power Backup Solution

The Microtek 10KVA/192V MAX+ Online UPS is a professional-grade, high-frequency power backup system designed to provide reliable and uninterrupted electricity for critical IT infrastructure, servers, networking equipment and commercial applications.

Featuring advanced true double-conversion technology, the Microtek MAX+ Series delivers stable electrical power while protecting connected equipment against voltage fluctuations, power interruptions and other common electrical disturbances.

With a rated capacity of 10000VA/8000W in its default configuration, adjustable 192V–240V DC battery support and intelligent DSP technology, this Online UPS is suitable for demanding business environments that require dependable power protection.

Advanced True Double-Conversion Technology

The Microtek 10KVA/192V MAX+ Online UPS incorporates high-frequency true double-conversion technology to deliver continuously conditioned electrical power.

Incoming AC electricity is converted into DC and then converted back into regulated AC output. This process helps isolate connected equipment from disturbances in the incoming electrical supply.

The UPS provides zero transfer time between AC operation and battery mode, enabling compatible equipment to continue operating without the interruption associated with conventional offline UPS systems.

This technology is particularly valuable for professional servers, workstations and networking environments where unexpected shutdowns can disrupt important operations.

Powerful 10KVA Capacity with Flexible Output Power Factor

The Microtek MAX+ 10KVA Online UPS offers a rated capacity of 10000VA and a default output power factor of 0.8, providing 8000W of rated output in its standard configuration.

The system also supports alternative power factor configurations depending on the selected battery arrangement.

With 18 compatible batteries, the manufacturer specifies a 0.9 output power factor. A 20-battery configuration supports unity output power factor, subject to the manufacturer’s operating conditions and applicable derating requirements.

The UPS produces pure sine wave output, helping provide clean and regulated electrical power to compatible sensitive equipment.

Adjustable 192V–240V DC Battery System

The Microtek 10KVA/192V MAX+ Online UPS features a flexible external battery configuration designed to accommodate different power backup requirements.

The system supports three battery arrangements:

• 16 batteries with 192V DC configuration
• 18 batteries with 216V DC configuration
• 20 batteries with 240V DC configuration

The default system uses 16 compatible 12V batteries connected in series.

Its adjustable battery configuration allows authorised installers to select a suitable arrangement based on power requirements and the manufacturer’s recommendations.

Battery backup duration depends on battery capacity, connected equipment load, battery condition and installation environment.

The UPS uses compatible external VRLA/SMF batteries. Battery supply should be confirmed separately when placing an order.

4A Inbuilt Charger with Optional Charging Expansion

The Microtek MAX+ 10KVA Online UPS features a 4A standard inbuilt charging system designed to support battery charging and backup readiness.

The manufacturer also provides optional charging expansion for compatible installations.

Additional charger modules may be considered for applications requiring increased battery charging capability, subject to Microtek’s approved accessories and installation specifications.

The charging arrangement should be selected according to the installed battery bank, battery capacity and charging requirements.

DSP Technology and Intelligent LCD Monitoring

The Microtek MAX+ Series incorporates Digital Signal Processing (DSP) technology for reliable system control and power management.

An integrated LCD display provides useful operating information, including UPS status, load level, battery level, input voltage, output voltage, frequency and fault indications.

Communication capabilities include RS232 and USB connectivity for compatible monitoring software.

An optional SNMP interface can provide network-based power monitoring for compatible business environments.

These features make the system suitable for professional IT administrators and facility managers who need visibility into UPS performance.

High Efficiency and Energy-Saving ECO Mode

The Microtek 10KVA MAX+ Online UPS provides high-efficiency operation to support professional power backup requirements.

According to the manufacturer, the UPS offers 94% efficiency in AC mode and 91% efficiency in battery mode under specified operating conditions.

An integrated ECO mode helps improve energy efficiency when operating conditions permit.

The UPS also supports frequency converter functionality and generator compatibility, providing additional flexibility for professional power infrastructure.

Optional Parallel Redundancy for Critical Applications

The Microtek MAX+ Series supports optional N+X parallel redundancy, allowing suitably equipped UPS systems to be configured for improved power availability.

Parallel redundancy is useful in environments where continuity of power supply is important, including networking rooms, server installations and critical business operations.

Parallel operation requires the appropriate manufacturer-approved hardware, electrical configuration and separate battery arrangements where specified.

The manufacturer also provides static bypass and maintenance bypass features for supported system operation and maintenance requirements.

Advanced Electrical Protection and Safety Features

The Microtek 10KVA/192V MAX+ Online UPS includes a range of electrical protection and operational features:

• True double-conversion technology
• Pure sine wave output
• Active input power factor correction
• Inbuilt surge protection
• Overvoltage cut-off device
• Emergency Power Off (EPO)
• Static bypass and maintenance bypass
• Intelligent battery management
• ECO energy-saving mode
• Generator compatibility
• Optional SNMP monitoring
• Optional parallel redundancy
• These features help protect compatible electronic equipment and contribute to reliable electrical power management.

Applications of Microtek 10KVA MAX+ Online UPS

Professional Workstations: Provides conditioned power backup for compatible high-performance workstations and business systems.

Small Data Centers: Suitable for supported IT infrastructure, servers and networking equipment.

Corporate Offices: Helps protect business computers, communication equipment and critical office systems.

Process Automation Equipment: Can provide stable electrical power to compatible automation and control systems.

Educational Institutions: Suitable for computer laboratories, administration networks and professional IT installations.

Commercial Infrastructure: Supports compatible business systems that require dependable power backup and electrical protection.

The suitability of any installation depends on electrical load, equipment requirements and the required backup time.

Buy Microtek 10KVA/192V MAX+ Online UPS at Aadinath

At Aadinath Peripherals & Consumables, customers can explore professional Online UPS systems, servers, workstations, networking products and complete IT infrastructure solutions.

The Microtek 10KVA/192V MAX+ Online UPS combines high-frequency double-conversion technology, adjustable battery configurations, intelligent monitoring and flexible power management in one dependable system.

For additional technical details, refer to the official Microtek 10KVA MAX+ Online UPS specifications.
