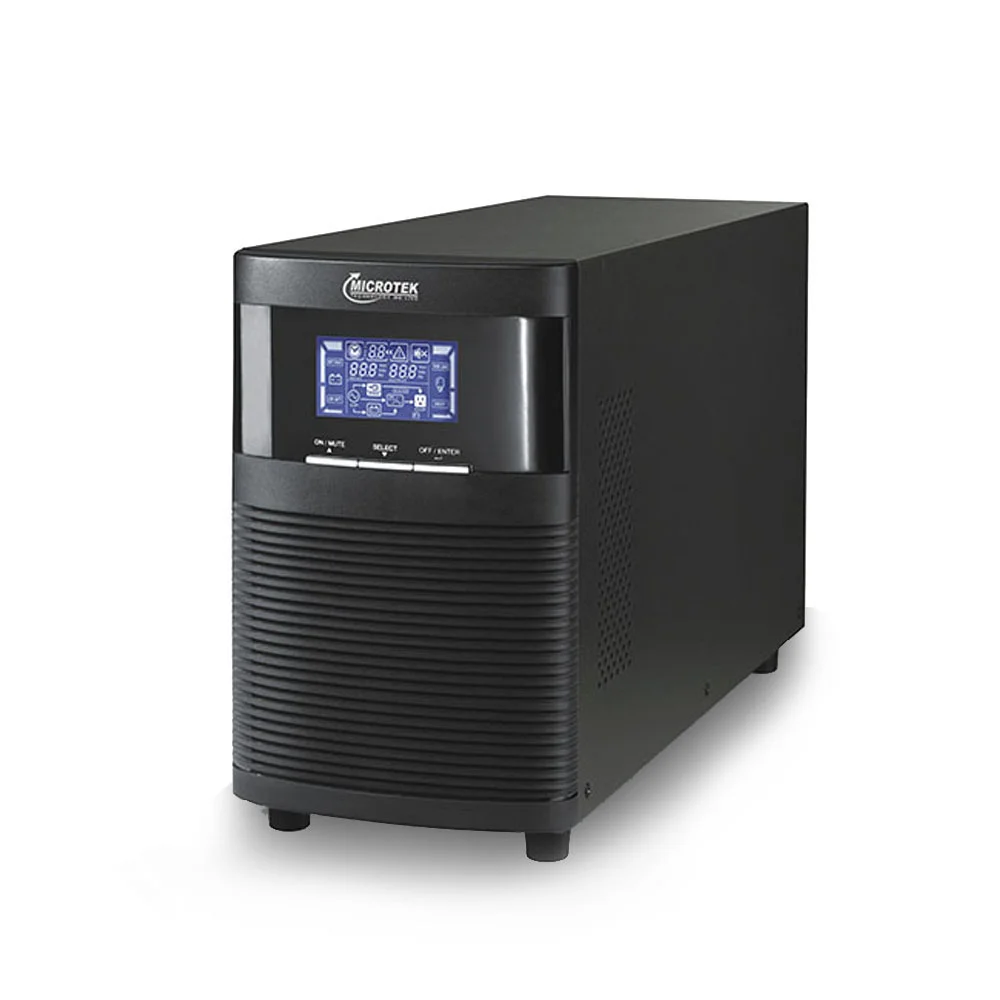

Microtek 1KVA/24V E2 Online UPS

Microtek 1KVA/24V E2 Online UPS – Reliable Power Backup with Inbuilt Batteries

The Microtek 1KVA/24V E2 Online UPS is a powerful and compact uninterruptible power supply designed to deliver stable, continuous power to critical IT equipment and sensitive electronic devices. Featuring high-frequency double-conversion IGBT technology, an output power factor of 0.8 and two inbuilt 12V/9Ah batteries, this UPS provides essential power protection for professional and commercial applications.

With a rated capacity of 1000VA/800W, pure sine wave output and a 24V DC battery system, the Microtek E2 Series helps protect compatible computers, networking equipment, office electronics and workstations against unexpected power interruptions.

Manufactured by Microtek, the UPS combines efficient power conversion, intelligent battery management, LCD monitoring and electrical protection features in a compact tower design.

High-Frequency Double Conversion Online UPS Technology

The Microtek 1KVA/24V E2 Online UPS operates using advanced high-frequency double-conversion IGBT technology.

Unlike conventional line-interactive UPS systems, double-conversion technology continuously supplies connected equipment through the inverter during normal operation.

Incoming AC electricity is first converted into DC power and then converted back into regulated AC electricity.

This process helps isolate connected electronic equipment from disturbances in the incoming mains supply, including voltage fluctuations and sudden power interruptions.

The system provides zero transfer time from normal inverter operation to battery mode, helping connected devices remain powered during electricity failures.

This feature is particularly beneficial in professional computing environments where unexpected shutdowns can interrupt work or cause data loss.

1KVA/800W Capacity with 0.8 Output Power Factor

The Microtek E2 1KVA Online UPS delivers a rated capacity of 1000VA/800W, with an output power factor of 0.8.

This makes it suitable for compatible computing systems, including desktop computers, network routers, switches, workstations and selected office electronics.

The 800W capacity represents the maximum rated active output power, not a guarantee that every 800W device will operate without limitations.

Before selecting the UPS, users should calculate the combined power consumption, startup requirements and compatibility of connected equipment.

Allowing sufficient operating headroom helps improve reliability and prevents unnecessary overload conditions.

Two Inbuilt 12V/9Ah Batteries with 24V DC System

A key advantage of the Microtek 1KVA/24V E2 Online UPS is its inbuilt battery configuration.

The unit comes equipped with two 12V/9Ah sealed maintenance-free batteries, forming a 24V DC battery system.

Unlike external-battery UPS models, this configuration incorporates the batteries inside the UPS cabinet.

This compact arrangement reduces the need for a separate battery enclosure and is convenient for installations where space is limited.

The internal battery system is designed to supply temporary backup power during mains electricity interruptions.

Actual backup duration depends on the connected load, battery condition, battery age, operating temperature and overall system efficiency.

Users requiring extended backup time should evaluate whether this internal-battery configuration is sufficient for their application.

Pure Sine Wave Output for Sensitive Electronics

The Microtek E2 Series Online UPS provides pure sine wave output during battery operation.

Pure sine wave technology is suitable for a wide range of compatible electronic power supplies and helps deliver stable AC power during outages.

The UPS supports multiple configurable output voltage settings, including 200V, 208V, 220V, 230V and 240V AC.

It also provides regulated output voltage and controlled frequency during battery operation.

These features make the UPS a practical choice for applications where consistent power quality is important.

Computers, networking equipment and other compatible electronic devices can benefit from correctly designed pure sine wave power backup.

Smart LCD Display for Real-Time UPS Monitoring

The Microtek 1KVA/24V E2 Online UPS features a smart LCD display that helps users monitor important UPS operating conditions.

The display provides information about the system’s status, helping users understand when the unit is operating normally or responding to changes in electrical supply.

It also helps identify various operating indications and alerts.

The LCD-based interface makes the unit convenient for office users, IT professionals and technicians who need visibility into power backup conditions.

Optional SNMP functionality may also be available for compatible installations requiring network-based power monitoring.

Intelligent 1A Battery Charging System

The Microtek E2 Online UPS includes a built-in charging system with a specified 1 Amp charging current.

The charger is designed to support the integrated 24V SMF battery configuration under suitable operating conditions.

Proper charging helps maintain battery readiness for the next power interruption.

The manufacturer also mentions optional external charging support for compatible configurations. This should not be confused with the standard built-in battery charger.

Battery servicing, replacement and any charging modifications should be performed according to Microtek’s instructions and by qualified personnel.

Advanced Power Protection and Safety Features

The Microtek E2 Series incorporates multiple technologies designed to improve the reliability of connected equipment.

These include an inbuilt overvoltage cut-off device, surge protection, EMI noise filtering and temperature monitoring.

The UPS also features static bypass functionality to support power continuity under specified operating conditions.

Advanced power factor correction helps improve input power characteristics, while the microcontroller-based design manages important UPS operations.

Generator compatibility provides additional flexibility for installations that use a suitable generator as part of their backup power infrastructure.

An isolation transformer is listed as an optional feature and should not be assumed to be included with the standard product.

Compact Design for Offices and IT Infrastructure

The Microtek 1KVA/24V E2 Online UPS uses a compact tower cabinet that houses both the UPS electronics and batteries.

This integrated arrangement is convenient for installations where separate battery racks are not practical.

The design is suitable for appropriately sized office computer setups, networking counters, workstation areas and small IT installations.

Adequate ventilation should be maintained around the UPS, and it should be installed according to the manufacturer’s operating temperature and environmental requirements.

The model can be considered for businesses seeking a compact power backup solution with built-in batteries and double-conversion technology.

Suitable for Computers, Networking and Professional Applications

The Microtek 1KVA/24V E2 Online UPS can support a variety of compatible applications, including desktop workstations, networking switches, routers, computer laboratory equipment, office IT devices and CCTV-related infrastructure.

The integrated batteries are useful for short-duration backup requirements, allowing equipment to continue operating temporarily or shut down safely.

Actual backup time should be evaluated against the connected load rather than assumed from the 1KVA capacity alone.

For customers planning larger installations, Aadinath’s complete office and IT infrastructure solutions include computers, networking equipment, power backup solutions and other business requirements.

Buy Microtek 1KVA/24V E2 Online UPS from Aadinath Peripherals

At Aadinath Peripherals & Consumables, we offer a wide selection of IT hardware, power protection equipment, computer peripherals and accessories for commercial and institutional customers.

Customers looking for compact backup solutions can also explore the Microtek Legend 650 Line Interactive UPS for compatible lower-power applications.

Our team assists with product selection, business quotations, procurement and bulk supply requirements.

You can also view the official Microtek E2 Series 1KVA/24V product details for manufacturer information.

For current pricing, product availability and bulk purchase enquiries, contact Aadinath Peripherals or email sales@aadinathperipherals.com.

Technical Specifications
