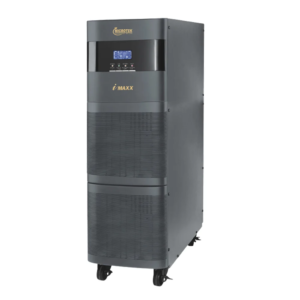

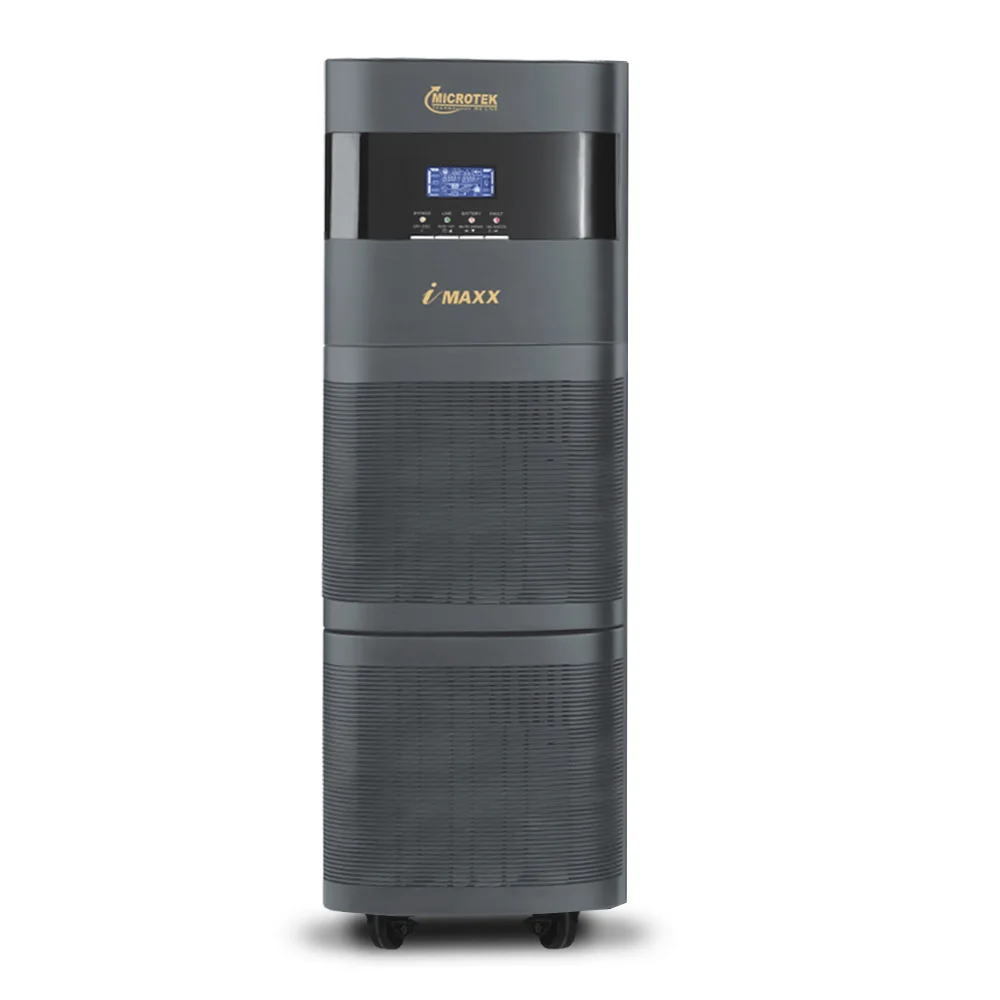

Microtek 10KVA/192V iMAXX Online UPS

Microtek 10KVA/192V iMAXX Online UPS – High-Capacity Transformer-Based Power Backup

The Microtek 10KVA/192V iMAXX Online UPS is a professional-grade uninterruptible power supply designed to deliver dependable electrical backup and stable power for critical IT infrastructure, commercial facilities and compatible electronic equipment. Built with advanced Digital Signal Processing (DSP) technology, an IGBT-based inverter and an inbuilt output isolation transformer, this UPS offers reliable performance for demanding business environments.

Featuring a rated capacity of 10KVA/8000W, a 0.8 output power factor, a 192V DC external battery system and an 8 Amp inbuilt charger, the Microtek iMAXX Series combines powerful electrical performance with flexible battery configurations and intelligent power monitoring.

Manufactured by Microtek, this Online UPS is suitable for organizations looking for a transformer-based power backup solution with pure sine wave output, advanced protection and professional monitoring capabilities.

Advanced DSP Technology with IGBT-Based Inverter

The Microtek 10KVA/192V iMAXX Online UPS uses DSP-controlled IGBT inverter technology to manage power conversion, monitoring and system performance.

Unlike conventional line-interactive UPS systems, an Online UPS continuously powers connected equipment through an inverter during normal operation.

Its electronic control system helps maintain reliable output power while responding to changes in incoming mains conditions.

During electricity failures, the battery system continues supporting inverter operation without the switching delay associated with traditional backup systems.

Microtek specifies zero transfer time from normal AC operation to battery mode, helping compatible equipment remain powered during unexpected electricity interruptions.

This makes the UPS suitable for business environments where power interruptions could disrupt important digital operations.

10KVA/8000W Power Capacity with 0.8 Power Factor

The Microtek iMAXX 10KVA Online UPS offers a rated output capacity of 10000VA or 8000W with an output power factor of 0.8.

Its high-capacity design supports properly sized professional workstations, server equipment, network infrastructure and other compatible commercial electronics.

Compared with lower-capacity UPS systems, the 10KVA rating provides greater flexibility when planning a centralized power backup installation.

Before selecting the UPS, the total connected load should be calculated carefully.

Power requirements such as continuous consumption, startup characteristics, peak load and the required backup duration must be considered.

Maintaining appropriate operating headroom is important for reliable performance and reducing the possibility of overload conditions.

The final configuration should be designed according to the electrical requirements of the complete installation.

Inbuilt Output Isolation Transformer

An important feature of the Microtek 10KVA/192V iMAXX Online UPS is its integrated output isolation transformer.

The transformer provides galvanic isolation in the supported output arrangement, helping reduce certain common-mode electrical disturbances and interference.

This can be beneficial in professional environments where electrical isolation is an important requirement.

Unlike transformerless UPS systems, this iMAXX model includes the output transformer within its cabinet.

This integrated arrangement can simplify system planning when the built-in transformer meets the application’s requirements.

However, the transformer does not replace appropriate grounding, protective devices or safe electrical installation practices.

Sensitive industrial, laboratory and specialized electronic equipment should be evaluated for compatibility before being connected.

Flexible 192V and 216V External Battery System

The Microtek iMAXX 10KVA UPS supports flexible external battery configurations.

Its standard operating configuration uses 16 compatible 12V batteries connected in series, providing a 192V DC battery system.

An alternative manufacturer-supported configuration uses 18 compatible 12V batteries to provide 216V DC.

The battery system must be configured correctly for the selected voltage before operation.

Microtek recommends VRLA or sealed maintenance-free batteries as its default battery type.

Compatible tubular batteries may also be supported when the required charging cut-off voltage is adjusted according to manufacturer recommendations.

Actual backup duration depends on battery capacity, connected load, battery health, UPS efficiency and operating conditions.

External battery banks should be selected following a load-specific runtime calculation and installed using appropriate protective devices, cabling and battery accessories.

Intelligent 8 Amp Inbuilt Battery Charger

The Microtek 10KVA/192V iMAXX Online UPS includes an 8 Amp inbuilt battery charging system.

The manufacturer specifies selectable charging current settings of 2A, 4A and 8A, with 8A as the default setting.

These options allow the charging current to be selected according to the compatible battery configuration.

Correct charging settings help maintain battery readiness and support dependable backup operation.

The charging current should always be selected according to the battery manufacturer’s specifications.

Battery installation and charging configuration should be performed by qualified personnel, particularly because the external battery system operates at high DC voltage.

Optional Additional 4 Amp Charger Module

The Microtek iMAXX Series also supports an additional 4 Amp charger module as an optional accessory.

This option provides supplementary charging capability for suitable external battery installations.

The optional 4A module is separate from the standard 8A inbuilt charger.

Customers should not assume that the additional charger is included with the basic UPS package.

Before purchasing the optional module, its compatibility with the installed battery bank, UPS configuration and charging requirements should be confirmed.

Supplementary charging equipment should only be installed according to Microtek’s approved configuration guidelines.

Pure Sine Wave Output with Stable Voltage Regulation

The Microtek iMAXX 10KVA Online UPS delivers pure sine wave power during battery operation.

Pure sine wave output is particularly useful for compatible electronic power supplies and professional computing equipment.

The UPS supports configurable nominal output voltages of 208V, 220V and 230V AC.

It also features approximately ±1% voltage regulation during battery operation.

The manufacturer specifies a mains-mode synchronization range of 45Hz to 55Hz, with battery-mode output frequency of 50Hz ±0.1Hz.

These characteristics support consistent power delivery under the manufacturer’s specified operating conditions.

Hot Standby and Cold Start Functionality

The Microtek 10KVA/192V iMAXX Online UPS includes Hot Standby and Cold Start functionality.

Hot Standby supports compatible standby UPS arrangements for installations requiring an additional level of power backup planning.

The exact standby architecture, connections and compatibility requirements should be confirmed with Microtek before commissioning.

Hot Standby should not be confused with parallel load-sharing or increasing the combined UPS output capacity.

Cold Start functionality allows the UPS to start from its external battery supply under supported conditions.

These features provide operational flexibility for professional installations.

Smart LCD Display for Real-Time Monitoring

The Microtek 10KVA iMAXX Series includes a smart LCD display designed to provide essential operating information.

The display shows important parameters including load level, battery level, AC mode, battery mode, bypass mode and fault indications.

These features help IT administrators and maintenance personnel monitor electrical conditions and identify alerts.

The UPS includes audible alarms for battery operation, low-battery conditions, overload events and faults.

It also supports RS232 and USB communication with compatible monitoring software.

An optional SNMP card can be added for supported network-based monitoring installations.

Built-In Maintenance Bypass and Static Bypass

The Microtek iMAXX UPS features built-in maintenance bypass and static bypass switching arrangements.

These features support power continuity and service procedures under specified operating conditions.

The manufacturer specifies zero inverter-to-bypass transfer time and less than 5 milliseconds for bypass-to-inverter transfer.

Bypass operation must be managed carefully because equipment connected through bypass may be exposed to the available bypass supply characteristics.

Maintenance procedures should always follow the manufacturer’s instructions and be carried out by qualified service personnel.

Advanced Surge and Electrical Protection

The Microtek 10KVA/192V iMAXX Online UPS includes multiple features intended to improve reliability.

These include an inbuilt Over Voltage Cut-Off Device (OVCD), surge protection, EMI/RFI noise filtering and overtemperature indication and protection.

The UPS also includes conformal-coated PCB assemblies designed to provide additional protection under certain challenging environmental conditions.

Together with its monitoring and power management functions, these technologies make the iMAXX Series suitable for properly designed professional power backup installations.

Generator Compatibility and CVCF Operation

The Microtek iMAXX 10KVA Online UPS supports operation with a compatible generator.

The manufacturer recommends a standby generator capacity of approximately 2.5 times the UPS capacity as a sizing guideline.

The actual generator specification should be confirmed according to the connected load and electrical installation requirements.

The UPS also supports Constant Voltage Constant Frequency (CVCF) operation when suitable input power is available.

Microtek lists CVCF operation without batteries as a supported capability.

However, operating without batteries does not provide backup power during a complete loss of the input electricity supply.

Ideal for Servers, Networking and Commercial IT Infrastructure

The Microtek 10KVA/192V iMAXX Online UPS can be considered for professional environments requiring dependable electrical power.

Potential applications include appropriately sized server rooms, computer networks, corporate offices, workstations, networking switches, compatible data-processing equipment and selected industrial electronic systems.

Its transformer-based design, configurable external battery bank and smart monitoring features make it relevant to centralized power backup requirements.

For complete IT infrastructure requirements, explore the office and IT infrastructure setup solutions offered by Aadinath Peripherals.

Buy Microtek 10KVA/192V iMAXX Online UPS from Aadinath Peripherals

At Aadinath Peripherals & Consumables, we provide professional IT hardware, power backup equipment, computing systems, networking products and accessories for businesses, institutions and system integrators.

Our team assists customers with UPS procurement enquiries, external battery planning, project requirements and bulk quotations.

Customers can also review the official Microtek 10KVA iMAXX Online UPS specifications for manufacturer information.

Whether you require one UPS for critical equipment or multiple units for a larger infrastructure project, selecting the correct power rating and battery system is important.

Technical Specifications
