Microtek 1KVA/36V MAX+ IB Online UPS

Microtek 1KVA/36V MAX+ IB Online UPS – Reliable Power Backup with Inbuilt Batteries

The Microtek 1KVA/36V MAX+ IB Online UPS is a reliable and efficient uninterruptible power supply designed to protect sensitive IT equipment against sudden power failures, voltage fluctuations and other electrical disturbances. Featuring advanced high-frequency double-conversion IGBT technology, a 0.9 output power factor and three inbuilt 12V/7Ah batteries, this UPS provides dependable power protection for professional computing environments.

With a rated capacity of 1000VA/900W, the Microtek MAX+ Series offers pure sine wave output, intelligent battery management and advanced monitoring capabilities. Its integrated 36V battery system makes it a practical choice for businesses seeking a compact UPS without the need for a separate external battery bank.

Manufactured by Microtek, this Online UPS is suitable for compatible desktop computers, workstations, networking equipment, office IT systems and other essential business electronics.

High-Frequency Double Conversion Online UPS Technology

The Microtek MAX+ 1KVA Online UPS uses high-frequency double-conversion technology to deliver regulated AC power to connected equipment.

Unlike conventional line-interactive UPS systems, an Online UPS continuously supplies power through its inverter during normal operation.

Incoming AC electricity is converted into DC and then converted back into AC power. This process helps isolate connected equipment from many disturbances in the incoming electricity supply.

The UPS provides zero transfer time from normal online operation to battery mode, helping connected devices remain powered during sudden mains failures.

This technology is useful for business environments where unexpected shutdowns may interrupt daily operations, cause data loss or affect important electronic systems.

1KVA/900W Capacity with 0.9 Output Power Factor

The Microtek 1KVA/36V MAX+ IB Online UPS offers a rated capacity of 1000VA and 900W, supported by a 0.9 output power factor.

This allows the UPS to support appropriately sized computing equipment, networking devices and office electronics.

Compared with a traditional 1KVA/800W UPS, the MAX+ model provides a higher active power rating.

This additional rated capacity can be beneficial for professional workstations and office installations requiring dependable power protection.

Before selecting a UPS, users should calculate the total power consumption of their equipment and ensure that it remains within the supported rating.

Providing suitable operating headroom can reduce the risk of overload conditions and help maintain reliable performance.

Three Inbuilt 12V/7Ah Batteries with 36V DC System

One of the most important features of the Microtek MAX+ IB Online UPS is its integrated battery configuration.

The unit includes three 12V/7Ah sealed maintenance-free batteries, connected internally to form a 36V DC battery system.

Unlike external-battery UPS configurations, this model incorporates the batteries inside its cabinet.

This arrangement reduces the need for a separate battery enclosure and makes the unit convenient for compact office installations.

The inbuilt batteries provide temporary backup power when the mains supply fails, allowing compatible equipment to continue operating for a limited period.

Actual backup duration depends on the connected equipment load, battery condition, operating temperature and UPS efficiency.

Users requiring extended backup duration should assess their requirements carefully because this particular SKU is designed around an integrated battery configuration.

Pure Sine Wave Output for Sensitive Electronic Equipment

The Microtek 1KVA/36V MAX+ Online UPS provides pure sine wave output, helping deliver reliable AC power to compatible electronic equipment.

Pure sine wave technology is valuable for computers, network equipment and electronic power supplies that require stable output characteristics.

The UPS supports selectable output voltage settings of 208V, 220V, 230V and 240V AC.

The manufacturer specifies output harmonic distortion limits of 2% or less for linear loads and 4% or less for non-linear loads.

These characteristics support dependable power delivery for suitable professional IT applications.

The UPS also features frequency management capabilities, allowing operation according to supported input and output frequency conditions.

Intelligent Battery Charging and Management

The Microtek MAX+ IB Online UPS incorporates an intelligent charging system designed for its three internal 7Ah batteries.

The manufacturer’s specific technical data for the 36V internal-battery model lists a charging current of approximately 0.7–0.8A.

Its battery management technology supports controlled charging and helps maintain battery readiness during regular operation.

The UPS also supports automatic battery charging during UPS-off mode under the manufacturer’s specified conditions.

This feature allows the internal batteries to remain charged even when the UPS output is switched off.

Proper installation, ventilation and servicing remain important for reliable operation and battery performance.

Battery replacement should be carried out using compatible batteries according to Microtek’s recommendations.

Smart LCD Display for Convenient Power Monitoring

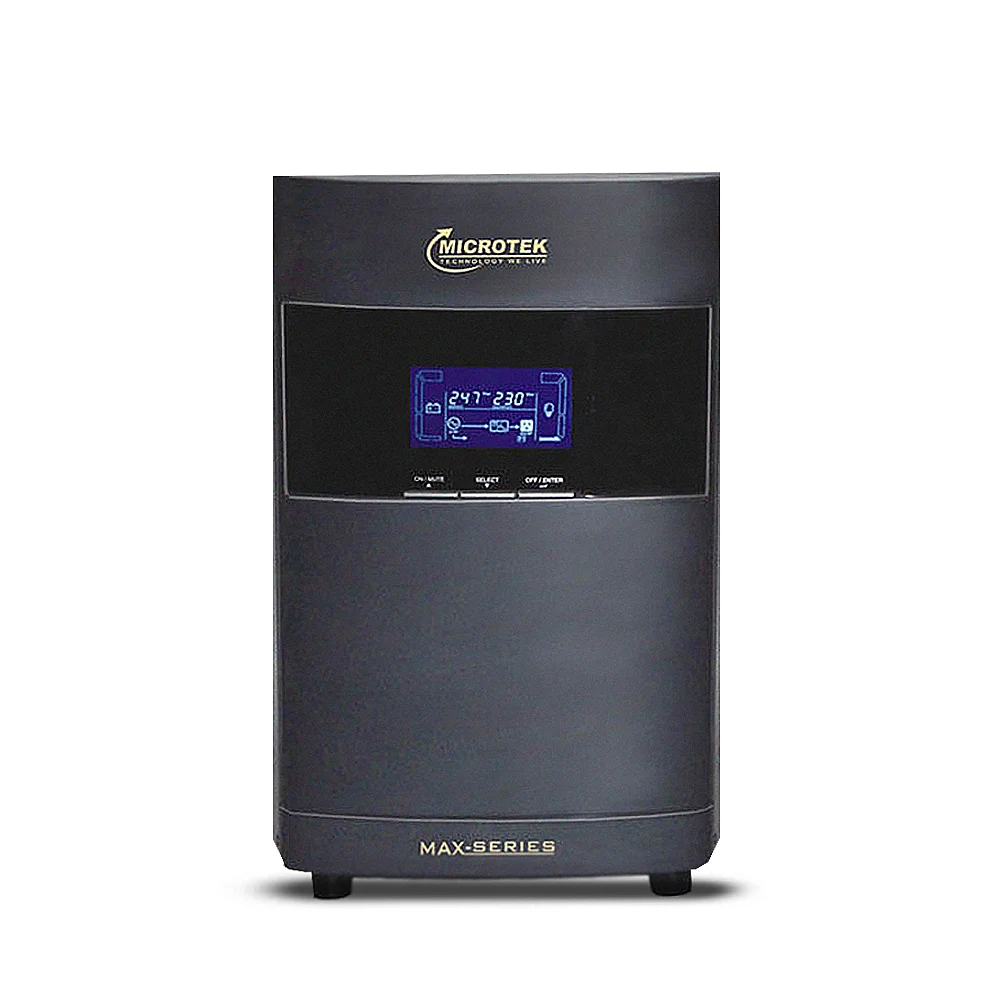

The Microtek 1KVA/36V MAX+ IB Online UPS comes equipped with an LCD display that provides information about UPS operating conditions.

The display helps users observe important parameters and identify the current system status.

This monitoring capability is useful for office staff, IT administrators and technicians managing critical computing equipment.

The UPS also supports smart RS232 communication with compatible monitoring software.

Optional SNMP functionality may be available for environments requiring network-based power monitoring.

These communication features make the MAX+ Series suitable for professional installations requiring convenient supervision of power backup equipment.

Advanced Protection Features and Electrical Safety

The Microtek MAX+ Online UPS includes multiple electrical protection features designed to improve reliability.

These include overload protection, short-circuit protection, overtemperature protection, EMI/RFI noise filtering and an inbuilt overvoltage cut-off device.

Advanced power factor correction helps manage the input power characteristics, while static bypass functionality provides an alternative electrical path under supported conditions.

The system also includes protection related to DC fan failure and offers programmable and non-programmable outlets.

Generator compatibility provides additional flexibility for installations using suitable generator backup.

An isolation transformer is listed as an optional accessory and should not be assumed to be included in the standard package.

Compact Design with Integrated Battery Backup

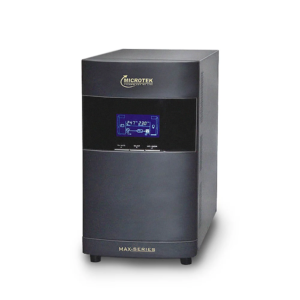

The Microtek 1KVA/36V MAX+ IB Online UPS uses a compact cabinet that accommodates the UPS electronics and internal batteries.

This integrated arrangement helps simplify equipment placement by eliminating the need for a separate external battery bank.

The cabinet is suitable for correctly ventilated office and IT environments where space efficiency is important.

The manufacturer lists an approximate net weight of 13.5kg for this model.

Users should install the UPS on a stable surface and maintain adequate ventilation around the cabinet.

The equipment should be operated within the specified environmental and electrical limits to support reliable performance.

Ideal for Office Computers, Networking and IT Applications

The Microtek MAX+ 1KVA Online UPS is suitable for a variety of professional applications when the connected load is properly sized.

Typical applications include office desktop computers, networking switches, routers, workstations, small IT systems, computer laboratories and compatible electronic equipment.

Its integrated batteries can provide short-duration backup during power interruptions and allow users time to save important work or shut down equipment safely.

The actual battery backup time varies with the electrical load and should be evaluated before installation.

Organizations planning wider equipment procurement can also explore the range of IT hardware and office infrastructure products available through Aadinath Peripherals.

Separate Warranty Coverage for UPS and Battery

The Microtek 1KVA/36V MAX+ IB Online UPS provides separate warranty coverage for its electronics and internal battery components.

The manufacturer specifies 2 years of warranty on UPS electronics and 1 year of warranty on the inbuilt batteries.

This distinction is important when comparing the MAX+ Series with other UPS models.

Customers should retain their purchase invoice and follow the manufacturer’s warranty and service guidelines.

Buy Microtek 1KVA/36V MAX+ IB Online UPS from Aadinath Peripherals

At Aadinath Peripherals & Consumables, we supply IT hardware, power backup solutions, computers, networking equipment and accessories for businesses and institutions.

Our team can assist with UPS selection, product enquiries, quotations and bulk procurement requirements.

Whether you require an individual UPS for an office computer or multiple units for a commercial installation, suitable product selection helps improve operational reliability.

You can review the official Microtek MAX+ 1KVA/36V inbuilt-battery product for additional manufacturer information.

For pricing, availability and bulk purchase enquiries, contact Aadinath Peripherals or email sales@aadinathperipherals.com.

Technical Specifications
