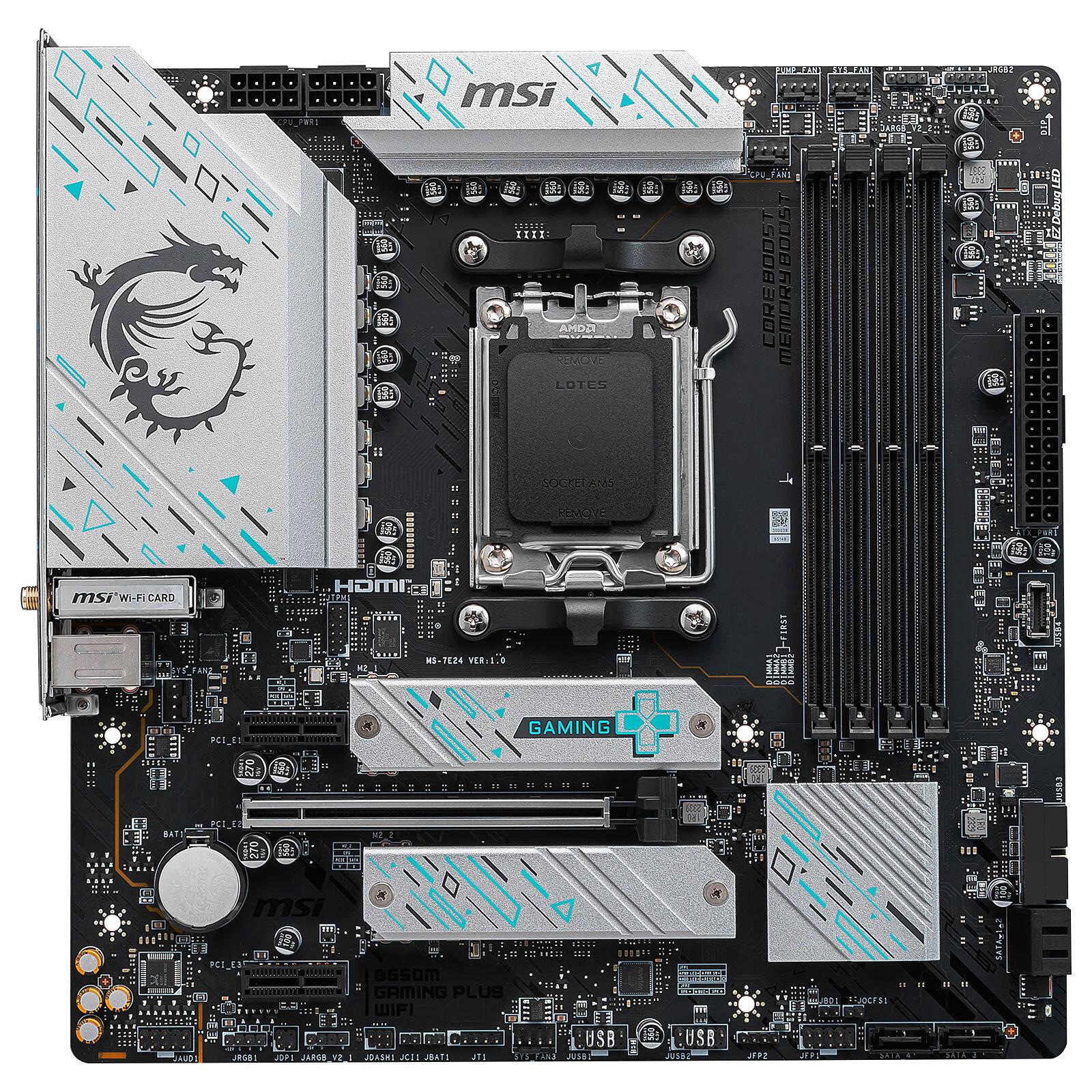

MSI B650M Gaming Plus WIFI DDR5 Motherboard B650M-GAMING-PLUS-WIFI
The MSI B650M GAMING PLUS WIFI is a Micro-ATX motherboard featuring the AMD B650 chipset and AM5 socket. Supporting AMD Ryzen 7000, 8000 and 9000 Series processors, it offers up to 256GB DDR5 memory, 7200+MHz (OC), PCIe 4.0 graphics, dual M.2 NVMe SSD slots, Wi-Fi 6E, Bluetooth 5.3 and 2.5G LAN. Ideal for compact gaming desktops, content creation and professional computing.
Product Enquiry
Interested in this product? Fill out the form below.
MSI B650M GAMING PLUS WIFI DDR5 AMD Motherboard
The MSI B650M GAMING PLUS WIFI Motherboard (B650M-GAMING-PLUS-WIFI) is a high-performance Micro-ATX motherboard designed for gaming, productivity and professional desktop computing. Featuring the AMD B650 chipset and AM5 socket, it supports AMD Ryzen 7000, 8000 and 9000 Series desktop processors.
With DDR5 memory, PCIe 4.0 expansion, dual M.2 storage and integrated Wi-Fi 6E, this motherboard offers modern connectivity and reliable performance for AMD desktop builds.
Key Features
- AMD B650 Chipset: Designed for AMD Ryzen AM5 desktop processors.
- AMD AM5 Socket: Supports Ryzen 7000, 8000 and 9000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: DDR5 speeds up to 7200+MHz (OC).
- PCIe 4.0 Graphics: PCIe 4.0 x16 expansion slot for compatible graphics cards.
- Dual M.2 Storage: Two PCIe 4.0 x4 M.2 connections for NVMe SSDs.
- Wi-Fi 6E: Fast wireless networking on compatible networks.
- Bluetooth 5.3: Wireless connectivity for compatible peripherals.
- 2.5G LAN: High-speed wired Ethernet connection.
- USB 10Gbps Type-C: High-speed rear and front USB Type-C connectivity.
- AMD EXPO Support: Memory overclocking profiles for compatible DDR5 RAM.
- EZ Debug LED: Helps identify common hardware problems.
- 7.1-Channel HD Audio: Realtek ALC897 audio codec.
- Micro-ATX Form Factor: Compact design suitable for compatible gaming cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B650M GAMING PLUS WIFI |
| Part Number | B650M-GAMING-PLUS-WIFI |
| Chipset | AMD B650 |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| RAM Slots | 4 DIMM |
| Maximum RAM | 256GB |
| Memory Speed | Up to 7200+MHz (OC) |
| Memory Profile | AMD EXPO |
| Graphics Expansion | PCIe 4.0 x16 |
| Additional PCIe Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| Wireless | Wi-Fi 6E |
| Bluetooth | 5.3 |
| Ethernet | Realtek 2.5Gbps LAN |
| Rear USB-C | USB 10Gbps |
| Front USB-C Header | USB 10Gbps |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1 Channel |
| BIOS Feature | Flash BIOS Button |
| Operating System | Windows 10 / 11 64-bit |
| Dimensions | 243.84 × 243.84 mm |
Why Choose MSI B650M GAMING PLUS WIFI?
The MSI B650M GAMING PLUS WIFI combines fast DDR5 memory, PCIe 4.0 expansion, reliable wired networking and Wi-Fi 6E connectivity in a compact Micro-ATX design.
Its dual M.2 storage slots, four RAM slots and flexible expansion options make it suitable for gaming systems, office desktops, home computers and AMD Ryzen PC builds.
Build your next AMD desktop with the MSI B650M GAMING PLUS WIFI Motherboard for dependable performance, modern connectivity and flexible upgrades.
