ASUS TUF Gaming A620M-PLUS AM5 A620 Motherboard
ASUS TUF GAMING A620M-PLUS is an AMD AM5 Micro ATX motherboard powered by the AMD A620 chipset and designed for Ryzen 7000 Series desktop processors. It features four DDR5 DIMM slots supporting up to 128GB RAM and memory speeds up to 6400MHz (OC), PCIe 4.0 x16 graphics support and dual PCIe 4.0 M.2 SSD slots. Equipped with Realtek 2.5Gb Ethernet, HDMI 2.1, dual DisplayPort 1.4, Smart Cooling with Fan Xpert 2, ASUS Aura Sync RGB, Two-Way AI Noise Cancellation and BIOS FlashBack. Ideal for gaming, productivity and custom desktop PC builds. Includes a 3-year warranty.
Product Enquiry
Interested in this product? Fill out the form below.
ASUS TUF Gaming A620M-PLUS AM5 Motherboard
Overview :
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors

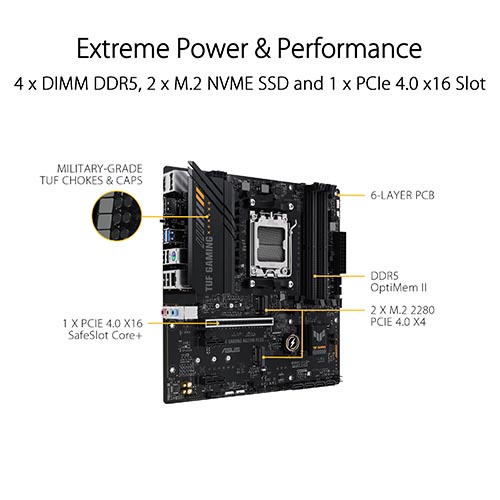

- Enhanced Power Solution: Six-layer PCB, alloy Chokes, military-grade TUF components and DIGI VRM for maximum durability
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory

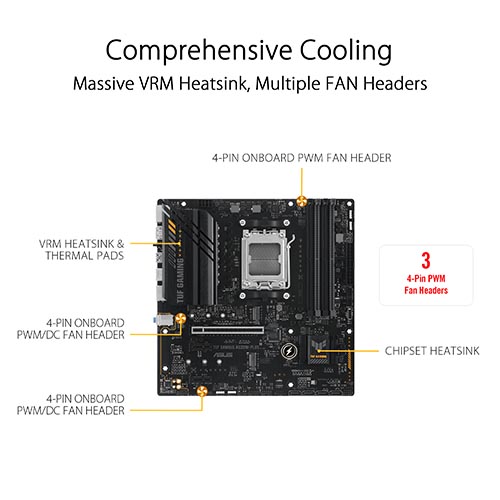

- Comprehensive Cooling: Enhanced VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2

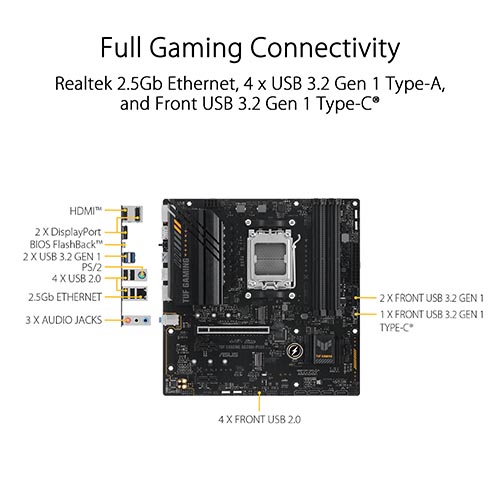

- Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, USB 3.2 Gen 1 Type-A, and front USB 3.2 Gen 1 Type-C®
- Made for Online Gaming: Realtek 2.5Gb Ethernet, TUF LANGuard

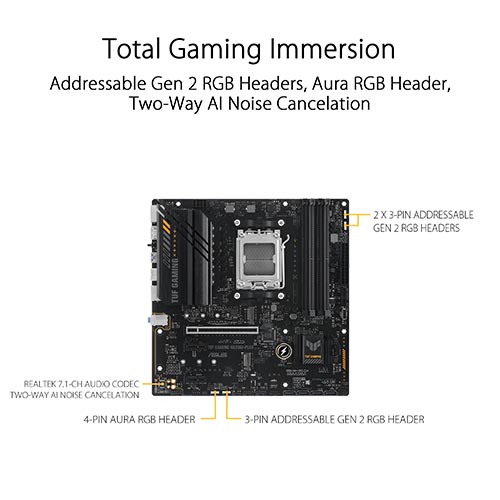

- Aura Sync RGB Lighting: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specification :
| Model Number | TUF GAMING A620M-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| Graphics | 2 x DisplayPort** |
| 1 x HDMI™ port*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Support max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 4.0 x16 slot | |
| AMD A620 Chipset | |
| 2 x PCIe 3.0 x1 slots | |
| * Please check the PCIe bifurcation table on the support site | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD A620 Chipset | |
| 4 x SATA 6Gb/s ports | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| USB | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 2 x DisplayPort | |
| 1 x HDMI™ port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS TUF PROTECTION |
| DIGI VRM | |
| ESD Guards | |
| TUF LANGuard | |
| Overvoltage Protection | |
| SafeSlot Core | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| Aura Sync | |
| Aura RGB header | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 2 | |
| Power Saving | |
| Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TurboV EVO | |
| DIGI VRM | |
| PC Cleaner | |
| TUF GAMING CPU-Z | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

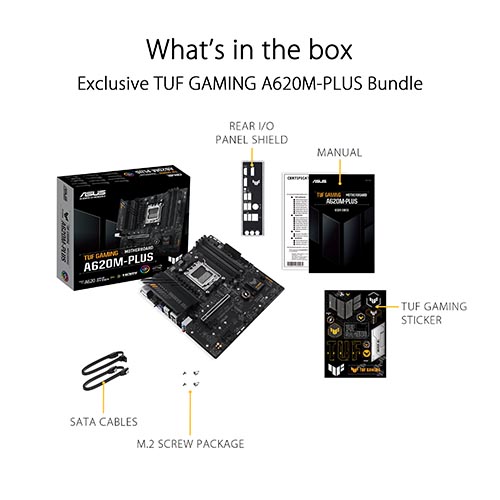

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x TUF Gaming sticker | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x TUF Certification card | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | |
| Warranty | 3 Years |
