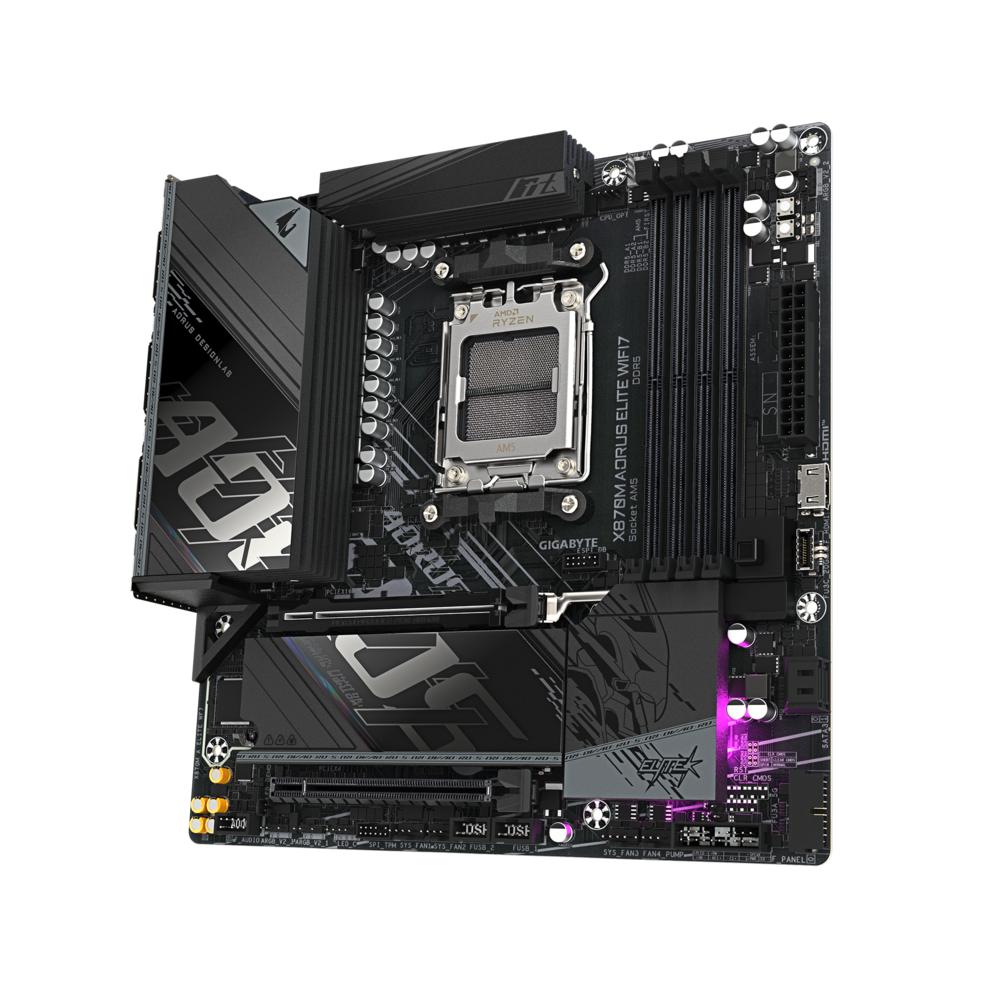

GIGABYTE X870M AORUS ELITE WIFI7 AMD X870 DDR5 AM5 Micro-ATX Gaming Motherboard
The GIGABYTE X870M AORUS ELITE WIFI7 is a premium Micro-ATX motherboard featuring the AMD X870 chipset and AM5 socket. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, up to 256GB DDR5 RAM, speeds up to 8200 MT/s (OC), PCIe 5.0, dual M.2 SSD slots, Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN and dual USB4 Type-C ports. Ideal for gaming PCs and high-performance desktop builds.
Product Enquiry
Interested in this product? Fill out the form below.
GIGABYTE X870M AORUS ELITE WIFI7 AMD X870 DDR5 Motherboard
The GIGABYTE X870M AORUS ELITE WIFI7 Motherboard is a high-performance Micro-ATX gaming motherboard designed for AMD Ryzen desktop processors. Powered by the AMD X870 chipset and AM5 socket, it supports Ryzen 9000, 8000 and 7000 Series processors.
Featuring DDR5 memory, PCIe 5.0 expansion, USB4 connectivity, advanced thermal solutions and Wi-Fi 7, this motherboard provides a powerful foundation for modern gaming and professional desktop systems.
Key Features
- AMD X870 Chipset: Advanced motherboard platform for AMD Ryzen processors.
- AMD AM5 Socket: Supports Ryzen 9000, 8000 and 7000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: DDR5 speeds up to 8200 MT/s (OC).
- PCIe 5.0 Graphics: PCIe 5.0 x16 slot with compatible Ryzen processors.
- Dual M.2 Storage: One PCIe 5.0 x4 and one PCIe 4.0 x4 NVMe SSD slot.
- Wi-Fi 7: High-speed wireless connectivity for compatible networks.
- Bluetooth 5.4: Wireless connectivity for compatible peripherals.
- 2.5GbE LAN: High-speed wired Ethernet networking.
- Dual USB4 Ports: Two USB Type-C connections supporting high-speed data transfer and DisplayPort output.
- 14+2+2 Digital VRM: Advanced processor power delivery.
- VRM Thermal Armor: Enhanced cooling for motherboard components.
- M.2 Thermal Guard: Helps maintain SSD performance under heavy workloads.
- Smart Fan 6: Intelligent cooling and fan management.
- Q-Flash Plus: BIOS updating without installing a CPU, RAM or graphics card.
- EZ-Latch Design: Simplifies compatible component installation.
- Micro-ATX Form Factor: Compact 244 × 244 mm design.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS |
| Model | X870M AORUS ELITE WIFI7 |
| Chipset | AMD X870 |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM |
| Maximum RAM | 256GB |
| Memory Speed | Up to 8200 MT/s (OC) |
| Memory Profile | AMD EXPO, Intel XMP |
| Primary PCIe Slot | PCIe 5.0 x16 |
| Additional Expansion | PCIe 4.0 x4 slot |
| Total M.2 Slots | 2 |
| M.2 Interface | 1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4 |
| SATA Ports | 2 × SATA 6Gb/s |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| LAN | Realtek 2.5GbE |
| Rear USB4 | 2 × Type-C |
| Front USB-C Header | USB 3.2 Gen 2×2, 20Gbps |
| Display Output | HDMI 2.1, DisplayPort via USB4 |
| Audio | Realtek ALC1220, 7.1 Channel |
| BIOS | Q-Flash Plus |
| Operating System | Windows 11 64-bit |
| Dimensions | 244 × 244 mm |
Why Choose GIGABYTE X870M AORUS ELITE WIFI7?
The GIGABYTE X870M AORUS ELITE WIFI7 combines fast DDR5 memory, PCIe 5.0 expansion, Wi-Fi 7 and dual USB4 ports in a compact Micro-ATX design.
Its advanced cooling, powerful VRM configuration and modern connectivity make it an excellent choice for gaming desktops, content creation systems and custom-built AMD Ryzen PCs.
Upgrade your gaming computer with the GIGABYTE X870M AORUS ELITE WIFI7 Motherboard for reliable performance, advanced connectivity and next-generation computing.
