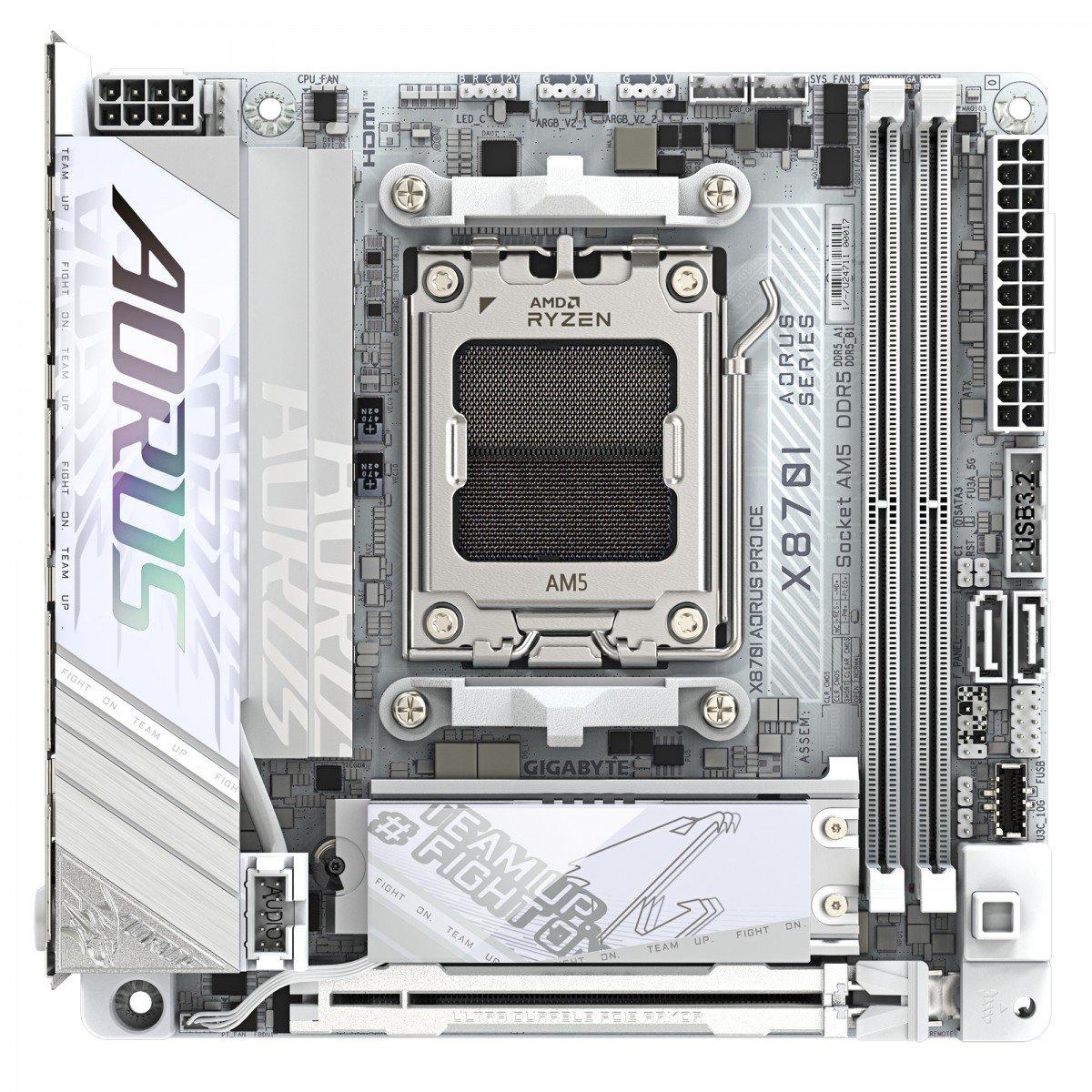

GIGABYTE X870I AORUS PRO ICE AMD X870 DDR5 AM5 Mini-ITX Gaming Motherboard
The GIGABYTE X870I AORUS PRO ICE is a premium Mini-ITX motherboard powered by the AMD X870 chipset and AM5 socket. Supporting AMD Ryzen 9000, 8000 and 7000 Series processors, it features up to 128GB DDR5 RAM, 8400 MT/s (OC), PCIe 5.0, dual M.2 SSD slots, Wi-Fi 7, Bluetooth 5.4, USB4 40Gbps and 2.5GbE LAN. Its white-and-silver design is ideal for compact gaming PCs.
Product Enquiry
Interested in this product? Fill out the form below.
GIGABYTE X870I AORUS PRO ICE WiFi 7 AMD Motherboard
The GIGABYTE X870I AORUS PRO ICE Motherboard is a premium Mini-ITX gaming motherboard designed for powerful AMD Ryzen desktop systems. Featuring the AMD X870 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000 and 7000 Series processors.
Equipped with DDR5 memory, PCIe 5.0 expansion, high-speed M.2 storage, Wi-Fi 7 and USB4 connectivity, this motherboard provides advanced performance in a compact white-and-silver design.
Key Features
- AMD X870 Chipset: Advanced platform for AMD Ryzen desktop processors.
- AMD AM5 Socket: Compatible with Ryzen 9000, 8000 and 7000 Series processors.
- DDR5 Memory: Two DIMM slots supporting up to 128GB RAM.
- Memory Overclocking: Supports DDR5 speeds up to 8400 MT/s (OC).
- PCIe 5.0 Graphics: High-speed PCIe 5.0 x16 expansion with compatible processors.
- Dual M.2 Storage: One PCIe 5.0 x4 and one PCIe 4.0 x4 NVMe SSD slot.
- Wi-Fi 7: High-speed wireless networking for compatible routers.
- Bluetooth 5.4: Wireless connectivity for compatible accessories.
- 2.5GbE LAN: Fast wired Ethernet networking.
- USB4 40Gbps: High-speed USB Type-C connectivity with DisplayPort support.
- 8+2+1 Digital VRM: Reliable power delivery for demanding workloads.
- VRM Thermal Armor: Advanced motherboard cooling.
- M.2 Thermal Guard: Helps control NVMe SSD temperatures.
- Smart Fan 6: Intelligent system cooling controls.
- Q-Flash Plus: Convenient BIOS updating without installing CPU or RAM.
- AMD EXPO & XMP: Supports compatible DDR5 memory profiles.
- Mini-ITX Form Factor: Compact 170 × 170 mm design.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS |
| Model | X870I AORUS PRO ICE |
| Chipset | AMD X870 |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | Mini-ITX |
| Memory Type | DDR5 |
| Memory Slots | 2 DIMM |
| Maximum RAM | 128GB |
| Memory Speed | Up to 8400 MT/s (OC) |
| Memory Profiles | AMD EXPO, Intel XMP |
| Primary PCIe Slot | PCIe 5.0 x16 |
| M.2 Slots | 2 |
| M.2 Interfaces | PCIe 5.0 x4 and PCIe 4.0 x4 |
| SATA Ports | 2 × SATA 6Gb/s |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Ethernet | Realtek 2.5GbE LAN |
| Rear USB4 | 1 × USB Type-C 40Gbps |
| Additional USB-C | USB 3.2 Gen 2 10Gbps |
| Display Outputs | HDMI 2.1, DisplayPort via USB4 |
| Audio | Realtek ALC4080, 2-Channel HD Audio |
| BIOS Feature | Q-Flash Plus |
| Operating System | Windows 11 64-bit |
| Dimensions | 170 × 170 mm |
| Colour | White and Silver |
Why Choose GIGABYTE X870I AORUS PRO ICE?
The GIGABYTE X870I AORUS PRO ICE combines DDR5 performance, PCIe 5.0 expansion and Wi-Fi 7 connectivity in a compact Mini-ITX motherboard.
Its premium white-and-silver design, dual M.2 storage, powerful cooling and advanced connectivity make it an excellent choice for small-form-factor gaming PCs, content creation systems and premium AMD Ryzen desktop builds.
Upgrade your compact gaming PC with the GIGABYTE X870I AORUS PRO ICE Motherboard for powerful performance, modern connectivity and premium design.
