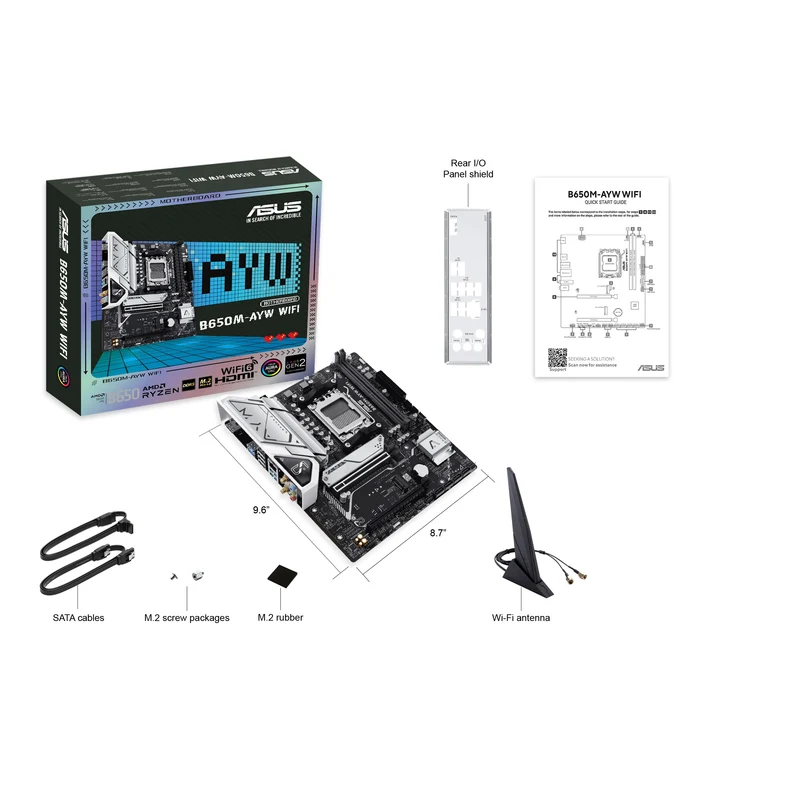

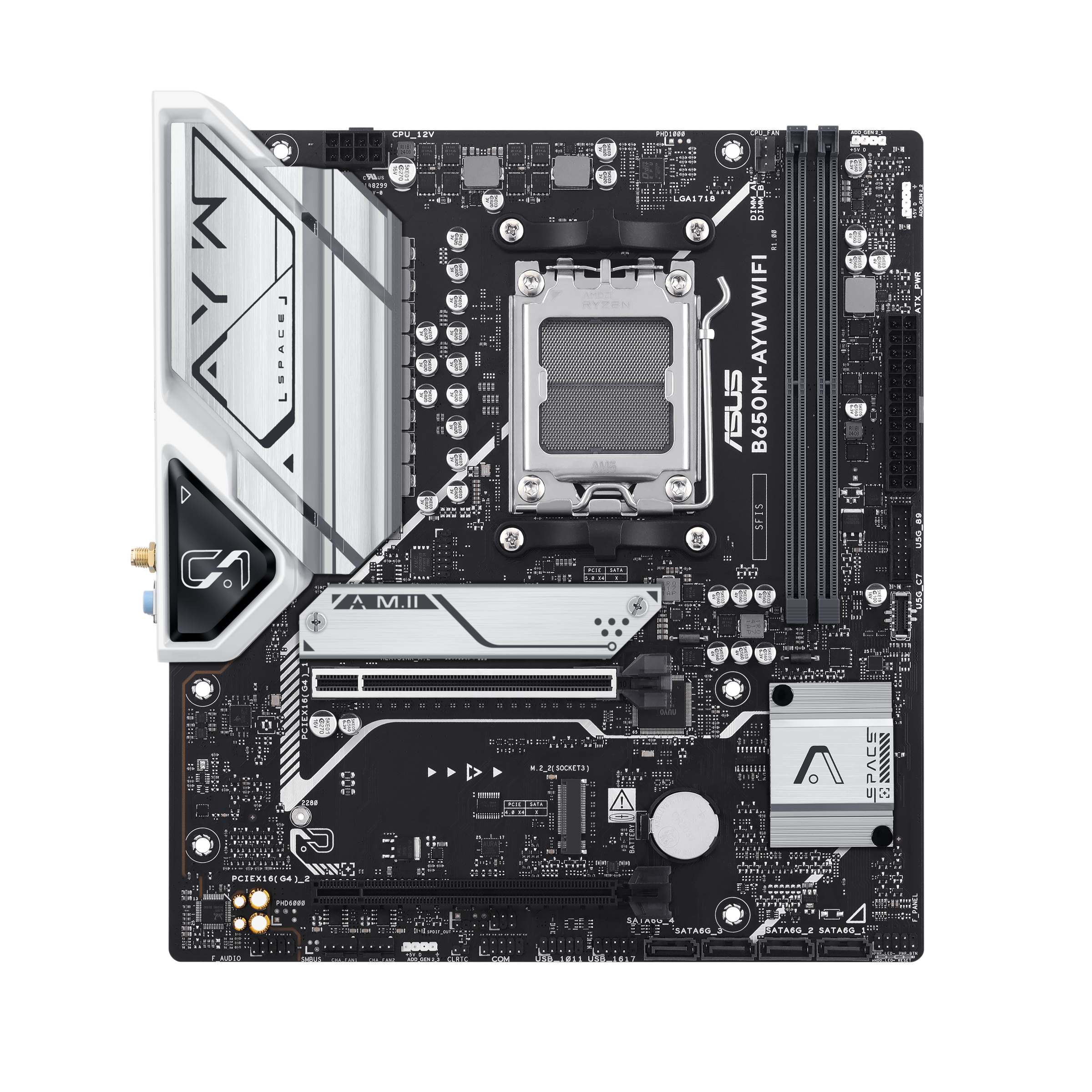

ASUS B650M-AYW WiFi AMD AM5 DDR5 Micro-ATX Motherboard
Build a powerful and efficient desktop PC with the ASUS B650M-AYW WiFi Motherboard. Designed for AMD Ryzen 9000, 8000 and 7000 Series desktop processors, this motherboard combines modern DDR5 memory technology, advanced storage connectivity and wireless networking in a compact Micro-ATX form factor.
Powered by the AMD B650 chipset, the ASUS B650M-AYW WiFi provides a versatile platform for gaming, office productivity, content creation and everyday multitasking.
The motherboard features two DDR5 DIMM slots supporting up to 96GB memory and speeds up to 8000+ MT/s (OC). ASUS OptiMem II technology helps improve memory signal integrity, stability and overclocking potential.
For storage performance, it includes two M.2 SSD slots, with PCIe 5.0 x4 support on the primary slot when using compatible Ryzen 9000 or 7000 Series processors. Four SATA 6Gb/s ports provide additional storage expansion.
Built-in Wi-Fi 6 and Realtek 2.5 Gigabit Ethernet offer flexible network connectivity. ASUS cooling features, Aura Sync lighting support and Two-Way AI Noise Cancelation make it a practical foundation for modern desktop PC builds.
Key Features:
- AMD AM5 socket supporting Ryzen 9000, 8000 and 7000 Series processors
- AMD B650 chipset
- Compact Micro-ATX motherboard design
- Two DDR5 DIMM memory slots
- Supports up to 96GB DDR5 RAM
- Memory speeds up to 8000+ MT/s (OC)
- AMD EXPO memory profile support
- ASUS OptiMem II memory optimization
- PCIe 4.0 x16 primary graphics card slot
- PCIe 5.0 x4 M.2 SSD storage support with compatible processors
- Two M.2 SSD slots
- Four SATA 6Gb/s storage ports
- Built-in Wi-Fi 6 wireless connectivity
- Realtek 2.5 Gigabit Ethernet LAN
- Rear USB 10Gbps Type-A ports
- Front USB 5Gbps Type-C header
- HDMI 2.1 display output
- Realtek 7.1-channel HD audio
- ASUS Two-Way AI Noise Cancelation
- VRM and M.2 heatsinks
- ASUS 5X Protection III technology
- ASUS Aura Sync RGB lighting support
- ASUS M.2 Q-Latch for easy installation
Why Choose ASUS B650M-AYW WiFi?
The ASUS B650M-AYW WiFi Motherboard offers an excellent combination of AMD Ryzen processor compatibility, fast DDR5 memory, modern SSD storage and reliable wireless connectivity. Its compact Micro-ATX design is suitable for home computers, office desktops and gaming PC builds without requiring a full-size ATX motherboard.
 Product Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | B650M-AYW WiFi |
| Chipset | AMD B650 |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 9000/8000/7000 Series |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Memory Slots | 2 DIMM |
| Maximum RAM | 96GB |
| Memory Speed | Up to 8000+ MT/s (OC) |
| Memory Profile | AMD EXPO |
| Primary PCIe Slot | PCIe 4.0 x16 |
| Secondary PCIe Slot | PCIe 4.0 x16 (x4 mode) |
| M.2 SSD Slots | 2 |
| Primary M.2 | Up to PCIe 5.0 x4, CPU dependent |
| Secondary M.2 | PCIe 4.0 x4, CPU dependent |
| SATA Ports | 4 × SATA 6Gb/s |
| Wireless | Wi-Fi 6 |
| Ethernet | Realtek 2.5GbE |
| Audio | Realtek 7.1-channel HD Audio |
| Video Output | HDMI 2.1 |
| Rear USB | 2 × 10Gbps, 2 × 5Gbps, 4 × USB 2.0 |
| Front USB-C Header | USB 5Gbps |
| Lighting Support | ASUS Aura Sync |
| Operating System | Windows 11 / Windows 10 64-bit |
| Dimensions | 24.4 × 22.1 cm |
