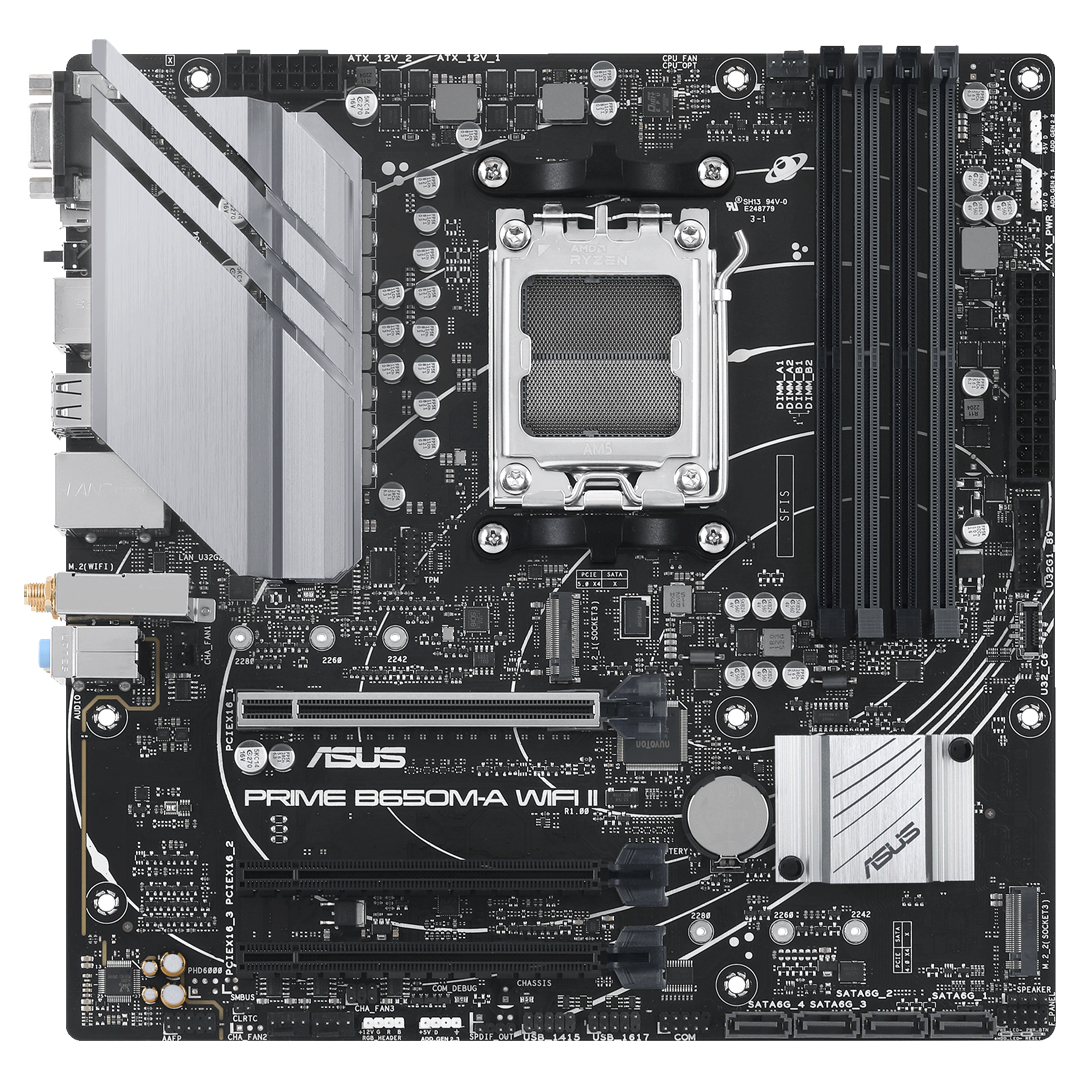

ASUS PRIME B650M-A WIFI II AMD AM5 DDR5 Micro-ATX Motherboard
The ASUS PRIME B650M-A WIFI II Motherboard supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Featuring the AMD B650 chipset, DDR5 memory, PCIe 5.0 M.2 storage, Wi-Fi 6, Bluetooth 5.2 and Realtek 2.5Gb Ethernet, this Micro-ATX motherboard delivers reliable performance for gaming, productivity and professional PC builds.
Product Enquiry
Interested in this product? Fill out the form below.
ASUS PRIME B650M-A WIFI II AMD AM5 DDR5 Micro-ATX Motherboard
Build a powerful and efficient desktop PC with the ASUS PRIME B650M-A WIFI II Motherboard, designed for AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Powered by the AMD B650 chipset, this Micro-ATX motherboard combines advanced DDR5 memory technology, modern connectivity and efficient cooling for a dependable computing experience.
The ASUS PRIME B650M-A WIFI II features four DDR5 DIMM slots supporting up to 192GB memory and overclocked speeds up to 7600+ MT/s. ASUS OptiMem II technology helps improve memory stability and signal integrity, while AMD EXPO support simplifies memory performance tuning.
For high-speed storage, the motherboard offers two M.2 SSD slots, including PCIe 5.0 x4 support with compatible Ryzen processors. Four SATA 6Gb/s ports provide additional storage expansion for SSDs and hard drives.
Integrated Wi-Fi 6, Bluetooth 5.2 and Realtek 2.5 Gigabit Ethernet enable reliable wired and wireless networking. ASUS Fan Xpert 2+, VRM heatsinks and comprehensive protection features contribute to cooling performance and system reliability.
Key Features:
- AMD AM5 socket supporting Ryzen 9000, 8000 and 7000 Series desktop processors
- AMD B650 chipset with Micro-ATX form factor
- Four DDR5 DIMM memory slots
- Supports up to 192GB DDR5 RAM
- DDR5 memory speeds up to 7600+ MT/s (OC)
- AMD EXPO memory profile support
- ASUS OptiMem II memory optimization
- PCIe 4.0 x16 graphics card slot
- Two M.2 NVMe SSD storage slots
- PCIe 5.0 x4 M.2 storage support with compatible CPUs
- Four SATA 6Gb/s ports
- Built-in Wi-Fi 6 wireless networking
- Bluetooth 5.2 connectivity
- Realtek 2.5 Gigabit Ethernet LAN
- USB 3.2 Gen 2 Type-A connectivity
- Front USB 3.2 Gen 1 Type-C header
- HDMI 2.1, DisplayPort 1.4 and VGA outputs
- Realtek 7.1-channel HD audio
- ASUS Fan Xpert 2+ cooling controls
- ASUS 5X Protection III technology
- ASUS Aura Sync RGB lighting support
- ASUS BIOS FlashBack support
Why Choose ASUS PRIME B650M-A WIFI II?
The ASUS PRIME B650M-A WIFI II Motherboard offers a balanced combination of AMD Ryzen performance, DDR5 memory, advanced storage and reliable networking. Its compact Micro-ATX design makes it suitable for gaming desktops, office computers, content creation systems and custom PC builds.
 Product Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Series | PRIME |
| Model | B650M-A WIFI II |
| Chipset | AMD B650 |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 9000/8000/7000 Series |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM |
| Maximum RAM | 192GB |
| Memory Speed | Up to 7600+ MT/s (OC) |
| Memory Profiles | AMD EXPO |
| Main Graphics Slot | PCIe 4.0 x16 |
| Additional PCIe Slots | 2 × PCIe 4.0 x16 (x1 mode) |
| M.2 SSD Slots | 2 |
| Primary M.2 | PCIe 5.0 x4 with compatible CPUs |
| Secondary M.2 | PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| Wireless | Wi-Fi 6 |
| Bluetooth | 5.2 |
| LAN | Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 HD Audio |
| Display Outputs | HDMI, DisplayPort, VGA |
| Rear USB | 8 Type-A ports |
| Front USB-C | USB 3.2 Gen 1 header |
| BIOS | UEFI BIOS with BIOS FlashBack |
| RGB Support | ASUS Aura Sync |
| Operating System | Windows 11 / Windows 10 64-bit |
| Dimensions | 24.4 × 24.4 cm |
