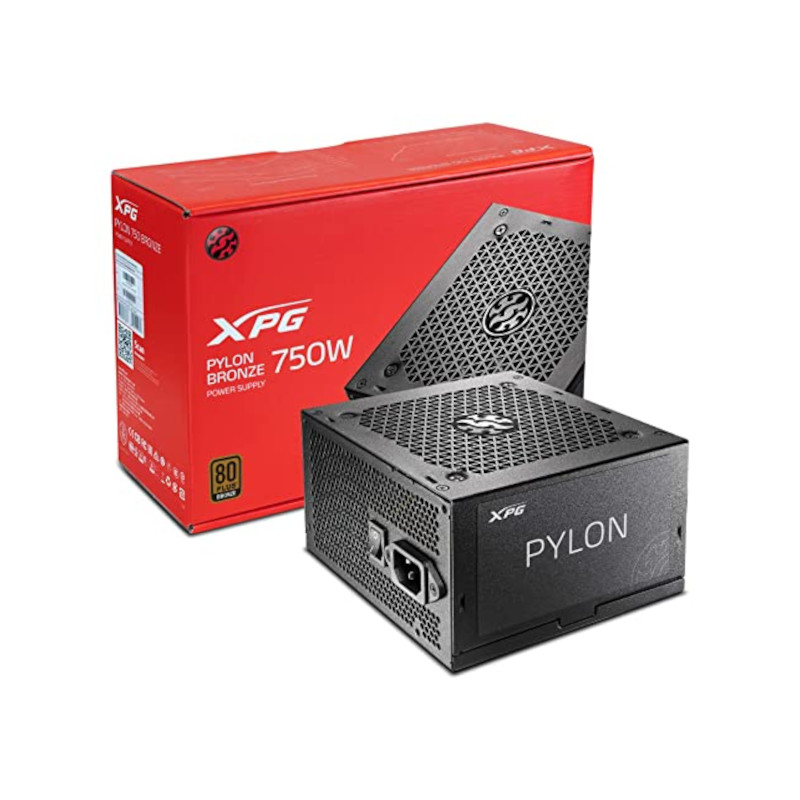

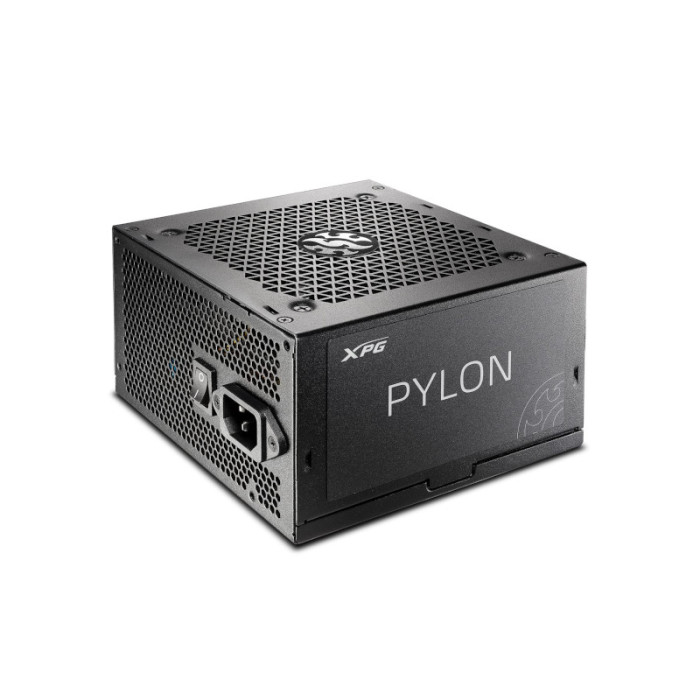

XPG PYLON 750W 80 PLUS Bronze Power Supply

The XPG PYLON 750W combines continuous power delivery, certified efficiency and comprehensive electrical protection in a compact ATX SMPS. With a rated output of 750W, it provides a power solution for compatible gaming desktops, productivity computers and custom PC builds. Its design includes DC-to-DC converters, a Japanese main capacitor and a 120mm cooling fan.

For users assembling a new computer or replacing an existing power supply, the PYLON 750W offers clearly documented power and connection specifications. Select it according to your processor, graphics card, motherboard and other installed components, allowing suitable capacity for the complete system.

XPG PYLON 750W with 80 PLUS Bronze Certification

The XPG PYLON 750W carries 80 PLUS Bronze certification, with efficiency assessed at defined load levels. This provides an established reference when comparing the power-conversion efficiency of desktop power supplies.

The 750W model also has a Cybenetics Silver efficiency rating. These are separate certification systems, so its 80 PLUS classification remains Bronze. The PYLON series additionally complies with ErP 2014 Lot 3 requirements and is designed for continuous system operation.

DC-to-DC Conversion for Consistent Power Delivery

DC-to-DC circuitry helps regulate the power delivered to connected components. XPG highlights this design for reducing ripple and managing unbalanced loads, supporting consistent electrical output across compatible desktop configurations.

The manufacturer’s installation guide lists the 750W model’s +12V rail at 62.5A, corresponding to a maximum output of 750W on that rail. Check the complete system requirements when choosing your PSU, including the graphics card manufacturer’s recommended power supply capacity.

Japanese Main Capacitor Rated at 105°C

The XPG PYLON 750W uses a Japanese main capacitor rated at 105°C. This component forms part of the manufacturer’s design for durability and stable operation.

Alongside the capacitor, the power-conversion circuitry, cooling system and electrical safeguards contribute to the PSU’s overall specification. This combination gives buyers several concrete features to assess when selecting a power supply for regular desktop use.

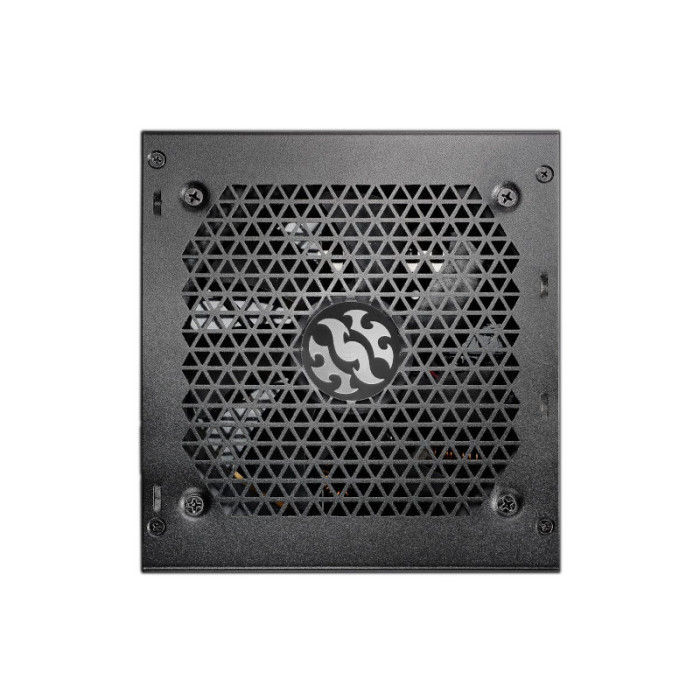

120mm Cooling Fan

A built-in 120mm fan moves air through the power supply to help dissipate heat from its internal components. XPG lists Fluid Dynamic Bearing technology for the series, with selected regional units using dual-ball bearings.

The fan responds to operating conditions and electrical load. During installation, maintain clearance around ventilation openings and route cables so they do not obstruct airflow. A suitable cabinet layout helps the power supply’s cooling system operate as intended.

Connections for Graphics Cards, Storage and Motherboards

The PYLON 750W includes four PCIe 6+2-pin connectors, providing connections for compatible graphics cards. Its cable configuration also includes a motherboard 20+4-pin connector, one CPU 4+4-pin connector and an additional CPU 8-pin connector.

For storage and peripherals, it provides eight SATA connectors, three Molex 4-pin connectors and one floppy 4-pin connector. Check both connector types and quantities against your components before purchasing, particularly when using several drives or a motherboard with additional CPU power connections.

Eight Electrical Protection Mechanisms

The XPG PYLON 750W includes over-current, over-voltage, under-voltage, over-power, short-circuit and over-temperature protection. No-load operation protection and surge/inrush protection complete the manufacturer’s eight listed safeguards.

These mechanisms address different electrical operating conditions and complement the PSU’s cooling and conversion circuitry. Follow the supplied installation instructions and connect each component using the appropriate power cable.

Compact ATX Dimensions and Manufacturer Warranty

The power supply measures 140 × 150 × 86mm. Confirm that your cabinet supports its mounting dimensions and provides sufficient space for cable routing.

XPG lists a 5-year warranty for current purchases. Review the official XPG PYLON features and specifications, and explore more IT products at Aadinath Peripherals & Consumables when planning your desktop build.
