Adata XPG PYLON 550W 80 PLUS Bronze ATX Power Supply

XPG PYLON 550W 80 PLUS Bronze SMPS

The XPG PYLON 550W combines certified efficiency, DC-to-DC power conversion and comprehensive electrical protection in a compact ATX power supply. Designed for compatible desktop computers, it delivers 550W of continuous power for configurations operating within its rated capacity. Its feature set includes a Japanese main capacitor, a 120mm cooling fan and connections for the motherboard, processor, graphics card and storage devices.

Whether you are assembling a new desktop or replacing an existing SMPS, the PYLON 550W offers a clearly specified power solution. Match its capacity and connectors to your components to build a balanced system for everyday computing, office applications, entertainment or compatible gaming hardware.

XPG PYLON 550W with 80 PLUS Bronze Efficiency

The XPG PYLON 550W carries 80 PLUS Bronze certification. This certification assesses power-conversion efficiency at defined load levels, helping buyers compare efficiency using an established standard.

The series also complies with ErP 2014 Lot 3 requirements and is designed for continuous system operation. Efficient conversion is particularly relevant for computers used regularly throughout the day, where both the power supply’s capacity and its operating characteristics deserve consideration.

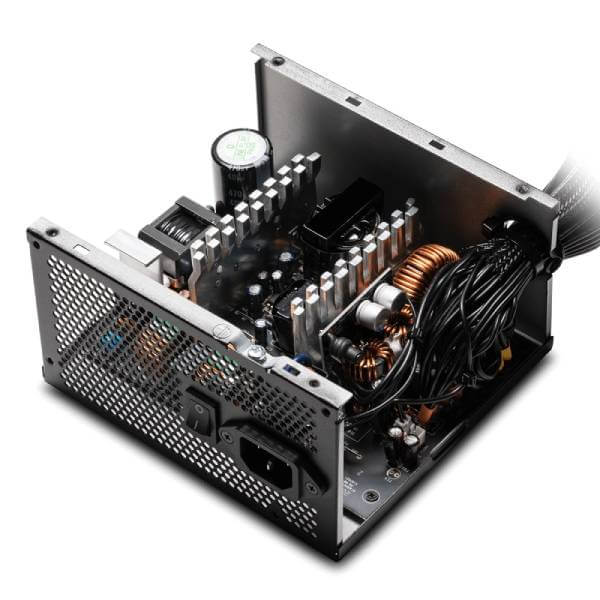

DC-to-DC Circuit for Consistent Power Delivery

DC-to-DC converters form an important part of the PYLON’s electrical design. XPG highlights this circuitry for maintaining consistent power delivery, reducing ripple and managing unbalanced loads across the power supply’s outputs.

The 550W model’s +12V output is rated at 45.5A, providing up to 546W on that rail. This specification is useful when assessing the power requirements of compatible processors and graphics cards. The PSU’s total continuous output remains 550W.

120mm Fan for Internal Cooling

A built-in 120mm cooling fan moves air through the power supply to help remove heat from its internal components. XPG specifies Fluid Dynamic Bearing technology for the series, while noting that selected regional units use dual-ball bearings.

Fan operation responds to the PSU’s operating conditions. Keeping the cabinet’s ventilation openings clear and allowing suitable airflow around the power supply helps its cooling system perform as intended during normal use.

Japanese Main Capacitor Rated at 105°C

The XPG PYLON 550W uses a Japanese main capacitor rated at 105°C. XPG identifies this component as part of the design supporting durability and stable operation.

This capacitor works alongside the conversion circuitry, cooling system and protection mechanisms. Together, these features provide a practical combination for users comparing power supplies by component specifications, connection options and manufacturer support.

Connections for Your Desktop Components

The 550W model includes one motherboard 20+4-pin connector, one CPU 4+4-pin connector and two PCIe 6+2-pin connectors. Storage and peripheral connections include five SATA, two Molex 4-pin and one floppy 4-pin connector.

Check these connections against your motherboard and graphics card before purchasing. A suitable wattage rating alone does not establish compatibility; the system must also have the required connections and remain within the PSU’s electrical capacity.

Eight Electrical Protection Mechanisms

The PYLON includes over-current, over-voltage, under-voltage, over-power, short-circuit and over-temperature protection. No-load operation protection and surge/inrush protection complete the eight manufacturer-listed safeguards.

These protections address different electrical conditions and form part of the PSU’s overall operating design. For a new build or replacement installation, use the supplied documentation and follow the connection instructions for each component.

Compact Dimensions and Manufacturer Support

Measuring 140 × 150 × 86mm, the XPG PYLON 550W fits compatible ATX PSU mounting areas. Confirm cabinet clearance and allow space for cable routing before installation.

XPG lists a 5-year warranty for current purchases. Review the official XPG PYLON features and specifications

XPG PYLON 550W Specifications

550W connector configuration
