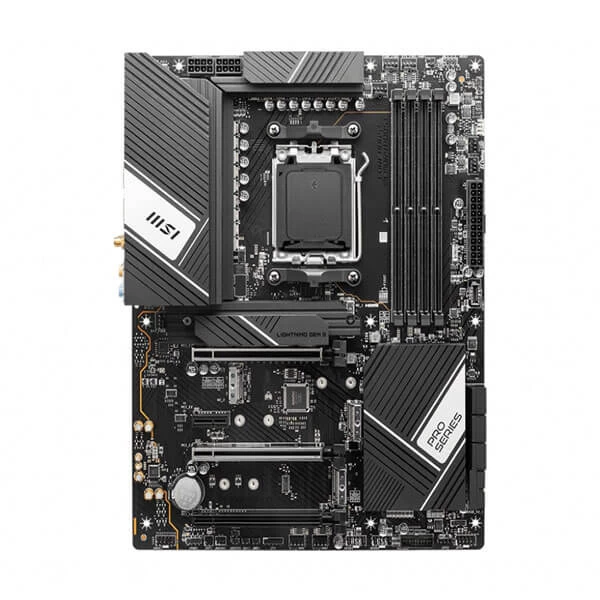

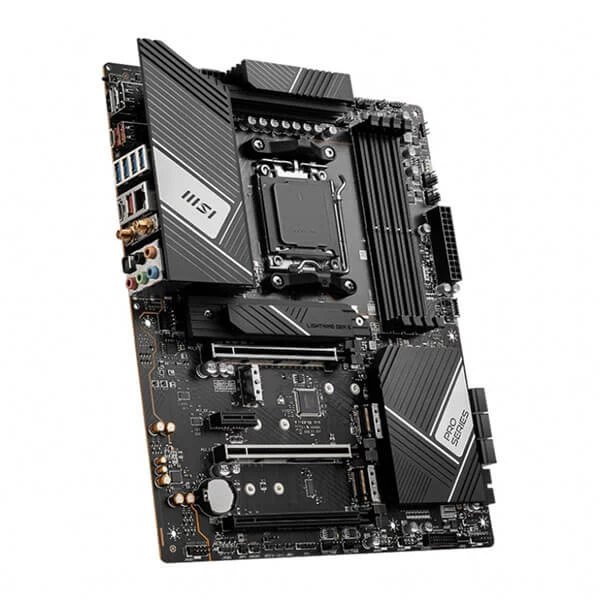

MSI PRO X670-P WIFI DDR5 AM5 AMD Ryzen 7000 Series ATX Motherboard
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Product Enquiry
Interested in this product? Fill out the form below.
MSI PRO X670-P WIFI DDR5 AM5 AMD Ryzen 7000 Series ATX Motherboard
Overview :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6600 MHz (OC)
- Enhanced Power Design: 14 2 1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification :
| Model | |
| Brand | MSI |
| Series | PRO |
| Model | PRO X670-P WIFI |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Socket AM5 | |
| Chipsets | |
| Chipset | AMD X670 |
| Memory | |
| Number of Memory Slots | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express x16 | 3x PCI-E x16 slot |
| Supports x16/x4/x2 | |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From CPU) | |
| PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) | |
| Storage Devices | |
| SATA 6Gb/s | 4x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 6x SATA 6G port | |
| M.2 | 4 x M.2 |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| *SATA_A1 & SATA_A2 do not support RAID function. | |
| Onboard Audio | |
| Audio Chipset | Realtek® ALC4080 Codec |
| Audio Channels | 7.1-Channel High Definition Audio |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Onboard LAN | |
| LAN Chipset | Realtek® RTL8125BG 2.5G LAN |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Bluetooth | Supports Bluetooth® 5.2** |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
| ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. | |

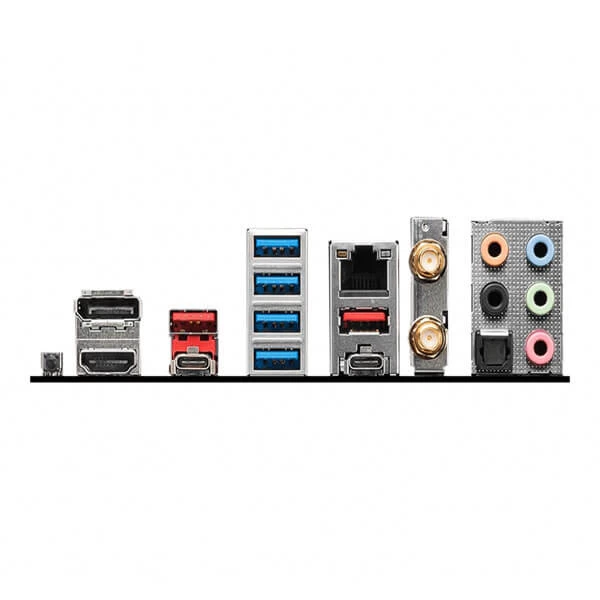

| Rear Panel Ports | |
| Back I/O Ports | DisplayPort |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| Flash BIOS Button | |
| HDMI™ | |
| USB 3.2 Gen 2 10Gbps (Type-C Display port) | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| S/PDIF-OUT | |
| HDMI | 1 x HDMI |
| Internal I/O Connectors | |
| Other Connectors | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 4x USB 2.0 ports | |
| 4x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Windows 11 Compatibility | |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Weight | 2 kg |
|---|---|
| brand | MSI |
| motherboard-max-ram-support | 256 GB |
| motherboard-chipset | AMD X670 |
| motherboard-form-factor | ATX |
| motherboard-socket | AM5 |
| ram-type | DDR5 |
| product-category | Motherboard |
| warranty | 3 Years |
