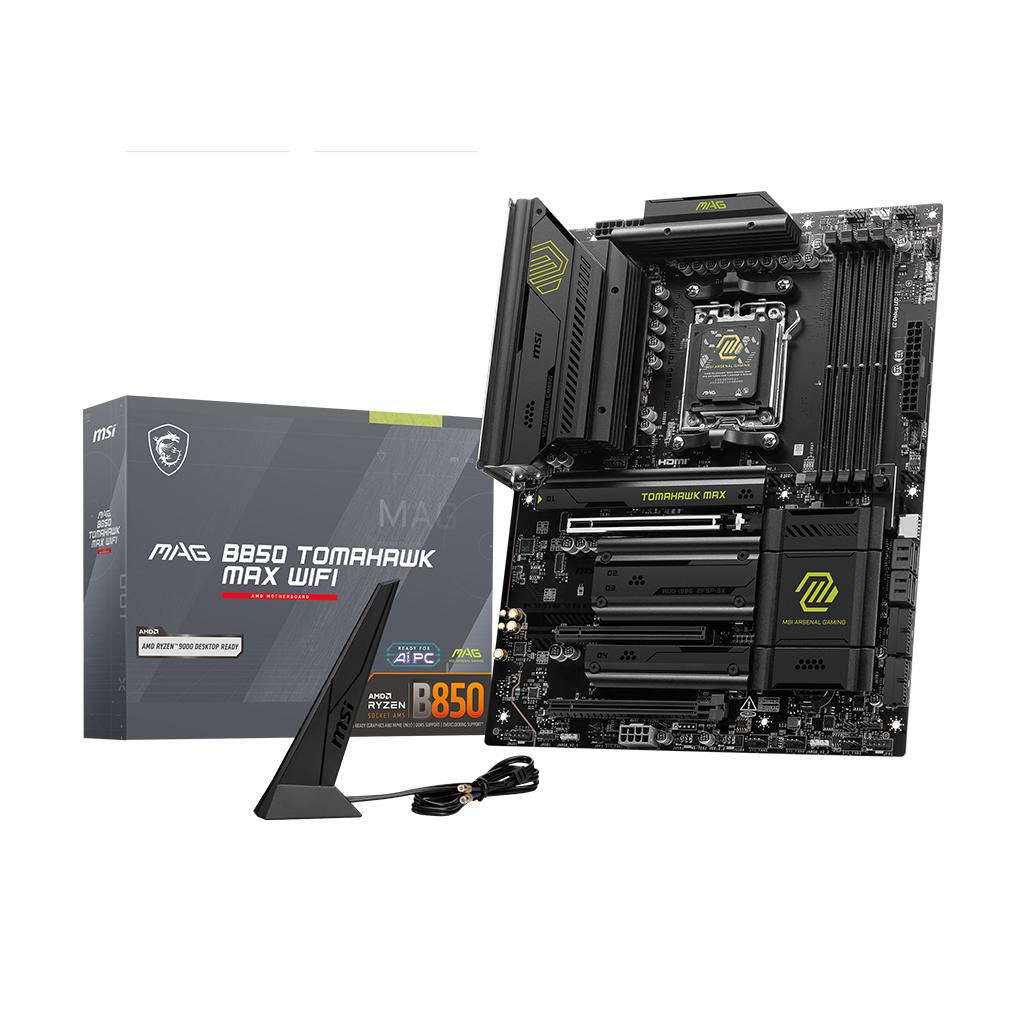

MSI MAG B850 TOMAHAWK MAX WIFI AMD B850 DDR5 AM5 ATX Gaming Motherboard
The MSI MAG B850 TOMAHAWK MAX WIFI is a powerful ATX gaming motherboard featuring the AMD B850 chipset and AM5 socket. Supporting AMD Ryzen 9000, 8000 and 7000 Series processors, it offers up to 256GB DDR5 memory, 8400+ MT/s (OC), PCIe 5.0 graphics, four M.2 SSD slots, Wi-Fi 7, Bluetooth 5.4, 5G LAN and front USB 20Gbps Type-C connectivity. Ideal for gaming PCs and high-performance desktop builds.
Product Enquiry
Interested in this product? Fill out the form below.

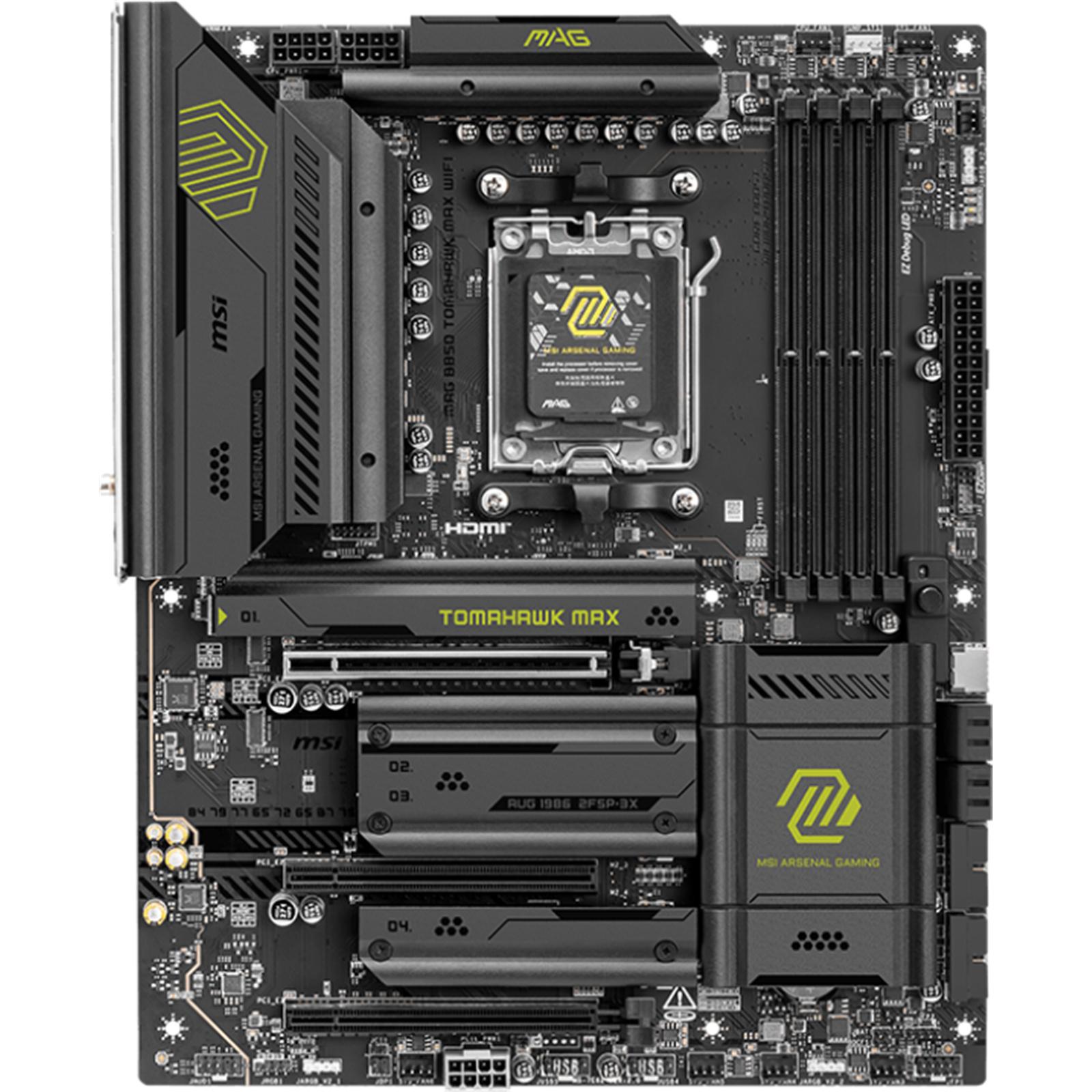

MSI MAG B850 TOMAHAWK MAX WIFI DDR5 AMD Gaming Motherboard
The MSI MAG B850 TOMAHAWK MAX WIFI Motherboard is a high-performance ATX gaming motherboard designed for powerful AMD Ryzen desktop systems. Featuring the AMD B850 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
Equipped with DDR5 memory, PCIe 5.0 technology, Wi-Fi 7, 5G LAN and advanced cooling solutions, this motherboard delivers outstanding connectivity and expansion options for gaming, content creation and professional computing.
Key Features
- AMD B850 Chipset: Designed for next-generation AMD Ryzen processors.
- AMD AM5 Socket: Supports AMD Ryzen 9000, 8000 and 7000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: DDR5 speeds up to 8400+ MT/s (OC).
- PCIe 5.0 Graphics: PCIe 5.0 x16 expansion for compatible graphics cards.
- Quad M.2 Storage: Two PCIe 5.0 and two PCIe 4.0 NVMe SSD connections.
- Wi-Fi 7: Advanced wireless networking for gaming and productivity.
- Bluetooth 5.4: Connectivity for compatible wireless accessories.
- 5G LAN: High-speed wired Ethernet networking.
- USB 20Gbps Type-C: Fast front-panel USB connectivity.
- 14+2+1 Power Design: Duet Rail Power System with 80A Smart Power Stages.
- Extended Heatsink Design: Improved cooling for demanding computing.
- EZ M.2 Shield Frozr II: Convenient SSD installation and thermal protection.
- EZ PCIe Release: Simplified graphics card removal.
- Audio Boost 5: High-quality 7.1-channel audio.
- AMD EXPO Support: Convenient DDR5 memory profile optimization.
- ATX Form Factor: Compatible with supported gaming cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MAG B850 TOMAHAWK MAX WIFI |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 |
| RAM Slots | 4 DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8400+ MT/s (OC) |
| Memory Profile | AMD EXPO |
| Primary PCIe Slot | PCIe 5.0 x16 |
| Additional PCIe Slots | PCIe 4.0 x4, PCIe 3.0 x1 |
| Total M.2 Slots | 4 |
| M.2 Storage | 2 × PCIe 5.0 x4, 1 × PCIe 4.0 x4, 1 × PCIe 4.0 x2 |
| SATA Ports | 4 × SATA 6Gb/s |
| Wireless | Wi-Fi 7 |
| Bluetooth | 5.4 |
| LAN | Realtek 5Gbps Ethernet |
| Rear USB-C | USB 10Gbps |
| Front USB-C Header | USB 20Gbps |
| Video Output | HDMI 2.1 |
| Audio | Realtek ALC4080, 7.1 Channel |
| Power Design | 14+2+1 Duet Rail, 80A SPS |
| Operating System | Windows 11 64-bit |
| Dimensions | 304.8 × 243.84 mm |
Why Choose MSI MAG B850 TOMAHAWK MAX WIFI?
The MSI MAG B850 TOMAHAWK MAX WIFI combines advanced DDR5 memory support, PCIe 5.0 graphics and storage, high-speed Wi-Fi 7 and premium cooling in a durable ATX motherboard.
Its four M.2 storage connections, 5G LAN and enhanced power delivery make it an excellent choice for enthusiast gaming PCs, creative workstations and custom AMD Ryzen desktop systems.
Upgrade your gaming desktop with the MSI MAG B850 TOMAHAWK MAX WIFI Motherboard for powerful performance, modern connectivity and reliable computing.
