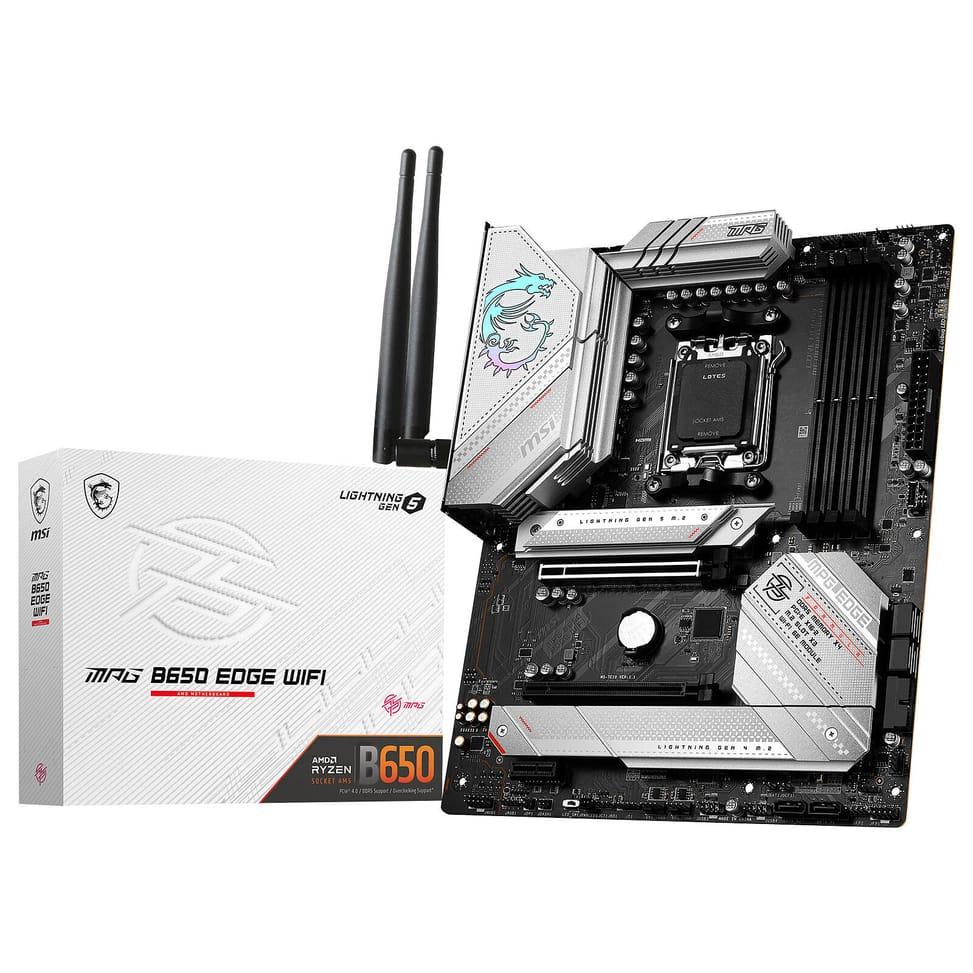

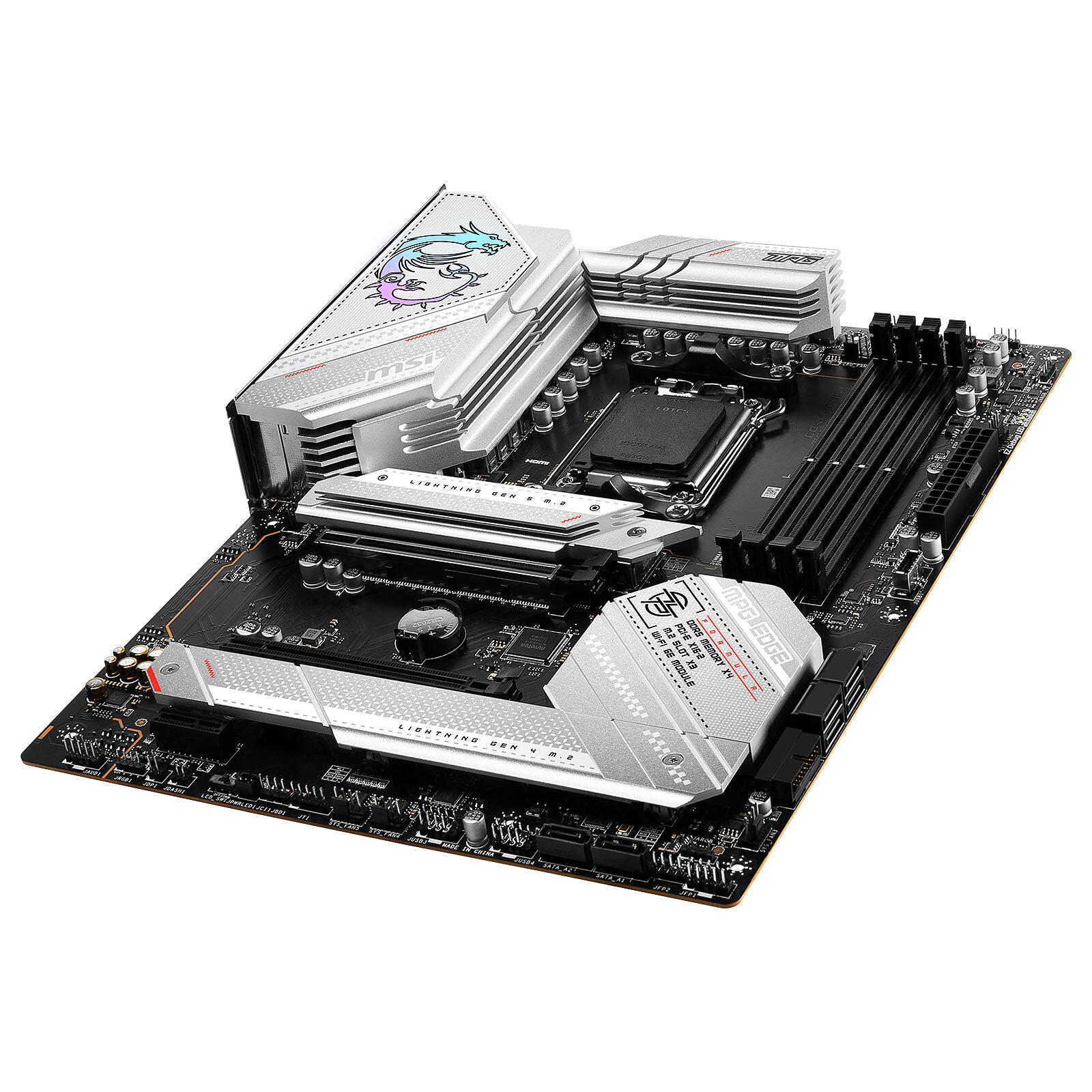

MSI MPG B650 Edge WIFI DDR5 AMD Motherboard
The MSI MPG B650 EDGE WIFI is a premium ATX motherboard featuring the AMD B650 chipset and AM5 socket. It supports AMD Ryzen 7000, 8000 and 9000 Series processors, up to 256GB DDR5 RAM, PCIe 5.0 M.2 storage, Wi-Fi 6E, Bluetooth 5.3 and 2.5G LAN. Ideal for gaming, content creation and high-performance AMD desktop builds.
Product Enquiry
Interested in this product? Fill out the form below.
MSI MPG B650 EDGE WIFI DDR5 AMD Motherboard
The MSI MPG B650 EDGE WIFI Motherboard is a premium ATX gaming motherboard designed for AMD Ryzen desktop processors. Powered by the AMD B650 chipset and AM5 socket, it supports AMD Ryzen 7000, 8000 and 9000 Series processors.
With high-speed DDR5 memory, PCIe 5.0 M.2 storage, Wi-Fi 6E and advanced thermal solutions, the MSI MPG B650 EDGE WIFI delivers reliable performance for gaming, content creation and professional computing.
Key Features
- AMD B650 Chipset: Designed for compatible AMD Ryzen desktop processors.
- AMD AM5 Socket: Supports Ryzen 7000, 8000 and 9000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: DDR5 speeds up to 7800+MHz (OC).
- PCIe 4.0 Graphics: High-speed PCIe x16 connectivity for compatible graphics cards.
- Triple M.2 Storage: One PCIe 5.0 x4 and two PCIe 4.0 x4 M.2 SSD slots.
- Wi-Fi 6E: Advanced wireless networking technology.
- Bluetooth 5.3: Reliable wireless peripheral connectivity.
- 2.5G LAN: Fast wired Ethernet networking.
- 14+2+1 Power Design: Efficient power delivery for demanding workloads.
- M.2 Shield Frozr: Helps prevent SSD thermal throttling.
- Lightning USB 20G: High-speed USB Type-C data transfers.
- Audio Boost 5: Immersive high-definition audio.
- Flash BIOS Button: Convenient BIOS updating.
- ATX Form Factor: Suitable for compatible desktop cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MPG B650 EDGE WIFI |
| Chipset | AMD B650 |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 7000 / 8000 / 9000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 |
| RAM Slots | 4 DIMM |
| Maximum RAM | 256GB |
| Memory Speed | Up to 7800+MHz (OC) |
| Memory Profile | AMD EXPO |
| Primary Graphics Slot | PCIe 4.0 x16 |
| M.2 Slots | 3 |
| M.2 Interface | 1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4 |
| SATA Ports | 6 × SATA 6Gb/s |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | 5.3 |
| LAN | 2.5Gbps Ethernet |
| USB | USB Type-A and USB Type-C |
| Rear USB-C | Up to 20Gbps |
| Display Output | HDMI 2.1, DisplayPort 1.4 |
| Audio | Realtek ALC4080, 7.1 Channel |
| Operating System | Windows 10 / 11 64-bit |
| Dimensions | 304.8 × 243.84 mm |
Why Choose MSI MPG B650 EDGE WIFI?
The MSI MPG B650 EDGE WIFI combines next-generation DDR5 memory, PCIe 5.0 SSD support, advanced cooling and fast wireless networking in a stylish silver-and-white ATX design.
Its powerful features make it suitable for gaming computers, creative workstations and custom AMD Ryzen desktop builds.
Upgrade your PC with the MSI MPG B650 EDGE WIFI Motherboard for reliable performance, fast connectivity and efficient computing.
