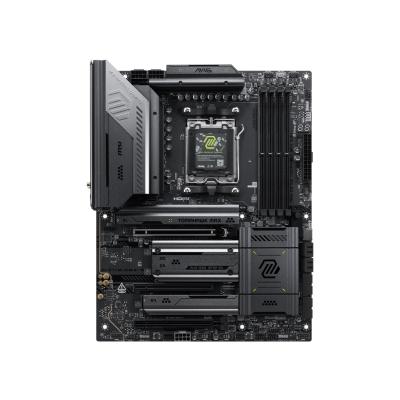

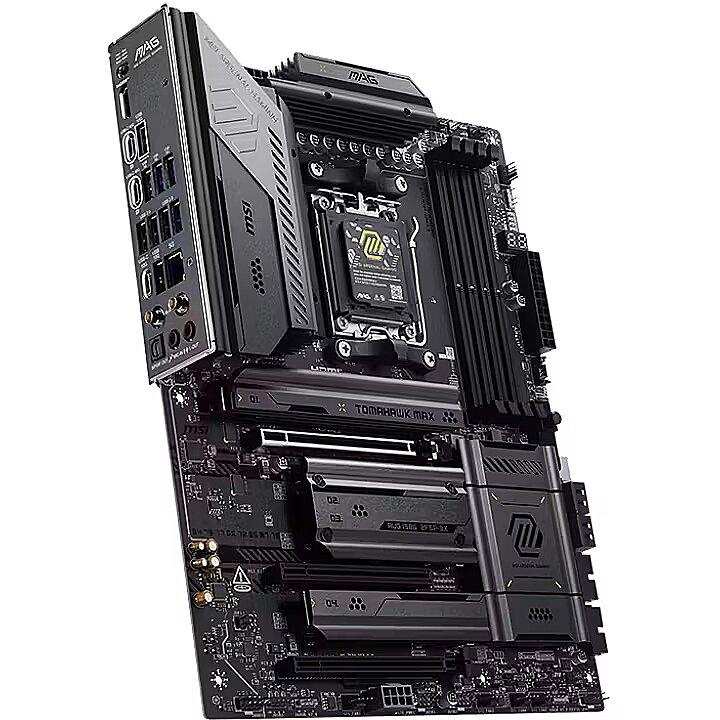

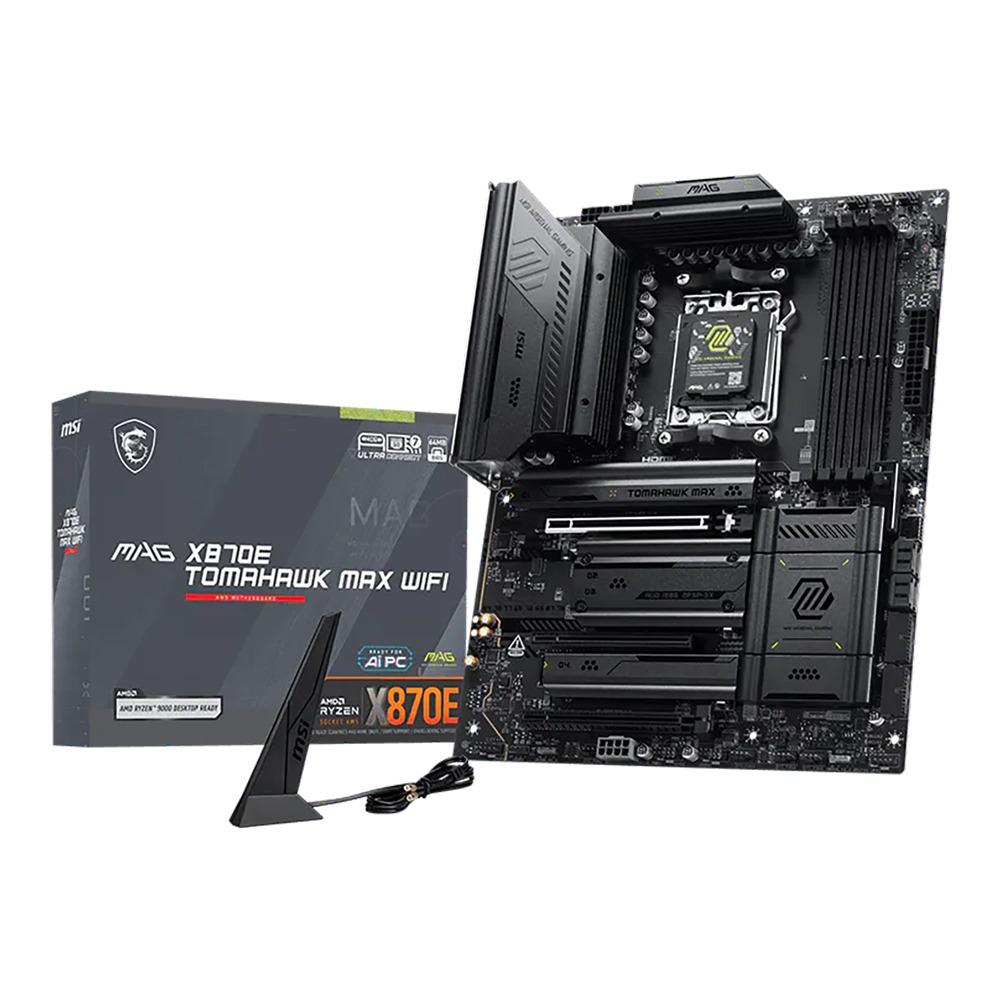

MSI MAG X870E TOMAHAWK MAX WIFI AMD X870E DDR5 AM5 ATX Gaming Motherboard
The MSI MAG X870E TOMAHAWK MAX WIFI is a premium ATX motherboard featuring the AMD X870E chipset and AM5 socket. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, up to 256GB DDR5 memory with 8400+ MT/s overclocking, PCIe 5.0, four M.2 SSD slots, Wi-Fi 7, Bluetooth 5.4, 5G LAN and USB4 40Gbps connectivity. Ideal for high-performance gaming PCs, content creation and professional desktop builds.
Product Enquiry
Interested in this product? Fill out the form below.
MSI MAG X870E TOMAHAWK MAX WIFI DDR5 AMD Motherboard
The MSI MAG X870E TOMAHAWK MAX WIFI Motherboard is a high-performance ATX gaming motherboard designed for demanding gamers, content creators and professional users. Powered by the AMD X870E chipset and AM5 socket, it supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
Featuring DDR5 memory, PCIe 5.0 technology, Wi-Fi 7, advanced thermal solutions and ultra-fast USB4 connectivity, this motherboard provides excellent performance and expandability for modern gaming systems.
Key Features
- AMD X870E Chipset: Premium platform for AMD Ryzen desktop processors.
- AMD AM5 Socket: Supports Ryzen 9000, 8000 and 7000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: Supports DDR5 speeds up to 8400+ MT/s (OC).
- PCIe 5.0 Graphics: High-speed PCIe 5.0 x16 expansion slot.
- Quad M.2 Storage: Two PCIe 5.0 x4 and two PCIe 4.0 x4 M.2 slots.
- Wi-Fi 7: High-speed wireless networking with compatible routers.
- Bluetooth 5.4: Wireless connectivity for compatible peripherals.
- 5G LAN: High-speed wired Ethernet connectivity.
- Dual USB4 40Gbps: Fast USB Type-C connectivity.
- 14+2+1 Power Design: Reliable power delivery for demanding workloads.
- Extended Heatsink Design: Advanced cooling for motherboard components.
- EZ M.2 Shield Frozr II: Convenient M.2 SSD installation and cooling.
- 64MB BIOS ROM: Increased firmware storage capacity.
- Audio Boost: Realtek ALC4080 7.1-channel audio.
- ATX Form Factor: Compatible with ATX-supported gaming cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MAG X870E TOMAHAWK MAX WIFI |
| Chipset | AMD X870E |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 |
| RAM Slots | 4 DIMM |
| Maximum RAM | 256GB |
| Memory Speed | Up to 8400+ MT/s (OC) |
| Memory Technology | AMD EXPO |
| Primary PCIe Slot | PCIe 5.0 x16 |
| Total M.2 Slots | 4 |
| M.2 Storage | 2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| Wireless Connectivity | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Ethernet | Realtek 5Gbps LAN |
| Rear USB4 | 2 × 40Gbps Type-C |
| Front USB-C Header | Up to 20Gbps |
| Display Outputs | HDMI 2.1, DisplayPort via USB4 |
| Audio | Realtek ALC4080, 7.1 Channel |
| Debug Features | EZ Debug LED, EZ Digit Debug LED |
| BIOS | 64MB ROM |
| Operating System | Windows 11 64-bit |
| Dimensions | 304.8 |
