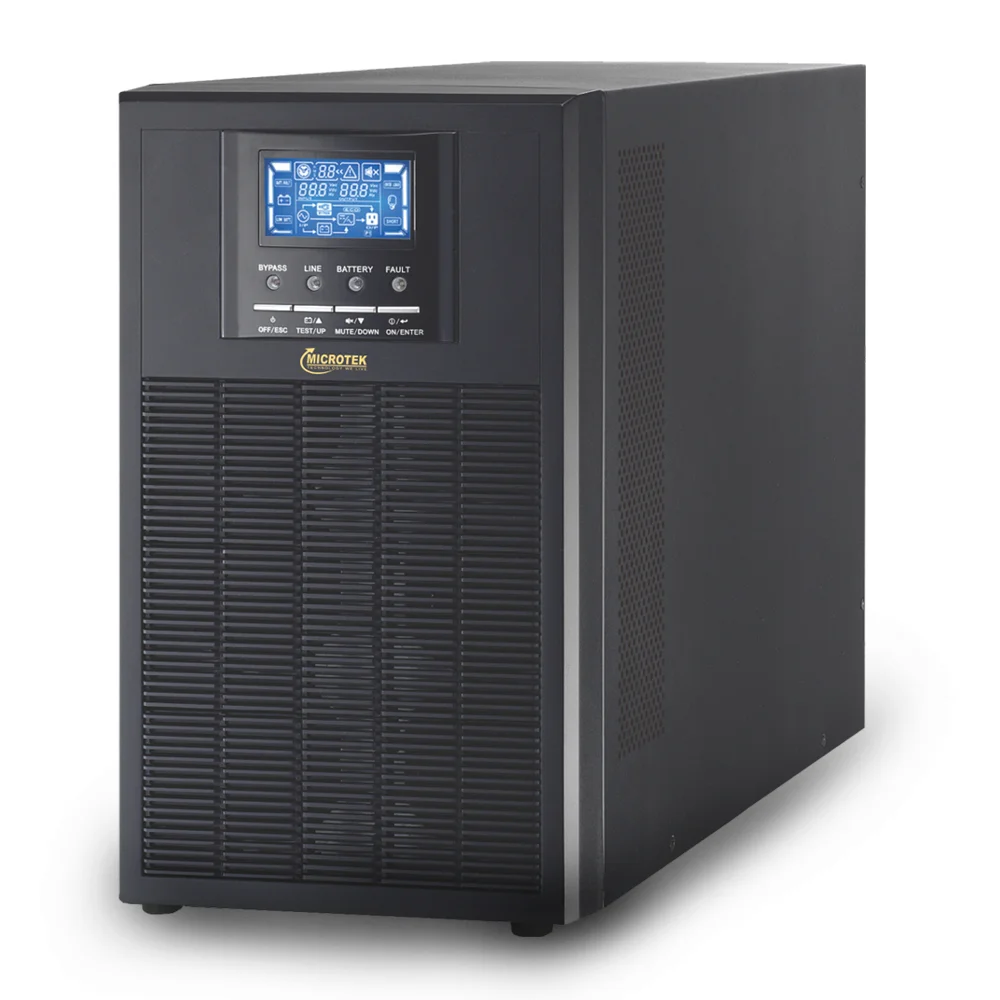

Microtek 3KVA/48V MAX LiFe Online UPS

Microtek 3KVA/48V MAX LiFe Online UPS – Powerful Lithium-Ion Compatible Power Backup

The Microtek 3KVA/48V MAX LiFe Online UPS is an advanced uninterruptible power supply designed to provide dependable electrical protection for professional computers, workstations, networking equipment and critical business applications. Featuring true double-conversion technology, a 1.0 unity output power factor, a powerful 60A inbuilt charger and compatibility with approved lithium-ion battery systems, this UPS offers efficient and reliable backup power for demanding environments.

With a rated capacity of 3000VA/3000W, the Microtek MAX LiFe Series delivers sine wave output, intelligent charging controls, LCD monitoring and flexible external battery options.

Developed by Microtek, this Online UPS can also support an approved lead-acid battery configuration, making it relevant for businesses evaluating different energy storage technologies.

True Double-Conversion Online UPS Technology

The Microtek 3KVA/48V MAX LiFe Online UPS uses true double-conversion technology to deliver regulated electricity to compatible electronic equipment.

Unlike conventional line-interactive UPS systems, an Online UPS supplies the connected load through its inverter during normal operation.

Incoming AC electricity is converted into DC and then converted back into regulated AC power.

This process helps protect connected devices against common mains disturbances such as voltage fluctuations and sudden power failures.

When the incoming electricity supply fails, the battery system continues supplying the inverter without the switching delay associated with traditional standby UPS systems.

Microtek specifies zero normal AC-to-battery transfer time, helping critical electronic equipment remain operational during mains interruptions.

3KVA/3000W Capacity with Unity Power Factor

The Microtek MAX LiFe 3KVA Online UPS offers a rated output of 3000VA and 3000W.

Its 1.0 output power factor means that the rated active power capacity equals the rated apparent power capacity.

This provides greater usable wattage than a 3KVA UPS rated at a 0.8 or 0.9 output power factor.

The 3000W capacity makes the product suitable for appropriately sized professional workstations, computers, networking systems and compatible IT equipment.

Before selecting the UPS, customers should calculate the combined power consumption of all connected equipment.

The load calculation should include continuous consumption, operating peaks and any relevant startup requirements.

Maintaining suitable operating headroom helps reduce overload risk and supports dependable performance.

Compatible with Lithium-Ion Battery Systems

One of the major advantages of the Microtek 3KVA/48V MAX LiFe Online UPS is its compatibility with approved lithium-ion battery systems.

The UPS operates using a 48V DC external battery arrangement.

Lithium-ion battery technology can offer benefits such as compact energy storage, efficient charging and potentially extended service life when compared with some conventional battery technologies.

However, not every lithium-ion battery labelled 48V is automatically compatible with the UPS.

The battery’s voltage range, charging requirements, discharge capability and Battery Management System (BMS) must be checked against the UPS specifications.

The selected lithium-ion battery pack should be approved for use with the particular UPS and charging configuration.

Proper battery selection is essential for safe and reliable power backup operation.

Optional 150Ah Flat Plate or Tubular Lead-Acid Battery Configuration

The Microtek MAX LiFe 3KVA UPS also provides flexibility for customers considering conventional lead-acid batteries.

An optional configuration uses four compatible 12V/150Ah flat plate or tubular batteries connected in series to provide a nominal 48V DC battery system.

This arrangement may be considered for installations where lead-acid battery technology is preferred.

However, Microtek specifies that a firmware update may be required for lead-acid battery operation.

Battery charging voltage, charging current and protective settings must be appropriate for the selected batteries.

Customers should obtain confirmation from Microtek or an authorized service professional before connecting lead-acid batteries.

Actual backup duration depends on load, battery capacity, battery condition, discharge characteristics, temperature and UPS efficiency.

Four batteries provide the required nominal voltage; the backup duration must still be evaluated separately.

Powerful 60 Amp Inbuilt Battery Charger

The Microtek 3KVA/48V MAX LiFe Online UPS features a powerful 60 Amp inbuilt battery charger.

This is a significant difference from the 1KVA and 2KVA MAX LiFe models, which use 20A maximum charging systems.

The 3KVA model supports selectable charging currents of 10A, 20A, 30A, 40A, 50A and 60A.

These settings can be configured through the supported LCD interface.

This flexibility allows the charging current to be matched to an approved external battery system.

The maximum 60A charging current should only be selected when the battery manufacturer permits it.

Higher charging current is not automatically suitable for every lithium-ion or lead-acid battery pack.

Correct charging configuration helps maintain battery readiness while reducing the risk of operating outside approved battery limits.

Adjustable Charging Voltage and Battery Protection

The Microtek MAX LiFe 3KVA UPS supports configurable battery charging voltage.

The manufacturer specifies a nominal float charging setting of 52V DC, configurable up to 58V DC through the LCD.

It also lists overcharge protection at 60V DC.

These parameters must be selected according to the installed battery’s chemistry, operating voltage range and manufacturer instructions.

For lithium-ion applications, the battery BMS must remain compatible with the charging behaviour of the UPS.

For lead-acid applications, the required firmware and charging adjustments must be completed before operation.

Installation by a qualified professional is recommended.

Sine Wave Output and Stable Voltage Regulation

The Microtek 3KVA/48V MAX LiFe Online UPS offers sine wave output technology designed for compatible electronic equipment.

Sine wave power is important for professional computing devices, modern power supplies and sensitive electrical loads.

The manufacturer specifies selectable nominal AC output voltages of 220V, 230V and 240V.

Battery-mode output voltage regulation is listed at approximately ±1%.

The technical datasheet specifies output harmonic distortion limits of 3% or less for linear loads and 5% or less for non-linear loads.

These characteristics help deliver regulated electricity under supported operating conditions.

Wide Input Voltage Range

The Microtek MAX LiFe 3KVA UPS is designed to accept a wide range of incoming mains voltages.

According to the manufacturer, the supported input voltage range is approximately 110–280V AC at 50% load and 176–280V AC at full load.

The supported input frequency ranges are 46–54Hz and 56–64Hz.

These specifications help the UPS manage varying mains conditions, subject to the actual electrical load and operating configuration.

A correctly installed UPS can therefore provide dependable power protection in locations experiencing irregular mains supply conditions.

LCD Display for Monitoring and Configuration

The Microtek 3KVA/48V MAX LiFe Online UPS features an LCD display for convenient system monitoring.

The display provides information about connected load level, battery level, AC mode, battery mode, bypass mode and fault conditions.

These indications help users monitor operating status and identify alerts.

The LCD interface also supports configurable battery charging current settings.

This makes it useful for system administrators, technicians and professional users responsible for managing UPS installations.

Optional Parallel Operation up to Nine Units

The Microtek MAX LiFe 3KVA Series supports optional parallel operation with up to nine compatible units, according to the manufacturer’s documentation.

This feature allows suitable power system configurations for supported single-phase and three-phase applications.

Microtek also describes support for a common 48V DC battery pack in an approved parallel system.

However, parallel UPS installations require appropriate wiring, synchronization, protection and manufacturer-approved configuration.

Multiple units should not simply be connected together without professional system design.

Customers should confirm whether the intended configuration is for increased capacity, redundancy or another approved operating arrangement.

Full-Bridge Inverter Design

The Microtek 3KVA MAX LiFe Online UPS includes a full-bridge inverter design.

Microtek describes this design as supporting compatible half-wave and unbalanced loads.

This capability can be useful for selected electronic applications where load characteristics are not perfectly balanced.

However, compatibility with particular equipment must still be evaluated against the UPS output rating and electrical specifications.

Specialized industrial, motor-driven or high-inrush equipment may require additional assessment before connection.

Cold Start and Generator Compatibility

The Microtek 3KVA/48V MAX LiFe Online UPS supports cold start capability.

Cold start allows supported UPS startup using a properly connected and sufficiently charged battery system when the incoming mains supply is unavailable.

The manufacturer also specifies generator compatibility.

This allows the UPS to be considered for installations where a suitable generator is used as an additional electricity source.

Generator capacity, output voltage and frequency stability should meet the UPS input requirements.

High Energy Efficiency

The Microtek MAX LiFe 3KVA UPS offers efficient power conversion.

Microtek specifies 95% efficiency in line mode, 99.5% efficiency in ECO mode and 92% efficiency in battery mode under its stated conditions.

Energy efficiency is important for organizations that operate UPS systems continuously.

Higher efficiency can reduce electrical losses and the heat generated during operation.

However, ECO mode and continuous double-conversion operation use different power paths.

The correct operating mode should be chosen based on the level of power conditioning required by the connected equipment.

Electrical Protection and Monitoring Interfaces

The Microtek MAX LiFe 3KVA Series includes overload and short-circuit protection.

These features help the UPS respond to electrical fault conditions within its specified operating limits.

The UPS also supports RS232 and USB communication for compatible monitoring applications.

Optional SNMP and MODBUS cards are listed for supported installations requiring additional communication functionality.

These interfaces can be useful for IT administrators managing business-critical power backup equipment.

Proper grounding, circuit protection, ventilation and installation practices remain essential.

Suitable for Offices, Servers and Networking Equipment

The Microtek 3KVA/48V MAX LiFe Online UPS can be considered for a range of professional IT environments.

Typical applications include compatible servers, computer workstations, network switches, routers, computer laboratories, business electronics and office IT infrastructure.

Its 3000W rating and flexible battery compatibility make it relevant to installations requiring reliable backup power.

For commercial projects, customers should evaluate total electrical load, required backup time, battery technology and maintenance needs before selecting a UPS.

Businesses can also explore the range of IT hardware, networking equipment and power backup solutions available from Aadinath Peripherals.

Compact UPS Cabinet with External Battery Flexibility

The Microtek MAX LiFe 3KVA Online UPS has a manufacturer-listed cabinet size of approximately 465 × 190 × 318 mm and a net weight of approximately 15.5kg, excluding external batteries.

The UPS is designed to connect to a compatible external battery bank.

The battery system must be installed securely with appropriate DC cables, polarity protection and electrical safeguards.

Adequate ventilation and suitable environmental conditions help support reliable operation.

Buy Microtek 3KVA/48V MAX LiFe Online UPS from Aadinath Peripherals

At Aadinath Peripherals & Consumables, we supply professional IT hardware, computers, networking equipment, UPS power backup systems and accessories for businesses and institutions.

Our team assists customers with UPS procurement, suitable battery selection, bulk quotations and infrastructure requirements.

For complete manufacturer information, review the official Microtek MAX LiFe 3KVA Online UPS specifications.

Customers can also explore our IT hardware and commercial power backup product range.

For product enquiries, battery compatibility, availability and bulk quotations, contact sales@aadinathperipherals.com or call +91 90760 00285.

Choose the Microtek 3KVA/48V MAX LiFe Online UPS (899-460-3001) for 3000W rated capacity, unity power factor, 60A configurable charging, lithium-ion battery compatibility and approved optional lead-acid battery support.

Technical Specifications
