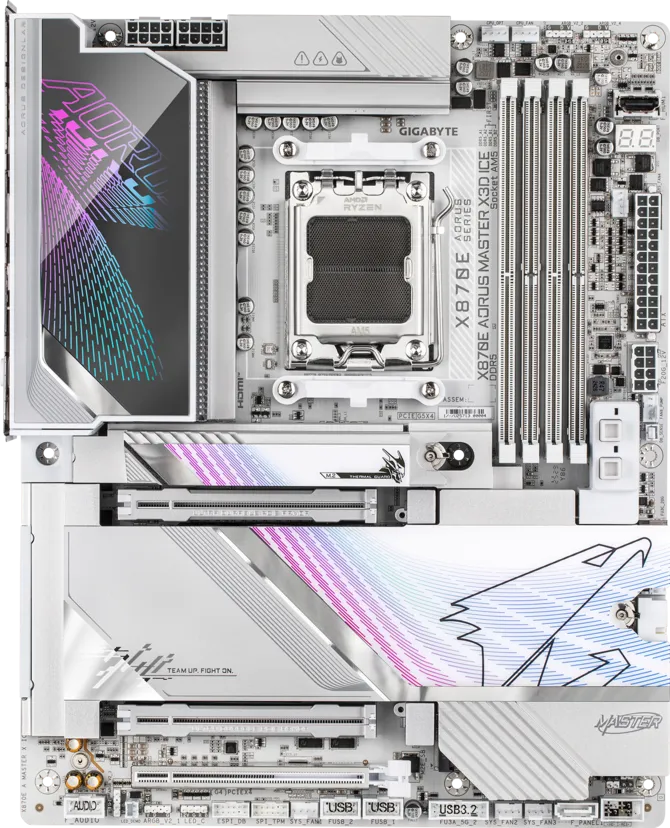

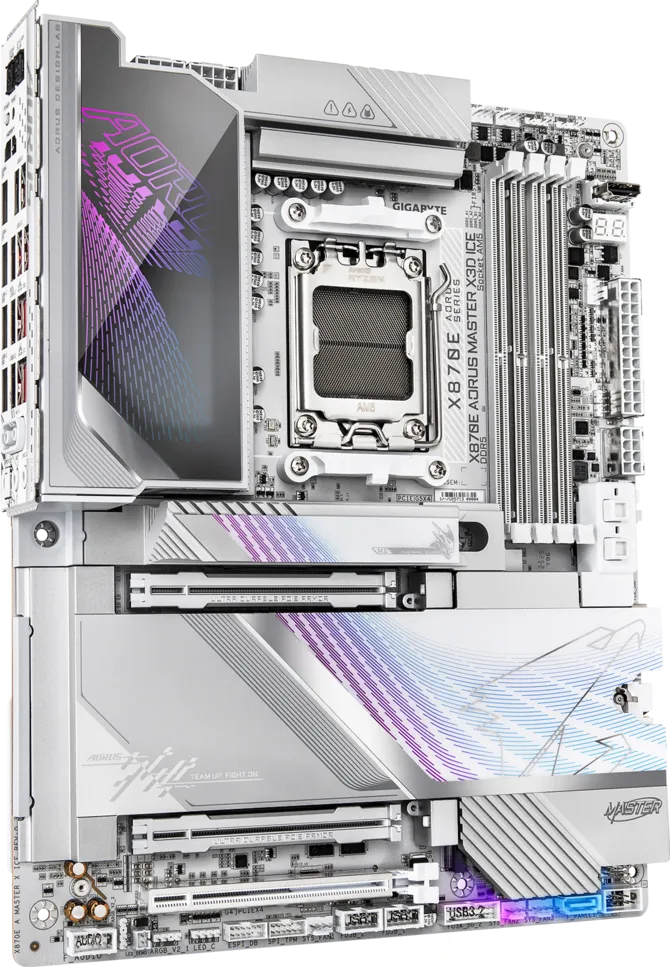

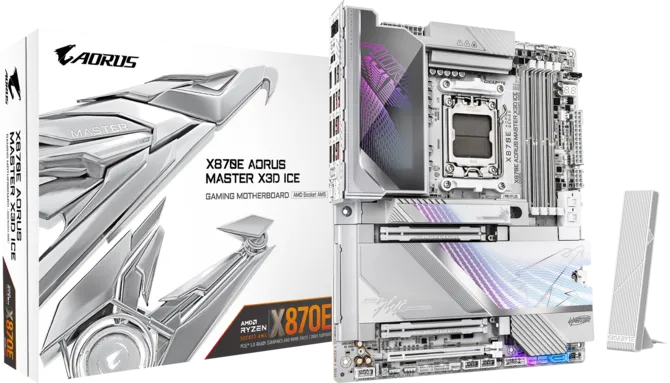

GIGABYTE X870E AORUS MASTER X3D ICE AMD X870E DDR5 AM5 WiFi 7 ATX Gaming Motherboard
The GIGABYTE X870E AORUS MASTER X3D ICE is a premium white ATX gaming motherboard featuring the AMD X870E chipset and AM5 socket. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, DDR5 memory up to 9000 MT/s (OC), PCIe 5.0 graphics, five M.2 SSD slots, WiFi 7, Bluetooth 5.4, dual 10GbE and 5GbE LAN, and USB4 40Gbps connectivity. Its X3D Turbo Mode 2 and advanced cooling make it ideal for enthusiast gaming and professional PC builds.
Product Enquiry
Interested in this product? Fill out the form below.
GIGABYTE X870E AORUS MASTER X3D ICE DDR5 AMD Motherboard
The GIGABYTE X870E AORUS MASTER X3D ICE Motherboard is a premium ATX gaming motherboard designed for AMD Ryzen desktop processors. Equipped with the AMD X870E chipset and AM5 socket, it supports AMD Ryzen 9000, 8000 and 7000 Series processors.
Featuring high-speed DDR5 memory, PCIe 5.0 expansion, X3D Turbo Mode 2, WiFi 7 connectivity and advanced thermal solutions, this motherboard delivers exceptional capabilities for high-performance gaming, content creation and professional computing.
Key Features
- AMD X870E Chipset: Premium platform designed for AMD Ryzen desktop processors.
- AMD AM5 Socket: Supports Ryzen 9000, 8000 and 7000 Series CPUs.
- DDR5 Memory: Four DIMM slots supporting up to 256GB RAM.
- Memory Overclocking: DDR5 speeds up to 9000 MT/s (OC).
- PCIe 5.0 Graphics: High-speed graphics expansion for compatible AMD processors.
- Five M.2 SSD Slots: Two PCIe 5.0 and three PCIe 4.0 storage connections.
- WiFi 7: Advanced wireless networking with 320MHz channel support.
- Bluetooth 5.4: Wireless connectivity for compatible accessories.
- Dual Ethernet: 10GbE and 5GbE LAN ports for ultra-fast wired connectivity.
- Dual USB4: Two rear USB Type-C ports supporting up to 40Gbps.
- 18+2+2 Digital VRM: Advanced processor power delivery.
- X3D Turbo Mode 2: Performance tuning technology for compatible AMD Ryzen processors.
- VRM Thermal Armor: Advanced motherboard cooling.
- M.2 Thermal Guard XL: Enhanced SSD cooling protection.
- M.2 EZ-Flex: Convenient SSD installation and thermal management.
- Smart Fan 6: Intelligent cooling and fan controls.
- Q-Flash Plus: Convenient BIOS updates.
- AMD EXPO & Intel XMP: Compatible DDR5 memory profile support.
- ICE Edition: Premium white-and-silver motherboard design.
- ATX Form Factor: Suitable for compatible gaming computer cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS |
| Model | X870E AORUS MASTER X3D ICE |
| Chipset | AMD X870E |
| CPU Socket | AMD AM5 |
| Processor Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM |
| Maximum RAM | 256GB |
| Memory Speed | Up to 9000 MT/s (OC) |
| Memory Profiles | AMD EXPO, Intel XMP |
| Primary Graphics Slot | PCIe 5.0 x16 |
| Secondary Expansion | PCIe 5.0 x8, PCIe 4.0 x4 |
| Total M.2 Slots | 5 |
| M.2 Storage | 2 × PCIe 5.0, 3 × PCIe 4.0 |
| SATA Ports | 2 × SATA 6Gb/s |
| WiFi | WiFi 7 |
| Bluetooth | 5.4 |
| Ethernet | 10GbE + 5GbE LAN |
| USB4 | 2 × USB Type-C, 40Gbps |
| Front USB-C | Up to 20Gbps, 65W PD support |
| Display Outputs | HDMI 2.1, DisplayPort via USB4 |
| Audio | Realtek ALC1220 + ESS ES9118 DAC |
| VRM Design | 18+2+2 Digital Power |
| BIOS Feature | Q-Flash Plus |
| Operating System | Windows 11 64-bit |
| Dimensions | 305 × 244 mm |
| Colour | White and Silver |
Why Choose GIGABYTE X870E AORUS MASTER X3D ICE?
The GIGABYTE X870E AORUS MASTER X3D ICE combines high-speed DDR5 memory, advanced PCIe 5.0 technology, premium cooling and next-generation networking in a stylish white-and-silver motherboard.
With five M.2 SSD slots, dual USB4 connectivity, 10GbE and 5GbE networking, and X3D Turbo Mode 2 performance tuning, it is an excellent foundation for premium gaming desktops, enthusiast PC builds and professional workstations.
Upgrade your gaming desktop with the GIGABYTE X870E AORUS MASTER X3D ICE Motherboard for powerful performance, premium connectivity and next-generation gaming technology.
