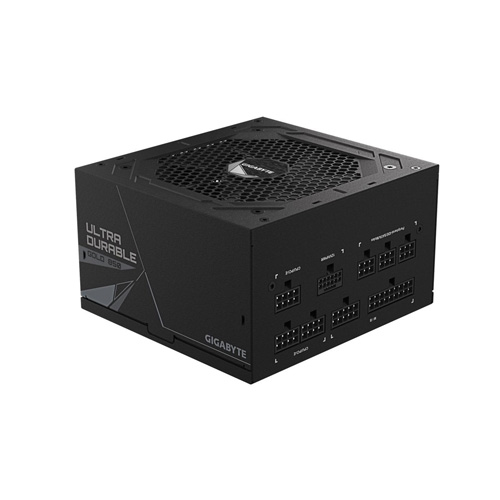

GIGABYTE UD850GM PG5 V2 850W 80 Plus Gold Certified Fully Modular Power Supply

GIGABYTE UD850GM PG5 V2 850W 80 Plus Gold Certified Fully Modular Power Supply

Overview

• Ultra Durable
  •  100% Japanese capacitors
  •  120mm smart hydraulic bearing (HYB) fan
  •  Optimized thermal solution
  •  OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP protection
• Intel ATX 3.1 and PCIe Gen 5.1 ready
• 80 PLUS Gold certified
• Cybenetics Platinum efficiency
• Fully modular design
• Powerful single 12V rail
• Compact size

Specifications

Model : GP-UD850GM PG5 V2
Type : Intel Form Factor ATX 12V v3.1
PFC : Active PFC (>0.9 typical)
Input Voltage : 100-240 Vac (full range)
Input Current : 15-6.5A
Input Frequency : 60-50 Hz
Output Capacity : 850W
Dimensions : 150 x 140 x 86 mm
Fan Type : 120mm Hydraulic Bearing(HYB) Fan
80 PLUS : Gold
Efficiency : 90% at typical load
MTBF : >100,000 hours
Protections : OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal : 100-150ms
Hold Up Time : >16ms
Cable Type : Embossed, All black

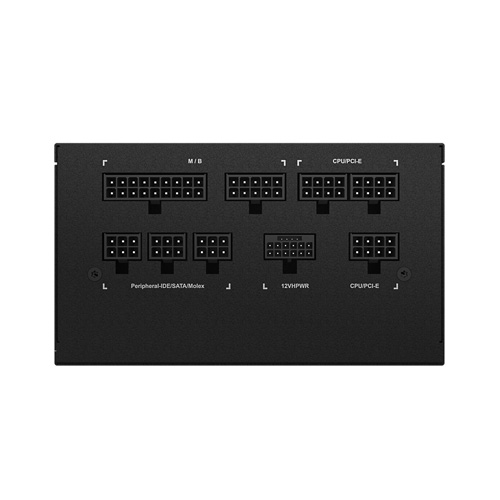

Connectors
ATX/MB 20 4 Pin x 1 : 610mm*1
CPU/EPS 4 4 Pin x 2 : 650mm 200mm*1
PCI-e 6 2 Pin x 4 : 600mm 150mm*2
PCI-e 12 4 Pin x 1:700mm*1
SATA x 8 : 600mm 150mm 150mm 150mm*2
4 Pin Peripheral x 3 4-Pin Floppy x 1 : 500mm 150mm 150mm 150mm*1
