Gigabyte B860 EAGLE WIFI6E LGA 1851 ATX Motherboard
Original price was: ₹32,840.₹20,300Current price is: ₹20,300.
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
3 in stock
Product Enquiry
Interested in this product? Fill out the form below.
Gigabyte B860 EAGLE WIFI6E LGA 1851 ATX Motherboard
Overview
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Digital Twin VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Wi-Fi EZ-Plug
The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install.
2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.
PCIe UD Slot
The reinforced PCIe UD slot features Gigabyte’s one-piece stainless steel shielding design, providing the extra strength required to support heavy graphics cards. The UD power connector enhances power conductivity and thermal dissipation. The solid pins deliver optimal conductivity and signal transmission and reduce metal wear from repeated connections.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
Specifications
| CPU | |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
|

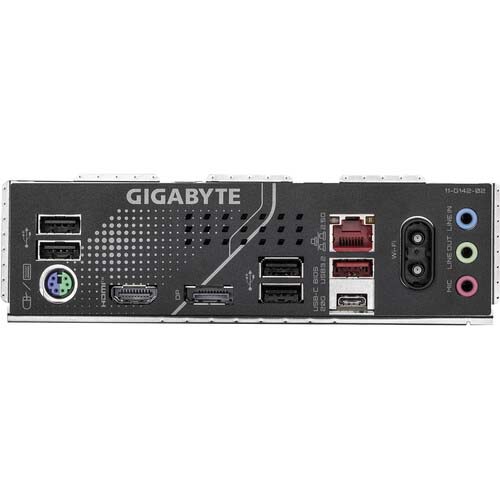

Back Panel I/O |
|
| USB | 1x USB-C (USB 3.2 Gen 2×2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0) |
| Thunderbolt | No |
| Display | 1x DisplayPort Output 1x HDMI Output |
| Audio | 3x 1/8″ / 3.5 mm |
| Ethernet / Controller | 1x Realtek 2.5Gigabit |
| Wi-Fi Antenna | 1x Connector |
|
Memory |
|
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s |
| Maximum Capacity | 256 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
|
Storage Expansion |
|
| SATA | 4x SATA III |
| Storage Slots | 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
|
Internal I/O |
|
| Expansion Slots | 1x PCIe 5.0 x16 2x PCIe 4.0 x1 |
| USB | 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU 3x 4-Pin System |
| Liquid Cooling | 2x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard 1x 8-Pin CPU |
| Security | TPM Header |
| LED Header | 4x RGB |
| Audio | No |
| Diagnostics | Clear CMOS, Flash BIOS, Reset |
|
BIOS |
|
| ROM | 256 Mb |
|
Front Panel I/O |
|
| Front Panel I/O | USB 3.1/3.2 Gen 2 |
|
Audio |
|
| Audio Codec | Realtek (7.1-Channel) |
| DAC | No |
|
Wireless |
|
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Bluetooth | 5.3 |
|
Software |
|
| OS Compatibility | Windows 11 (64-Bit Only) |
|
Physical |
|
| Form Factor | ATX |
