Gigabyte B450M K DDR4 M-ATX Motherboard
Gigabyte B450M K is a reliable AMD AM4 Micro ATX motherboard powered by the AMD B450 chipset. Supports compatible AMD Ryzen 5000, Ryzen 5000 G-Series, Ryzen 4000 G-Series and earlier Ryzen processors. Features dual-channel DDR4 memory up to 3600MHz, 64GB maximum RAM, PCIe 3.0 x16 graphics support, M.2 NVMe SSD connectivity and Gigabit LAN. Equipped with Smart Fan 5, HDMI 2.0, high-quality audio capacitors, anti-sulfur resistors and GIGABYTE APP Center. Ideal for gaming, office desktops and everyday computing. Includes a 3-year warranty.
Product Enquiry
Interested in this product? Fill out the form below.
Gigabyte B450M K DDR4 M-ATX Motherboard
Overview
AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, ​PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design​
Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors​
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
GbE LAN with Bandwidth Management​
8-Channel HD Audio with High Quality Audio Capacitors​
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers​
GIGABYTE APP Center, Simple and Easy Use​
Specifications
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G |
| Chipset | B450 |
| Memory Speed | up to 3600 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16* * Actual support may vary by CPU. Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 |

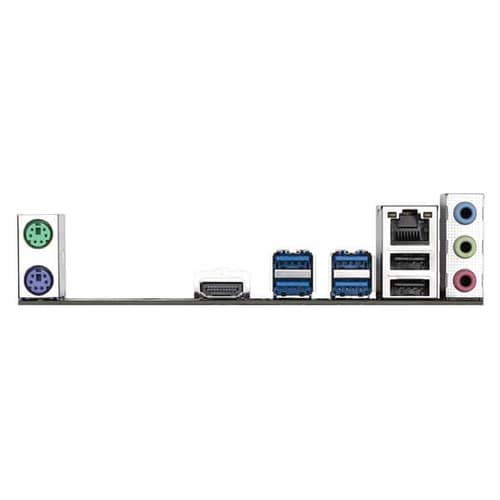

| Back Panel I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI 2.0 port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
