Antec FLUX REAR

Antec FLUX REAR Mid Tower PC Case with 5 PWM Fans

Build a powerful, neatly organised PC with the Antec FLUX REAR Mid Tower PC Case. Combining a wood-accented mesh front panel, five pre-installed PWM fans and a dedicated GPU airflow layout, this cabinet offers practical cooling features for gaming systems, creative workstations and everyday performance builds.

Contact Aadinath Peripherals and Consumables for Antec FLUX REAR pricing, availability and assistance with your PC configuration.

F-LUX Airflow Platform for GPU Cooling

Antec’s F-LUX platform—short for Flow Luxury—uses multiple ventilation paths to move air through the chassis. Front mesh intake, bottom openings, lower-side ventilation and top exhaust vents help supply fresh air to internal components.

The front-mounted PSU chamber creates additional space beneath the graphics card. Two included reverse PWM fans direct air towards the GPU, while the front fans provide horizontal airflow through the case.

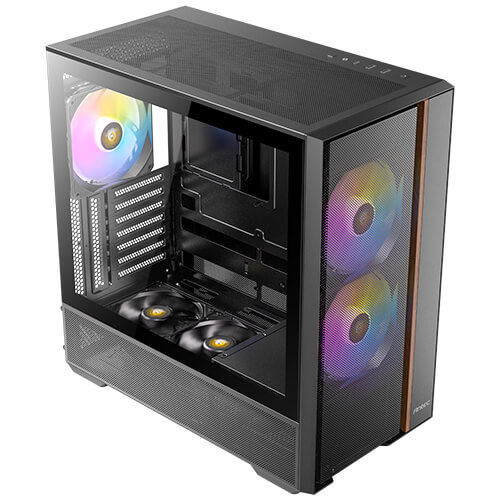

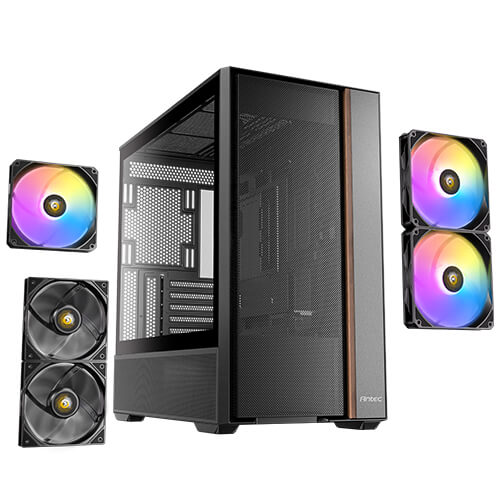

Five Pre-Installed PWM Fans

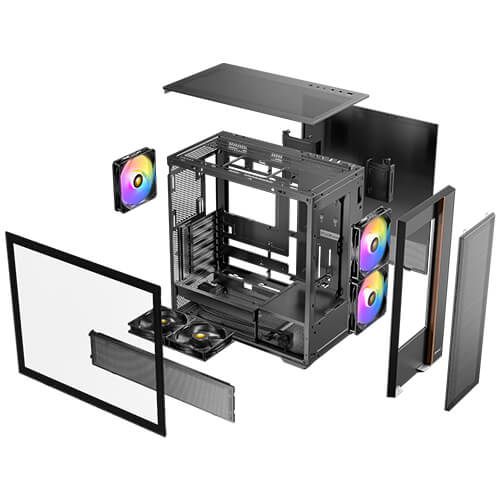

The Antec FLUX REAR includes five fans:

• Front: Two 140mm ARGB PWM fans.
• Bottom / PSU shroud: Two 120mm PWM reverse fans.

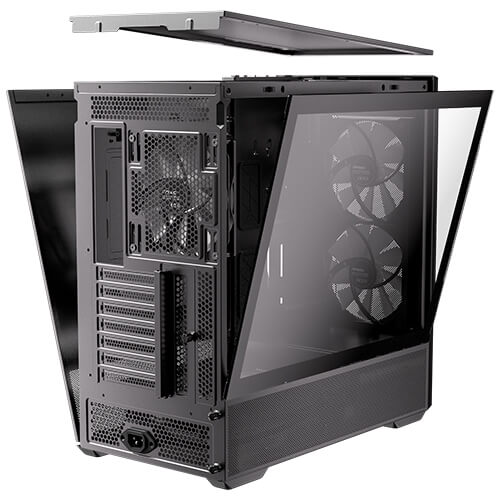

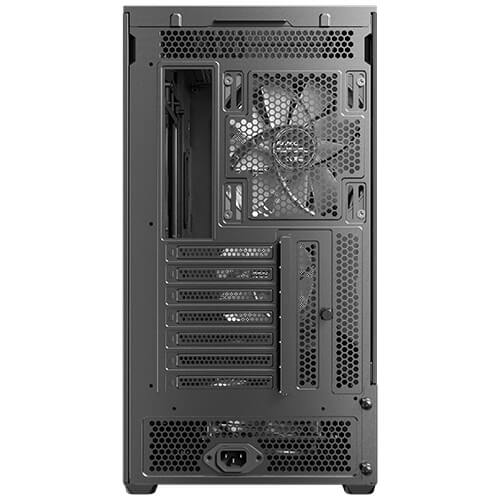

• Rear: One 140mm ARGB PWM fan.

PWM control allows fan speeds to be adjusted through compatible motherboard headers or controllers. The three ARGB fans add lighting to complement your build.

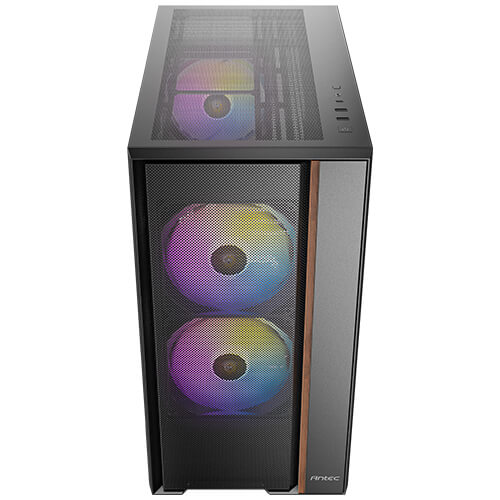

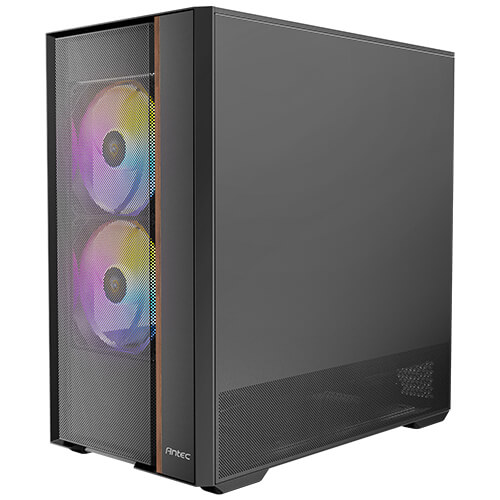

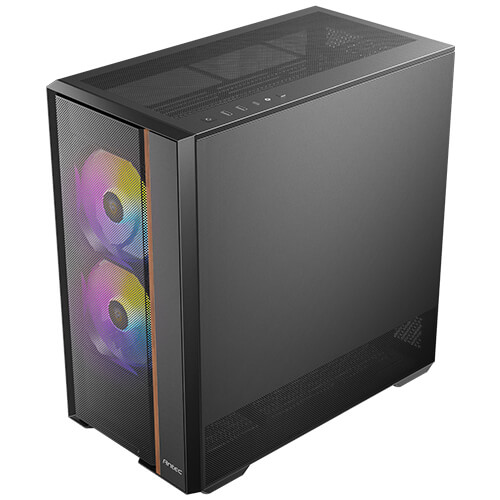

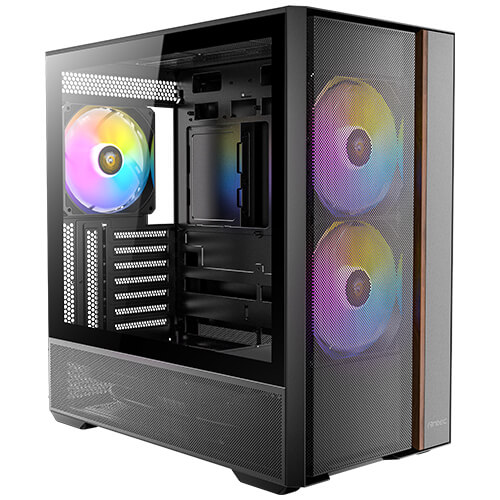

Wood-Accented Front and Tempered Glass Side Panel

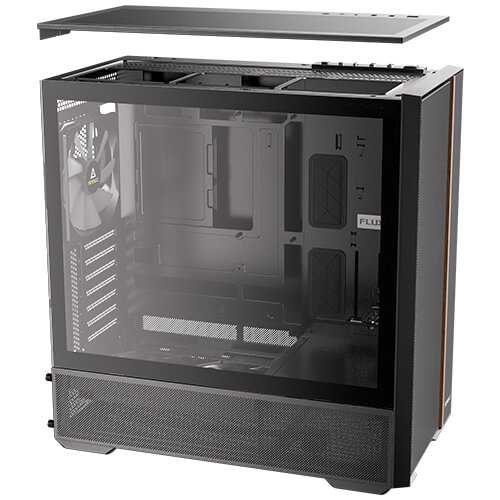

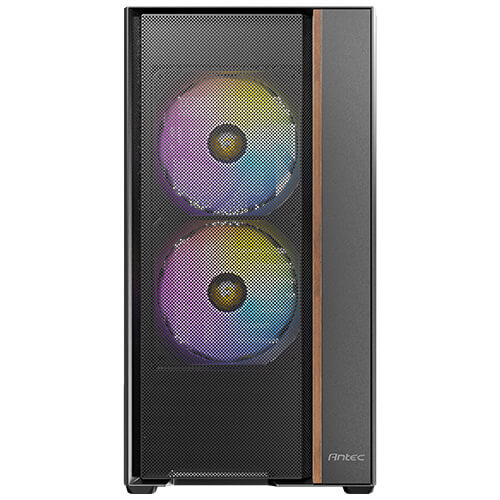

A combination of metal mesh and wood gives the front panel a distinctive appearance while preserving ventilation. The 4mm tempered glass side panel displays your components, lighting and cable arrangement.

The recessed front design supports airflow and is designed to help reduce operating noise.

Support for a Top-Mounted 360mm Radiator

The chassis accommodates a 360mm liquid-cooling radiator at the top, giving you flexibility when selecting a compatible CPU cooler. It also supports smaller top radiators and a 120mm rear radiator.

Rear fan compatibility depends on the top radiator configuration:

• A 140mm rear fan is supported with radiator thickness up to 55mm.
• A 120mm rear fan is supported with radiator thickness between 55mm and 70mm.

Check radiator, fan and motherboard clearance together before installation.

Spacious Component Compatibility

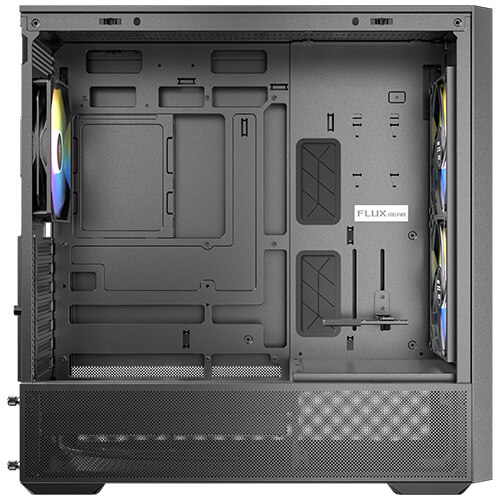

The Antec FLUX REAR supports ATX, Micro-ATX and ITX motherboards, graphics cards up to 400mm, CPU air coolers up to 180mm and power supplies up to 170mm, excluding cables.

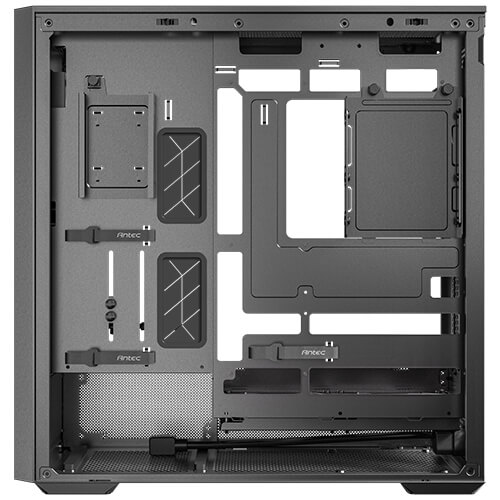

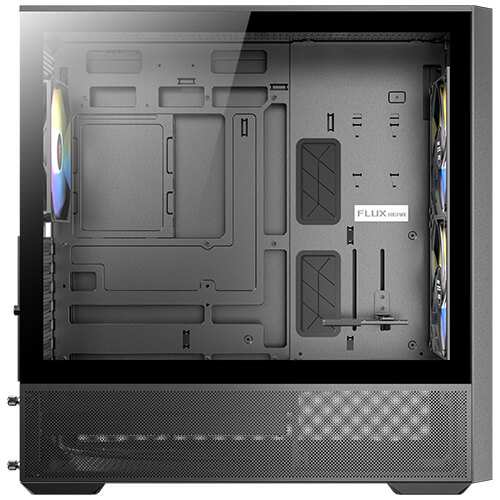

A built-in GPU support bracket helps support larger graphics cards. Compatibility with suitable back-connect motherboards allows cables to be routed behind the board for a cleaner interior.

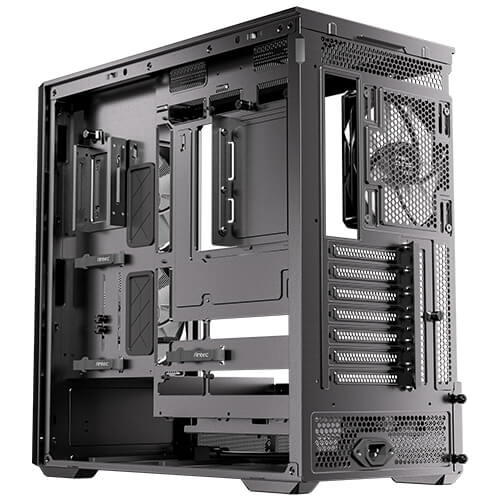

Front-Mounted PSU and Organised Cable Routing

The front-mounted power supply chamber helps preserve the bottom airflow path. An included 13A PSU extension cable accommodates the chassis layout.

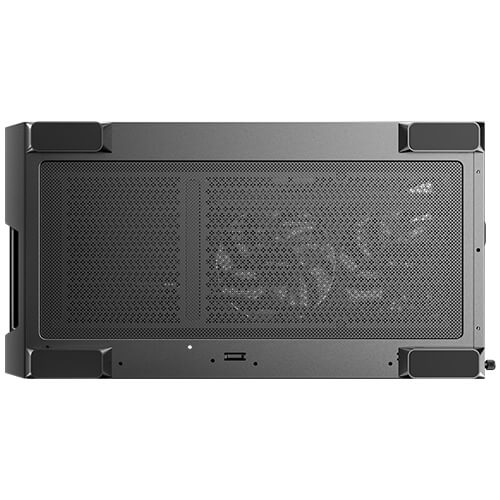

Cable-routing grommets and Velcro straps help keep wiring organised, while the bottom dust filter provides a convenient maintenance point.

USB-C and Convenient Front Connectivity

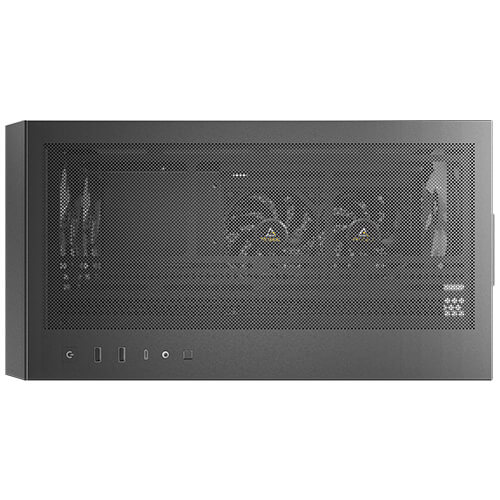

The front I/O panel provides USB Type-C 3.2 Gen 2 connectivity at up to 10Gbps, two USB 3.0 ports and a combined headphone/microphone jack. Power and reset buttons are also included.

Antec FLUX REAR Technical Specifications
