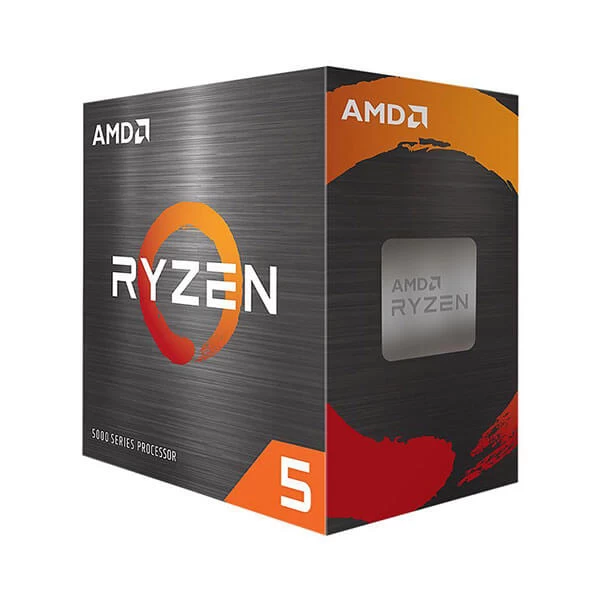

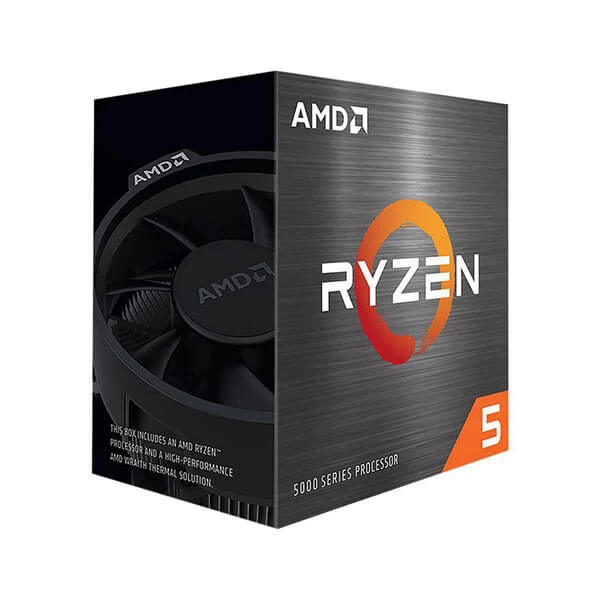

AMD Ryzen 5 5500 Desktop Processor (6 Cores/12 Threads/3.6GHz) 100-100000457BOX
A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzen™ processor.
Product Enquiry
Interested in this product? Fill out the form below.
AMD Ryzen 5 5500 Desktop Processor (6 Cores/12 Threads/3.6GHz) 100-100000457BOX
Overview :
AMD StoreMI Technology
A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzen™ processor.
AMD “Zen 3” Core Architecture
The fastest cores in the world for PC gamers.
AMD Ryzen™ VR-Ready Premium
For the best possible VR experiences, AMD offers select Ryzen™ VR-Ready Premium processors.
Specification :
| Platform | Desktop |
| Product Line | AMD Ryzen™ 5 Desktop Processors |
| Former Codename | Cezanne |
| Architecture | Zen 3 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.2GHz |
| Base Clock | 3.6GHz |
| Total L1 Cache | 384KB |
| Total L2 Cache | 3MB |
| Total L3 Cache | 16MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570 |
| X470 | |
| X370 | |
| B550 | |
| B450 | |
| B350 | |
| A520 | |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 90°C |
| Launch Date | 04-04-2022 |
| *OS Support | Windows 11 – 64-Bit Edition |
| Windows 8.1 – 64-Bit Edition | |
| RHEL x86 64-Bit | |
| Ubuntu x86 64-Bit | |
| *Operating System (OS) support will vary by manufacturer. | |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 4 (40Gbps) Ports | 0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) | 24/20 |
| Additional Usable PCIe Lanes from Motherboard | |
| AMD X570 | 16x Gen 3 |
| AMD X470 | 2x Gen 3 |
| AMD X470 | 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| System Memory Specification | Up to 3200MHz |
| Max Memory Speed | |
| 2x1R | DDR4-3200 |
| 2x2R | DDR4-3200 |
| 4x1R | DDR4-2933 |
| 4x2R | DDR4-2667 |
| ECC Support | No |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Product ID Boxed | 100-100000457BOX |
| Product ID Tray | 100-000000457 |
| Key Features | |
| Supported Technologies | AMD StoreMI Technology |
| AMD “Zen 3” Core Architecture | |
| AMD Ryzen™ VR-Ready Premium |
| Weight | 2 kg |
|---|---|
| brand | AMD |
| processor-series | Ryzen 5000 |
| product-category | CPU (Processor) |
| processor-cache | 16 MB |
| processor-cores | 6-Core |
| processor-threads | 12 |
| processor-frequency | 3.6 GHz |
| processor-socket-type | AMD AM4 |
| warranty | 3 Years |
